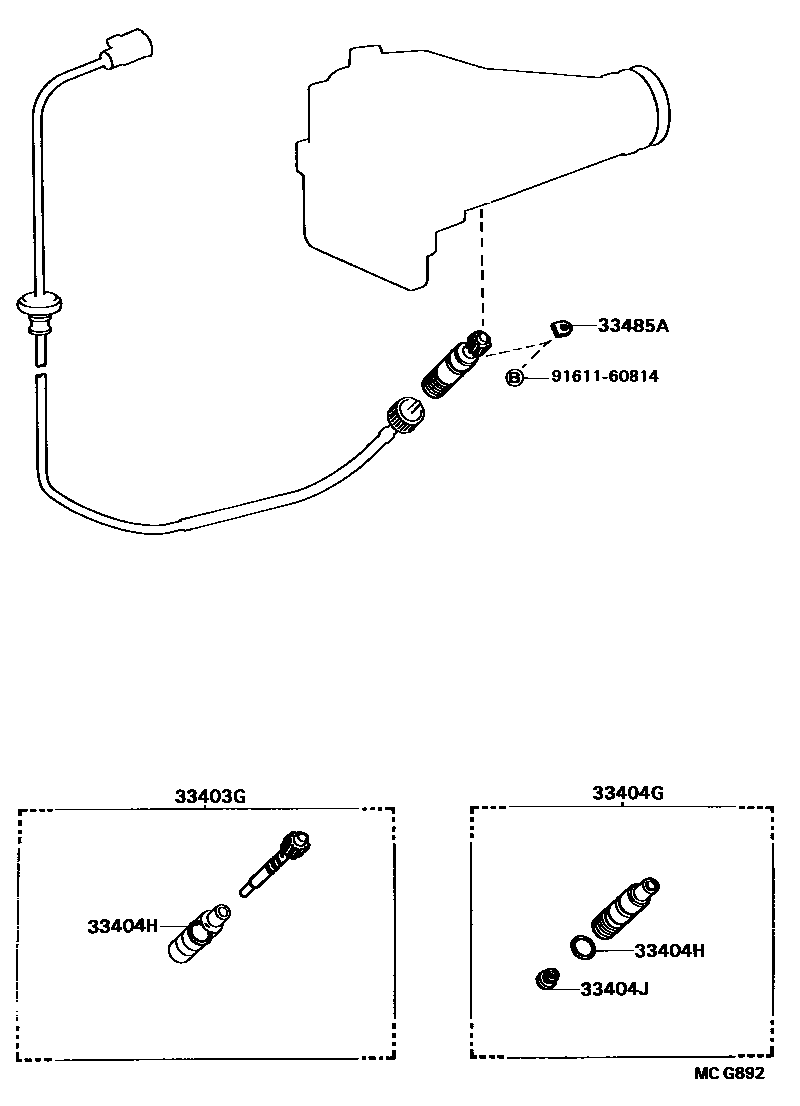

SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-29105iYR21..4FC198808-199001

N=22,MARK 22:6

main33482-39315iYR22..4FC198808-199001

N=21,MARK 21:6

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-30040iYR2#..4FC198808-199001

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iYR2#..4FC198808-199001

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iYR2#..4FC198808-199001

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iYR2#..4FC198808-199001

9161160814

main91611-60814

6 parts on this diagram · 1 diagram in section
