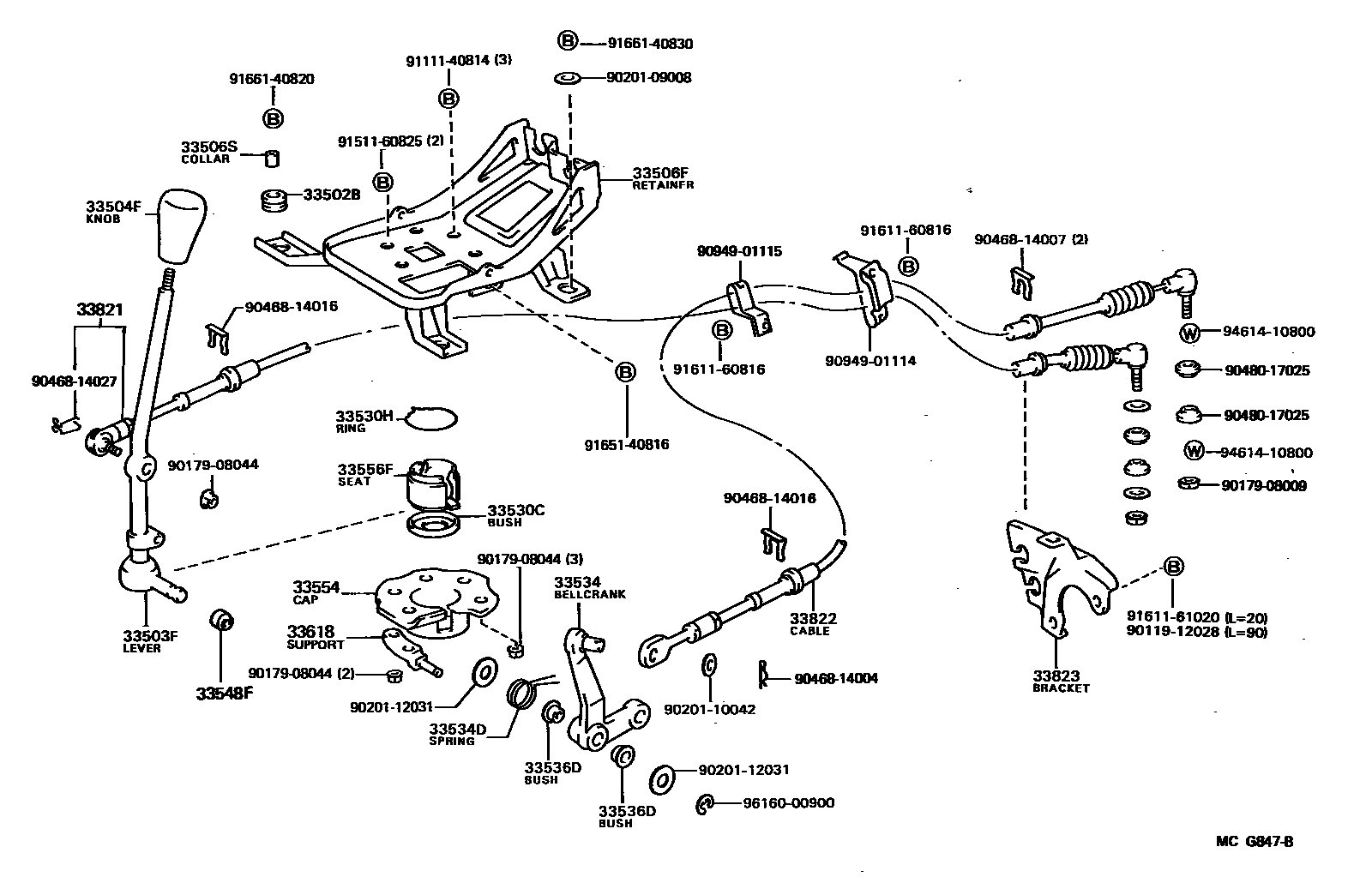

SHIFT LEVER & RETAINER

0001 1 0002 1

33502PLATE SUB-ASSY, SHIFT LEVER

main33502-28080iYR21..4FC198808-199001

main33502-28090iYR22..4FC198808-199001

33502BGROMMET (FOR SHIFT LEVER PLATE)

main90480-13012iYR2#,31198808-199001

33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)

main33055-28010iYR2#,31..LHD..5F198808-199001

main33501-28070iYR21..RHD..5F198808-199001

main33501-28120iYR21..4FC198808-199001

main33503-28210iYR22..4FC198808-199001

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-24010-20iYR2#,31..5F198808-199001

GRAY,TRIM1#

sub33504-24010

main33504-24010-59iYR2#,31..5F..GL198808-199001

BROWN,TRIM4#

sub33504-24010

main33542-32040-03iYR21..4FC198808-199001

SHADOW GRAY,TRIM1#

sub33542-32040

main33542-32040-26iYR21..4FC198808-199001

BROWN,TRIM4#

sub33542-32040

main33542-32050-03iYR22..4FC198808-199001

SHADOW GRAY,TRIM1#

sub33542-32050

main33542-32050-26iYR22..4FC198808-199001

BROWN,TRIM4#

sub33542-32050

33506FRETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT)

main33506-28120iYR21..RHD..5F198808-199001

main33506-28140iYR2#,31..LHD..5F198808-199001

33506SCOLLAR, NO.1(FOR CONTROL SHIFT LEVER RETAINER)

main90387-09011iYR2#,31..5F198808-199001

33530CBUSH (FOR SHIFT LEVER)

main90385-24001iYR2#,31..5F198808-199001

33530HRING, SNAP (FOR SHIFT LEVER)

main90520-34002iYR2#,31..5F198808-199001

33534BELLCRANK, SELECTING

main33534-28050iYR2#,31..5F198808-199001

33534DSPRING, TORSION (FOR SELECTING BELLCRANK NO.1)

main90508-28001iYR2#,31..5F198808-199001

33536DBUSH, CONTROL SELECT LEVER SHAFT (FOR FLOOR SHIFT)

main90386-12013iYR2#,31..5F198808-199001

33548FBUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)

main33548-12021iYR2#,31..5F198808-199001

33554CAP, SHIFT LEVER

main33554-28060iYR2#,31..5F198808-199001

33556FSEAT, TRANSMISSION SHIFT LEVER BALL

main33556-20020iYR2#..5F198808-199001

33618SUPPORT, SELECTING BELLCRANK, NO.1

main33618-28030iYR2#,31..5F198808-199001

33821CABLE TRANSMISSION CONTROL SHIFT (FOR FLOOR SHIFT)

main33821-28060iYR2#,31..5F198808-199001

sub33821-28061

33822CABLE TRANSMISSION CONTROL SELECT (FOR FLOOR SHIFT)

main33822-28060iYR2#,31..5F198808-199001

sub33822-28061

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-28010iYR2#..4FC198808-199001

main33823-28020iYR2#..5F198808-199001

main33823-28080iYR31198808-199001

9011912028

main90119-12028

9017908009

main90179-08009

9017908044

main90179-08044

9020109008

main90201-09008

9020110042

main90201-10042

9020112031

main90201-12031

9046814004

main90468-14004

9046814007

main90468-14007

9046814016

main90468-14016

9046814027

main90468-14027

9048017025

main90480-17025

9094901114

main90949-01114

9094901115

main90949-01115

9111140814

main91111-40814

9151160825

main91511-60825

9161160816

main91611-60816

9161161020

main91611-61020

9165140816

main91651-40816

9166140820

main91661-40820

9166140830

main91661-40830

9461410800

main94614-10800

9616000900

main96160-00900

40 parts on this diagram · 2 diagrams in section
