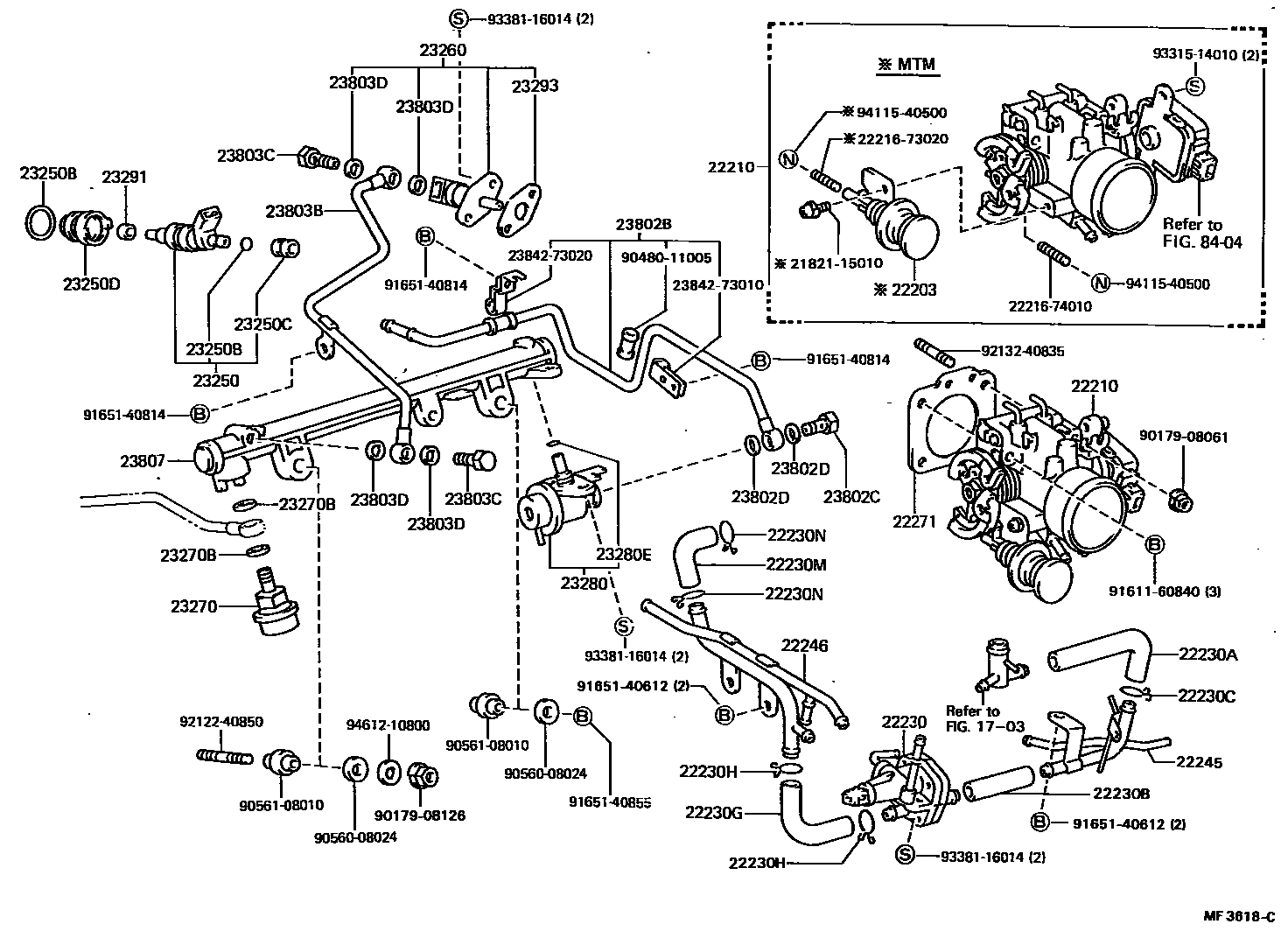

FUEL INJECTION SYSTEM
1703
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22230VALVE ASSY, AUXILIARY AIR
22230AHOSE, AUXILIARY AIR VALVE, NO.1
22230BHOSE, AUXILIARY AIR VALVE, NO.2
22230CCLIP, AUXILIARY AIR VALVE HOSE, NO.1
22230GHOSE, AUXILIARY AIR VALVE, NO.3
22230HCLIP, AUXILIARY AIR VALVE HOSE, NO.3
22230MHOSE, AUXILIARY AIR VALVE, NO.4
22230NCLIP, AUXILIARY AIR VALVE, NO.4
22245PIPE, AUXILIARY AIR, NO.2
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
DELIVERY PIPE SIDE
DELIVERRY PIPE SIDE
SWEDEN SPEC,DELIVERRY PIPE SIDE
MANIFOLD SIDE
23250CGROMMET(FOR FUEL INJECTOR)
23250DSPACER(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270DAMPER ASSY, FUEL PRESSURE PULSATION
sub23270-50010
23270BGASKET(FOR PULSATION DAMPER HOSE)
PIPE SIDE
23280REGULATOR ASSY, FUEL PRESSURE
SWEDEN SPEC
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23802BPIPE SUB-ASSY, FUEL, NO.2
23802CBOLT, UNION(FOR FUEL PIPE NO.2)
23802DGASKET(FOR FUEL PIPE NO.2)
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
sub90430-08014
23807PIPE SUB-ASSY, FUEL DELIVERY
8404
2182115010SCREW, 2ND THROTTLE VALVE SET
main21821-15010
2221673020SCREW, DASH POT ADJUSTING
main22216-73020
2221674010SCREW, DASH POT ADJUSTING
main22216-74010
2384273010CLAMP, FUEL PIPE(HOSE), NO.2
main23842-73010
2384273020CLAMP, FUEL PIPE(HOSE), NO.2
main23842-73020
9017908061
main90179-08061
9017908126
main90179-08126
9048011005
main90480-11005
9056008024
main90560-08024
9056108010
main90561-08010
9161160840
main91611-60840
9165140612
main91651-40612
9165140814
main91651-40814
9165140855
main91651-40855
9212240850
main92122-40850
9213240835
main92132-40835
9331514010
main93315-14010
9338116014
main93381-16014
9411540500
main94115-40500
9461210800
main94612-10800
53 parts on this diagram · 3 diagrams in section
