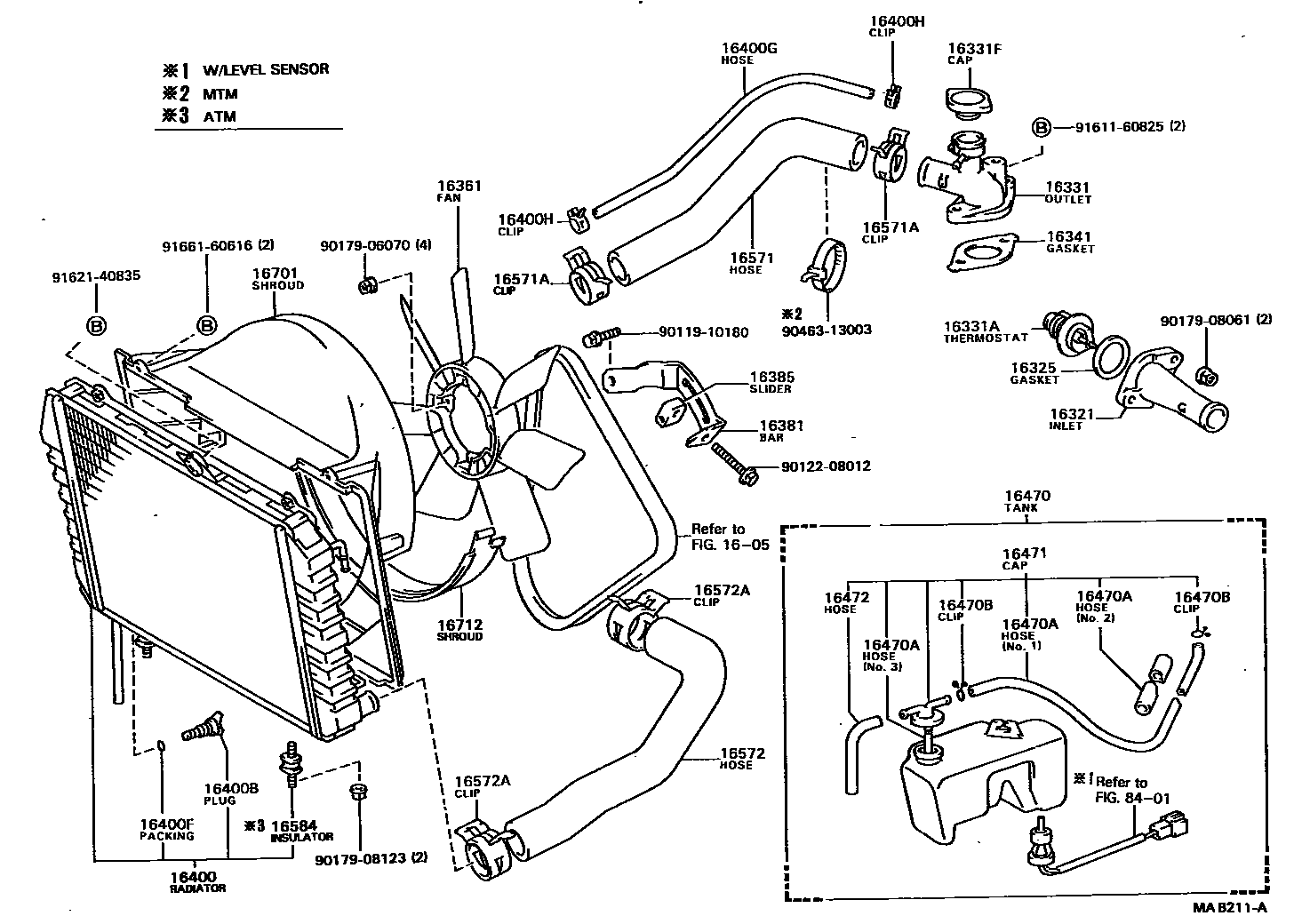

RADIATOR & WATER OUTLET

0001 1 0002 1

1605

16321INLET, WATER

main16321-71010i3Y,4YEC..YR2#,31198808-199001

16325GASKET, WATER INLET HOUSING, NO.1

main16325-63010i3Y,4YEC..YR2#,31198808-199001

sub16325-63011

16331OUTLET, WATER

main16304-71010i3Y..YR21198808-199001

main16304-73010i4YEC..YR22,31198808-199001

16331ATHERMOSTAT

main90916-03069i3Y,4YEC..YR2#,31198808-199001

*WAX 82-95

sub90916-03046

16331FCAP SUB-ASSY(FOR WATER OUTLET)

main16401-15210i3Y,4YEC..YR2#,31198808-199001

TOYO

main16401-63010i3Y,4YEC..YR2#,31198808-199001

DENSO

16341GASKET, WATER OUTLET

main16341-71010i3Y,4YEC..YR2#,31198808-198912

sub16341-71011

main16341-71011i3Y,4YEC..YR2#,31198912-199001

16361FAN

main16361-38010i3Y..YR21198808-199001

main16361-73030i4YEC..YR22,31198808-199001

16381BAR, FAN BELT ADJUSTING

main16381-73011i3Y,4YEC..YR2#,31198808-199001

16385SLIDER, FAN BELT ADJUSTING

main16385-71010i3Y,4YEC..YR2#,31198808-199001

16400RADIATOR ASSY

main16400-72071i3Y..YR21..5F198808-199001

sub16400-72230

main16400-73051i3Y..YR21..4FC198808-199001

sub16400-73121

main16400-73150i4YEC..YR22..5F198808-199001

sub16400-73160

main16400-73160i4YEC..YR22..4FC198808-199001

main16400-73170i4YEC..YR31198808-199001

sub16400-73190

16400BPLUG, RADIATOR DRAIN COCK

main16417-24200i3Y,4YEC..YR21,31..5F198808-199001

main90910-09054i4YEC..YR22;3Y..YR21..4FC198808-199001

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16418-24200i3Y,4YEC..YR21,31..5F198808-199001

main96711-19007i4YEC..YR22;3Y..YR21..4FC198808-199001

16400GHOSE(FOR RADIATOR BREATHER)

main99555-10500i4YEC..YR31198808-199001

L=500

main99556-10400i3Y,4YEC..YR2#198808-199001

*H,L=400

sub99556-10460

16400HCLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)

main90467-13001i3Y,4YEC..YR2#,31198808-199001

sub96135-51300

16470TANK ASSY, RADIATOR RESERVE

main16470-73012i3Y,4YEC..YR2#,31198808-199001

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main85338-73010i3Y,4YEC..YR2#,31198808-199001

NO.1

main85338-73030i3Y,4YEC..YR2#,31198808-199001

L=400,NO.2

main90445-12078i3Y,4YEC..YR2#,31198808-199001

L=600(*H,L=105),NO.3

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i3Y,4YEC..YR2#,31198808-199001

16471CAP SUB-ASSY, RESERVE TANK

main16471-73012i3Y,4YEC..YR2#,31198808-199001

16472HOSE, BREATHER

main85338-30010i3Y,4YEC..YR2#,31198808-199001

16571HOSE, RADIATOR, INLET

main16571-71040i3Y,4YEC..YR2#198808-199001

main16571-73050i4YEC..YR31198808-199001

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-37001i3Y,4YEC..YR2#,31198808-199001

sub90467-37003

16572HOSE, RADIATOR, OUTLET

main16572-71010i3Y,4YEC..YR2#198808-199001

main16572-73040i4YEC..YR31198808-199001

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-37001i3Y,4YEC..YR2#,31198808-199001

sub90467-37003

16584INSULATOR, RADIATOR MOUNTING

main17853-38010i4YEC..YR22;3Y..YR21..4FC198808-199001

16701SHROUD SUB-ASSY, FAN

main16711-71010i3Y..YR21..5F198808-199001

main16711-73020i4YEC..YR22;3Y..YR21..4FC198808-199001

main16711-73040i4YEC..YR31198808-199001

16712SHROUD, FAN, NO.2

main16712-71010i3Y,4YEC..YR2#198808-199001

main16712-73020i4YEC..YR31198808-199001

8401

9011910180

main90119-10180

9012208012

main90122-08012

9017906070

main90179-06070

9017908061

main90179-08061

9017908123

main90179-08123

9046313003

main90463-13003

9161160825

main91611-60825

9162140835

main91621-40835

9166160616

main91661-60616

37 parts on this diagram · 2 diagrams in section
