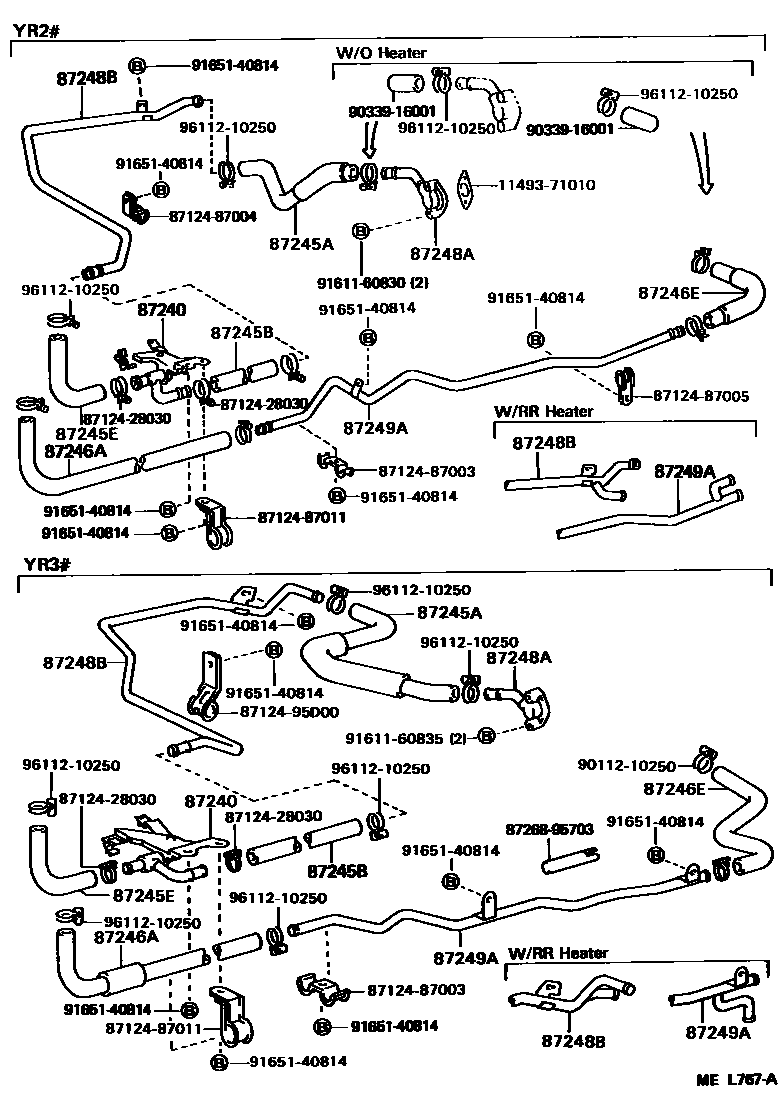

HEATING & AIR CONDITIONING - WATER PIPING

0001 1FRONT 0002 1REAR

87240VALVE ASSY, HEATER WATER

main87240-28030iYR2#,3#198808-199001

87245AHOSE, HEATER WATER, INLET A

main87245-87014iYR2#198808-199001

main87245-95D09iYR3#198808-199001

87245BHOSE, HEATER WATER, INLET B

main87245-28050iYR2#,3#198808-199001

87245EHOSE, HEATER WATER, INLET E

main99556-30500iYR2#,3#198808-199001

L=500

87246AHOSE, HEATER WATER, OUTLET A

main99556-30980iYR3#198808-199001

*H,L=980

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-87016iYR2#198808-199001

main87245-95D08iYR3#198808-199001

87248APIPE, HEATER WATER INLET, A

main87208-28010iYR2#,3#198808-199001

87248BPIPE, HEATER WATER INLET, B

main87208-28140iYR22..CND198808-199001

W(REAR HEATER)

main87208-28160iYR29;YR22..USA198808-199001

main87208-95D18iYR32;YR31..USA198808-199001

main87208-95D20iYR31..CND198808-199001

W(REAR HEATER)

87249APIPE, HEATER WATER OUTLET, A

main87208-28150iYR22..CND198808-199001

W(REAR HEATER)

main87208-28170iYR29;YR22..USA198808-199001

main87208-95D25iYR32;YR31..USA198808-199001

main87208-95D26iYR32..CND198808-199001

W(REAR HEATER)

1149371010GASKET, WATER SEAL PLATE

main11493-71010

8712428030CLAMP, HEATER

main87124-28030

8712487003CLAMP, HEATER

main87124-87003

8712487004CLAMP, HEATER

main87124-87004

8712487005CLAMP, HEATER

main87124-87005

8712487011CLAMP, HEATER

main87124-87011

8712495D00CLAMP, HEATER

main87124-95D00

8726895703COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-95703

9011210250

main90112-10250

9033916001

main90339-16001

9161160830

main91611-60830

9161160835

main91611-60835

9165140814

main91651-40814

9611210250

main96112-10250

23 parts on this diagram · 2 diagrams in section
