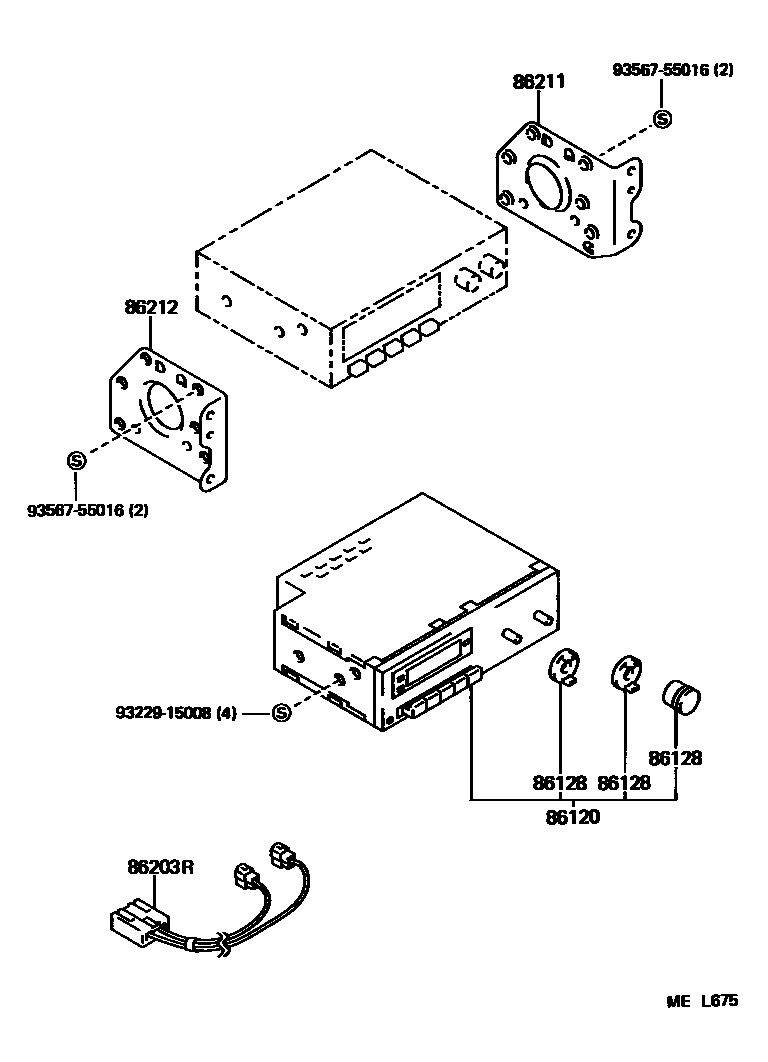

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-16550iYR22,31..LE..CND198808-199001

AM/FM MPX ETR 1DIN 2-SPEAKERS(STD)

sub86120-16551

main86120-28040iYR22,31..LE..USA198808-199001

AM/FM MPX ETR 1DIN 5-SPEAKERS(STD)

main86120-28040iYR22,31..LE..USA198808-199001

AM/FM MPX ETR 1DIN 5-SPEAKERS(OPT)

main86120-28050iYR22,31198808-199001

AM/FM MPX ETR CASSETTE 2DIN 5-SPEAKERS(OPT)

main86120-28060iYR22,31..LE..USA198808-199001

W(AM MPX/FM MPX ETR CST A.F. 5SP)

main86120-32390iYR22..USA;YR31..LE..USA198808-199001

FUJITSU TEN,AM/FM MPX ETR 1DIN GEN 5-SPEAKERS(OPT)

86128KNOB, RADIO RECEIVER

main86128-12140iYR22,31..LE..CND198808-199001

PWR/VOL

main86128-12160iYR22,31..LE..CND198808-199001

TONE

main86128-12180iYR22,31..LE..CND198808-199001

BAL

main86128-28140iYR22,31..LE..USA198808-199001

PWR/VOL

main86128-28140iYR22,31..LE..USA198808-199001

W(AM/FM MPX ETR 1-DIN 5SP RADIO),PWR/VOL

main86128-28160iYR22,31..LE..USA198808-199001

BAL/FADE,BASS/TREB

86203RWIRE SUB-ASSY, RR

main86205-28010iYR2#,3#198808-199001

86211BRACKET, RADIO, NO.1

main86211-28010iYR2#,3#198808-199001

86212BRACKET, RADIO, NO.2

main86212-28010iYR2#,3#198808-199001

9322915008

main93229-15008

9356755016

main93567-55016

7 parts on this diagram · 2 diagrams in section
