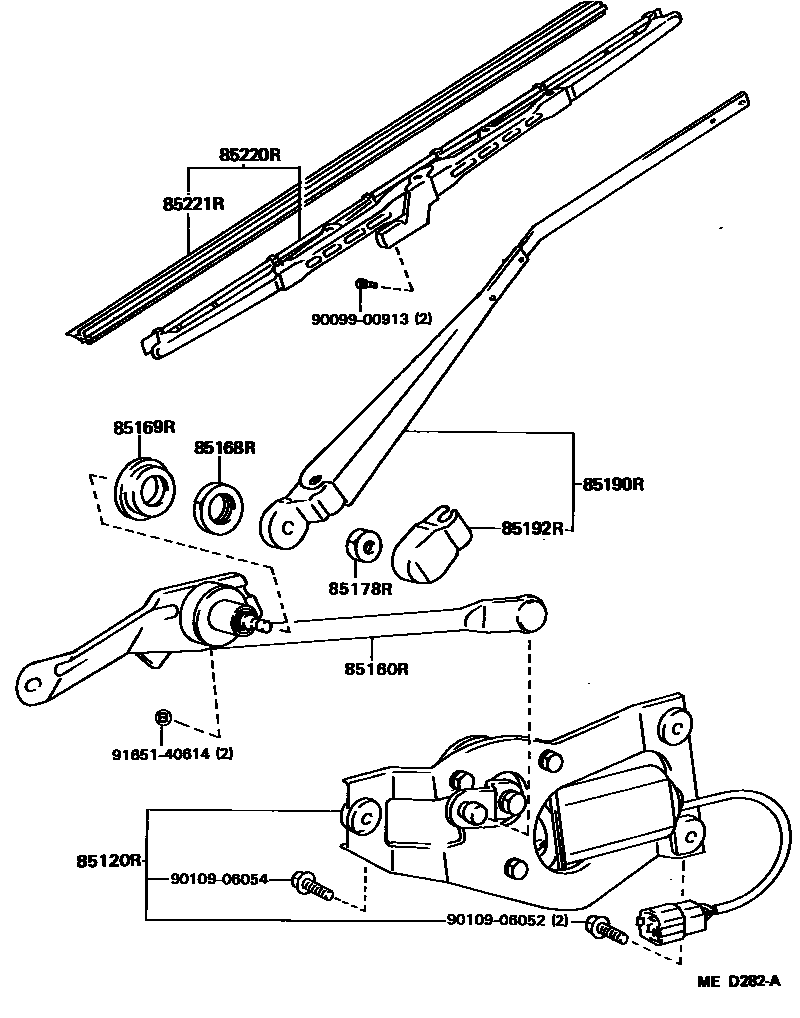

REAR WIPER

85120RMOTOR AND BRACKET ASSY, REAR WIPER

main85120-87002iYR2#,3#198808-199001

85160RLINK ASSY, REAR WIPER

main85160-87004iYR2#,3#198808-199001

85168RNUT, REAR WIPER LINK PIVOT, NO.1

main90099-05157iYR2#,3#198808-199001

85169RWASHER, REAR WIPER LINK PIVOT, NO.1

main85179-87004iYR2#,3#198808-199001

85178RNUT (FOR REAR WIPER ARM SETTING)

main90179-06115iYR2#,3#198808-199001

85190RARM ASSY, REAR WIPER

main85190-87014iYR2#,3#198808-199001

85192RCOVER, REAR WIPER ARM

main85192-14020iYR2#,3#198808-199001

sub85192-13060

85220RBLADE ASSY, REAR WIPER

main85220-22600iYR2#,3#198808-199001

85221RBLADE, REAR WIPER

main85221-87003iYR2#,3#198808-199001

sub85221-87002

9009900913

main90099-00913

9010906052

main90109-06052

9010906054

main90109-06054

9165140614

main91651-40614

13 parts on this diagram · 1 diagram in section
