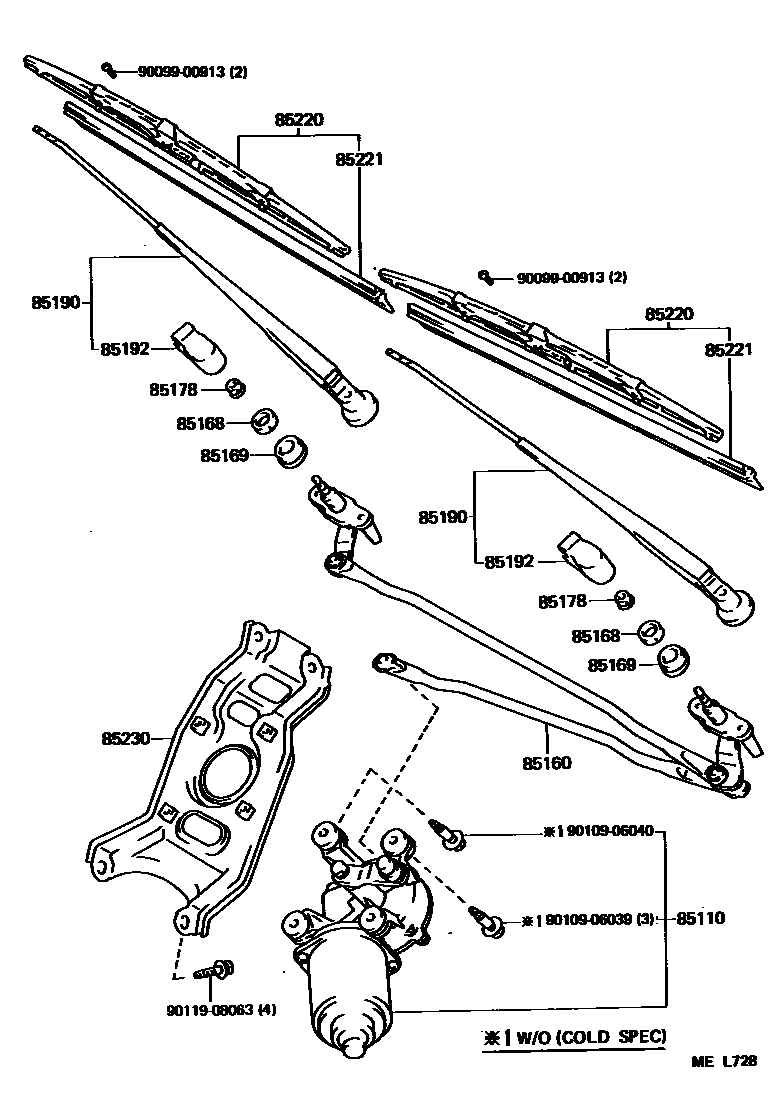

WINDSHIELD WIPER

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-28020iYR2#,3#..CND198808-199001

COLD SPEC

main85110-28030iYR2#,3#..USA198808-199001

sub85110-28020

85160LINK ASSY, WINDSHIELD WIPER

main85160-28010iYR2#,3#198808-199001

85168NUT, WINDSHIELD WIPER LINK PIVOT

main90099-05141iYR2#,3#198808-199001

85169WASHER, WINDSHIELD WIPER LINK PIVOT, NO.1

main85179-87002iYR2#,3#198808-199001

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-08123iYR2#,3#198808-199001

85190ARM ASSY, WINDSHIELD WIPER

main85190-28030iYR2#,3#198808-199001

LH

main85210-28020iYR2#,3#198808-199001

RH

85192COVER, WINDSHIELD WIPER ARM

main85192-28020iYR2#,3#198808-199001

85220BLADE ASSY, WINDSHIELD WIPER

main85220-16270iYR2#,3#198808-198812

RH

sub85220-16640

main85220-16340iYR2#,3#198808-198812

LH

sub85220-16640

main85220-16880iYR2#,3#198812-199001

sub85220-16640

85221BLADE, WINDSHIELD WIPER

main85221-30100iYR2#,3#198808-199001

sub85221-40040

85230BRACKET ASSY, WINDSHIELD WIPER

main85231-28010iYR2#,3#198808-199001

9009900913

main90099-00913

9010906039

main90109-06039

9010906040

main90109-06040

9011908063

main90119-08063

14 parts on this diagram · 1 diagram in section
