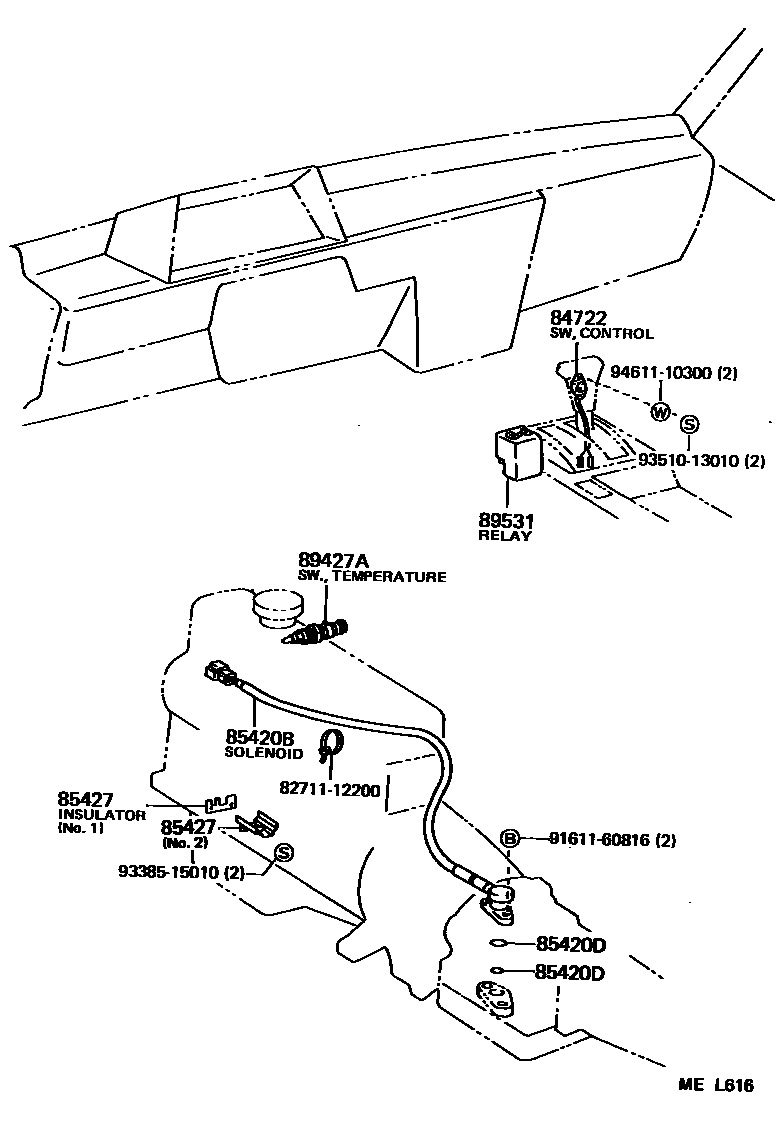

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-03iYR29,32..4FC..USA198808-199001

GRAY,TRIM1#

sub84722-20040

main84722-20040-16iYR29,32..4FC..USA198808-199001

BROWN,TRIM4#

sub84722-20040

main84722-20040-24iYR29,32..4FC..USA198808-199001

BLUE,TRIM8#

sub84722-20040

main84722-32010iYR29,32..4FC198808-199001

CHROME PLATING

85420BSOLENOID ASSY, TRANSMISSION

main85420-28020iYR2#,3#..4FC198808-199001

85420DRING, O (FOR TRANSMISSION SOLENOID)

main90301-11001iYR2#,3#..4FC198808-199001

ID=10

main90301-23001iYR2#,3#..4FC198808-199001

ID=23

85427INSULATOR, OVERDRIVE SOLENOID

main85427-28020iYR2#..4FC198808-199001

NO.1

main85427-28030iYR2#..4FC198808-199001

NO.2

89427ASWITCH, TEMPERATURE

main89428-20050iYR2#,3#..4FC198808-199001

89531RELAY, TRANSMISSION CONTROL

main89531-28010iYR2#..4FC198808-199001

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9161160816

main91611-60816

9338515010

main93385-15010

9351013010

main93510-13010

9461110300

main94611-10300

11 parts on this diagram · 1 diagram in section
