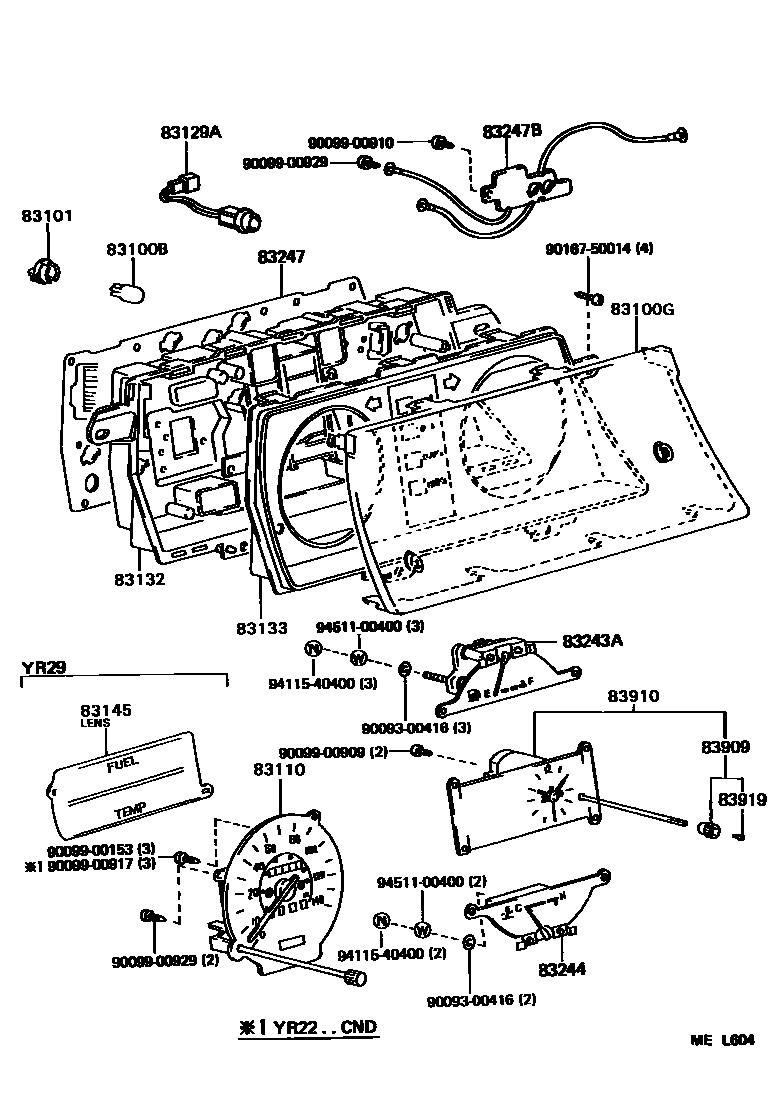

METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main83109-10010iYR22..5F..LE198808-199001

12V 1.4W,ORANGE CAP

main83109-28010×4iYR2#,3#198808-199001

12V3.4W W(GREEN CAP)

main90981-11018iYR3#..5F;YR22..5F..LE198808-199001

12V 1.2W W/O SOCKET

main99132-12034×8iYR31..5F198808-199001

12V 3.4W

83100GGLASS, COMBINATION METER

main83138-87003iYR32..USA198808-199001

W(ANALOG CLOCK)

main83138-87005iYR32;YR29..CND198808-199001

main83138-87007iYR22,31..LE198808-199001

W(TACHOMETER)

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×10iYR29,32..CND198808-199001

12V 3.4W BULB

main83101-14040iYR31..4FC..DLX..USA198808-199001

12V 1.4W BULB

main83101-28010×4iYR22..DLX..CND198808-199001

12V 3.4W GREEN BULB

83110SPEEDOMETER ASSY

main83110-28041iYR2#,3#..(DLX,STD)..USA198808-199001

main83110-28071iYR22,31..5F..DLX..USA198808-199001

W(TACHOMETER)

main83110-28081iYR2#,3#..(DLX,STD)..CND198808-199001

main83110-28121iYR22,31..LE..CND198808-199001

W(TACHOMETER)

83129ABULB AND SOCKET

main83129-95D03iYR3#..5F198808-199001

83132CASE, COMBINATION METER

main83132-28130iYR22,31..4FC..LE198808-199001

main83132-28250iYR22..DLX;YR29..USA198808-199001

main83132-28270iYR29..CND198808-199001

main83132-28370iYR22..5F..LE198808-199001

W(TACHOMETER)

main83132-95D09iYR31..5F198808-199001

main83132-95D11iYR3#..4FC..(DLX,STD)198808-199001

main83132-95D13iYR32..CND198808-199001

83133PLATE, COMBINATION METER, NO.1

main83133-28030iYR2#..(DLX,STD)..USA198808-199001

main83133-28110iYR2#..(DLX,STD)..CND198808-199001

main83133-87019iYR22,31..LE198808-199001

W(TACHOMETER)

main83133-95D03iYR31..5F..USA198808-199001

main83133-95D05iYR3#..4FC..(DLX,STD)..USA198808-199001

main83133-95D07iYR3#..5F..CND198808-199001

main83133-95D09iYR31..4FC..DLX..CND198808-199001

83145LENS, METER, NO.1

main83145-28050iYR32..CND198808-199001

main83145-28070iYR29..CND198808-199001

main83145-28090iYR29,32..USA198808-199001

83243AGAUGE SUB-ASSY, FUEL RECEIVER

main83243-28010iYR22..5F..DLX..USA198808-199001

W(TACHOMETER)

main83243-87001iYR22..LE..CND198808-199001

W(TACHOMETER)

main83243-87003iYR29,32..CND198808-199001

main83243-87005iYR22,31..DLX;YR29,32..USA198808-199001

main83243-95D03iYR31..LE..CND198808-199001

main83243-95D07iYR31..LE..USA198808-199001

83244GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER

main83244-28030iYR2#,3#..(DLX,STD)..CND198808-199001

main83244-28110iYR22,31..LE..CND198808-199001

W(TACHOMETER)

main83244-87003iYR2#,3#..(DLX,STD)..USA198808-199001

main83244-87006iYR22..5F..DLX..USA198808-199001

W(TACHOMETER)

83247PLATE, METER CIRCUIT

main83247-28510iYR22..LE198808-199001

W(TACHOMETER)

main83247-28610iYR29,32..CND198808-199001

main83247-28690iYR29..USA198808-199001

W(ANALOG CLOCK)

main83247-95D11iYR31..LE198808-199001

main83247-95D17iYR3#..4FC..(DLX,STD)198808-199001

83247BPLATE, METER CIRCUIT, NO.2

main83247-28290iYR22,31..4FC..LE198808-199001

main83247-28790iYR22..5F..LE198808-199001

main83247-95D23iYR3#..4FC..(DLX,STD)198808-199001

83909KNOB, CLOCK

main83909-14012iYR29,32..USA198808-199001

main83909-16050iYR22,31..5F..DLX198808-199001

W(TACHOMETER)

83910CLOCK ASSY

main83910-28011iYR22,31..5F..DLX198808-199001

W(TACHOMETER)

main83910-28030iYR31..5F198808-199001

main83910-28040iYR29,32..USA198808-199001

83919SCREW, CLOCK

main83919-12230iYR22,31..5F..DLX198808-199001

W(TACHOMETER)

main83919-14012iYR29,32..USA198808-199001

9009300416

main90093-00416

9009900153

main90099-00153

9009900909

main90099-00909

9009900910

main90099-00910

9009900917

main90099-00917

9009900929

main90099-00929

9016750014

main90167-50014

9411540400

main94115-40400

9451100400

main94511-00400

24 parts on this diagram · 3 diagrams in section
