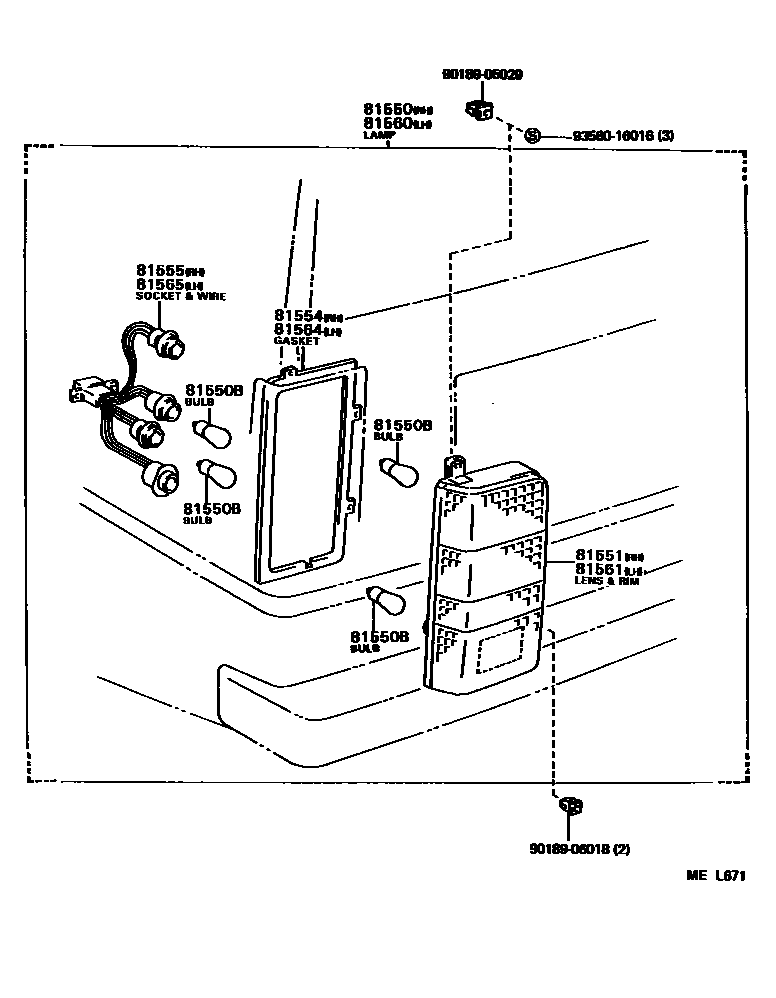

REAR COMBINATION LAMP

0001 1 0002 1

81550LAMP ASSY, REAR COMBINATION, RH

main81550-28010iYR29,32198808-199001

main81550-28020iYR22,31198808-199001

81550BBULB(FOR REAR COMBINATION LAMP)

main99132-11270iYR22,31198808-199001

12V 27W

main99132-21270iYR2#,3#198808-199001

12V 27/8W

81551LENS, REAR COMBINATION LAMP, RH

main81551-28010iYR29,32198808-199001

main81551-28020iYR22,31198808-199001

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-87003iYR29,32198808-199001

main81554-87007iYR22,31198808-199001

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-28010iYR29,32198808-199001

main81555-28020iYR22,31198808-199001

81560LAMP ASSY, REAR COMBINATION, LH

main81560-28010iYR29,32198808-199001

main81560-28020iYR22,31198808-199001

81561LENS, REAR COMBINATION LAMP, LH

main81561-28010iYR29,32198808-199001

main81561-28020iYR22,31198808-199001

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81564-87003iYR29,32198808-199001

main81564-87007iYR22,31198808-199001

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-28010iYR29,32198808-199001

main81555-28020iYR22,31198808-199001

9018905029

main90189-05029

9018906018

main90189-06018

9356016016

main93560-16016

12 parts on this diagram · 2 diagrams in section
