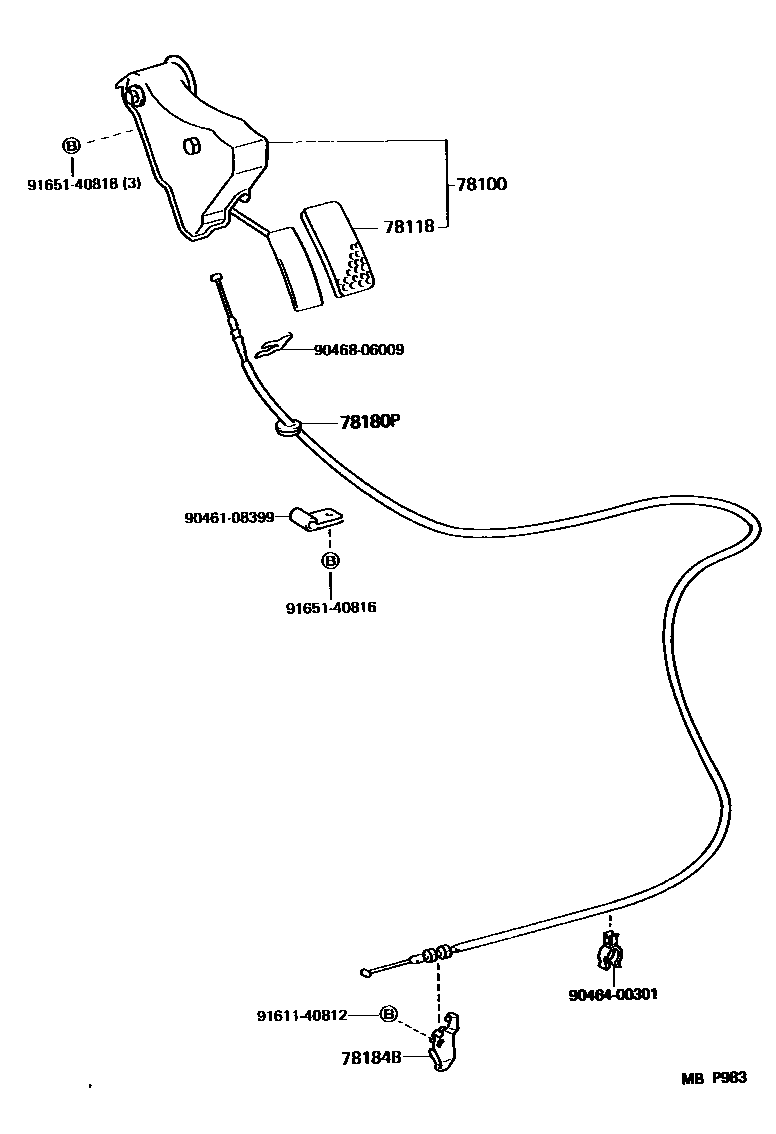

ACCELERATOR LINK

78100LINK ASSY, ACCELERATOR

main78105-28040iYR2#,3#198808-199001

78118PAD, ACCELERATOR PEDAL

main78119-95700iYR2#,3#198808-199001

78180PCABLE ASSY, ACCELERATOR CONTROL

main78180-28030iYR2#,3#198808-199001

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-87005iYR2#,3#198808-199001

9046108399

main90461-08399

9046400301

main90464-00301

9046806009

main90468-06009

9161140812

main91611-40812

9165140816

main91651-40816

9165140818

main91651-40818

10 parts on this diagram · 1 diagram in section
