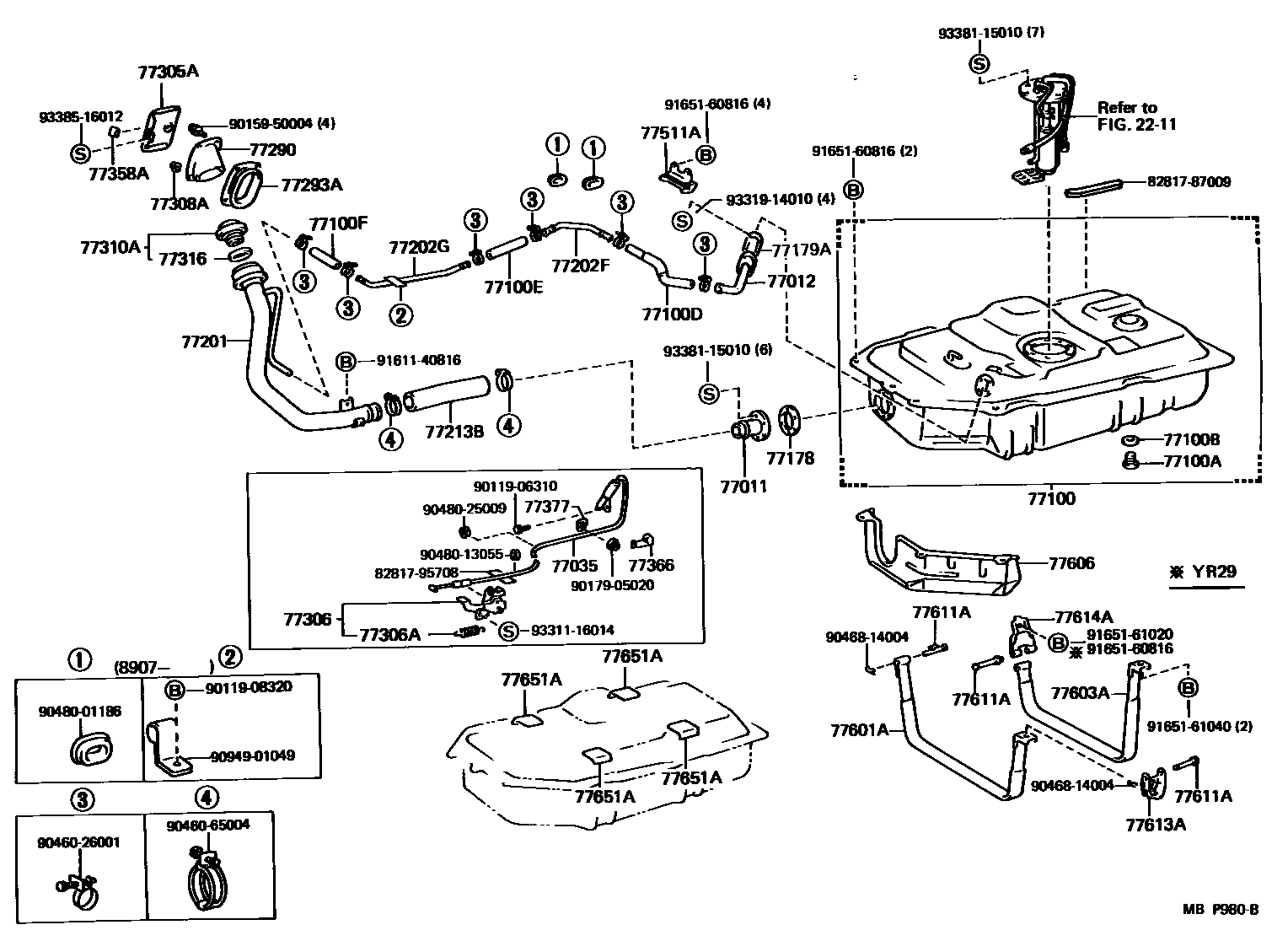

FUEL TANK & TUBE

0001 1 0002 1 0003 1

2211

77011PIPE SUB-ASSY, FUEL TANK FILLER, LOWER

main77011-13010iYR2#,3#198808-199001

77012TUBE SUB-ASSY, FUEL TANK BREATHER

main77012-28020iYR2#,3#198808-199001

77035CABLE SUB-ASSY, FUEL LID LOCK CONTROL

main77035-28010iYR2#,3#198808-199001

77100TANK ASSY, FUEL

main77001-28270iYR2#198808-199001

main77001-28300iYR3#198808-199001

77100APLUG(FOR FUEL TANK)

main90105-12116iYR2#,3#198808-199001

77100BGASKET(FOR FUEL TANK)

main90430-12245iYR2#,3#198808-199001

77100DHOSE, FUEL, NO.1(FOR FUEL TANK)

main77259-28030iYR2#,3#198808-199001

L=290

77100EHOSE, FUEL, NO.2(FOR FUEL TANK)

main90445-24010iYR2#,3#198808-199001

L=130

77100FHOSE, FUEL, NO.3(FOR FUEL TANK)

main90445-24029iYR2#,3#198808-199001

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-13020iYR2#,3#198808-199001

77179AGASKET, FUEL TANK BREATHER TUBE

main77179-14030iYR2#,3#198808-199001

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-28070iYR2#,3#198808-199001

77202FTUBE, FUEL, NO.1 (FOR BREATHER TUBE)

main77222-28030iYR2#,3#198808-199001

77202GTUBE, FUEL, NO.2 (FOR BREATHER TUBE)

main77014-28010iYR2#,3#198904-198907

main77223-28030iYR2#,3#198808-198904

sub77014-28010

main77223-28040iYR2#,3#198907-199001

77213BHOSE, FUEL TANK TO FILLER PIPE

main77019-28011iYR2#,3#198808-199001

77290SHIELD ASSY, FUEL TANK FILLER PIPE

main77290-28010iYR2#,3#198808-199001

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-28010iYR2#,3#198808-199001

77305ALID SUB-ASSY, FUEL FILLER OPENING

main77305-87006iYR2#,3#198808-199001

77306LEVER SUB-ASSY, FUEL LID LOCK OPEN

main77306-28010iYR2#,3#198808-199001

77306ASPRING, FUEL LID OPEN LEVER

main90506-09004iYR2#,3#198808-199001

77308ACUSHION(FOR FUEL INLET BOX COVER)

main90541-06001iYR2#,3#198808-199001

77310ACAP ASSY, FUEL TANK

main77310-12140iYR2#,3#198808-199001

77316GASKET, FUEL TANK CAP

main77316-16010iYR2#,3#198808-199001

77358ASTOPPER, FUEL FILLER OPENING LID

main77358-87001iYR2#,3#198808-198903

main77358-87002iYR2#,3#198903-199001

sub77358-87003

77366SPRING, FUEL FILLER OPENING LID HINGE

main77366-87001iYR2#,3#198808-199001

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-28010iYR2#,3#198808-199001

77511ABRACKET, FUEL TANK

main77511-28050iYR2#198808-199001

main77511-28060iYR3#198808-199001

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-28040iYR2#198808-199001

77603ABAND SUB-ASSY, FUEL TANK, NO.2

main77603-28050iYR2#198808-199001

main77603-28060iYR3#198808-199001

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77161-28010iYR3#198808-199001

main77606-28020iYR2#198808-199001

77611APIN (FOR FUEL TANK BAND)

main77653-28010iYR3#198808-199001

RR-RH

main90240-08020iYR2#198808-199001

FR-RH

main90240-08047iYR2#198808-199001

FR-LH

77613ABRACKET, FUEL TANK BAND, NO.1

main77613-28040iYR2#198808-199001

77614ABAND, FUEL TANK, NO.2 RH

main77614-28010iYR22,3#198808-199001

main77614-28020iYR29198808-199001

77651ACUSHION, FUEL TANK, NO.1

main77651-28010iYR2#,3#198808-199001

70 X 70

main77651-28020iYR2#,3#198808-199001

70 X 110

8281787009PROTECTOR, WIRING HARNESS, NO.1

main82817-87009

8281795708PROTECTOR, WIRING HARNESS, NO.1

main82817-95708

9011906310

main90119-06310

9011908320

main90119-08320

9015950004

main90159-50004

9017905020

main90179-05020

9046026001

main90460-26001

9046065004

main90460-65004

9046814004

main90468-14004

9048001186

main90480-01186

9048013055

main90480-13055

9048025009

main90480-25009

9094901049

main90949-01049

9161140816

main91611-40816

9165160816

main91651-60816

9165161020

main91651-61020

9165161040

main91651-61040

9331116014

main93311-16014

9331914010

main93319-14010

9338115010

main93381-15010

9338516012

main93385-16012

56 parts on this diagram · 3 diagrams in section
