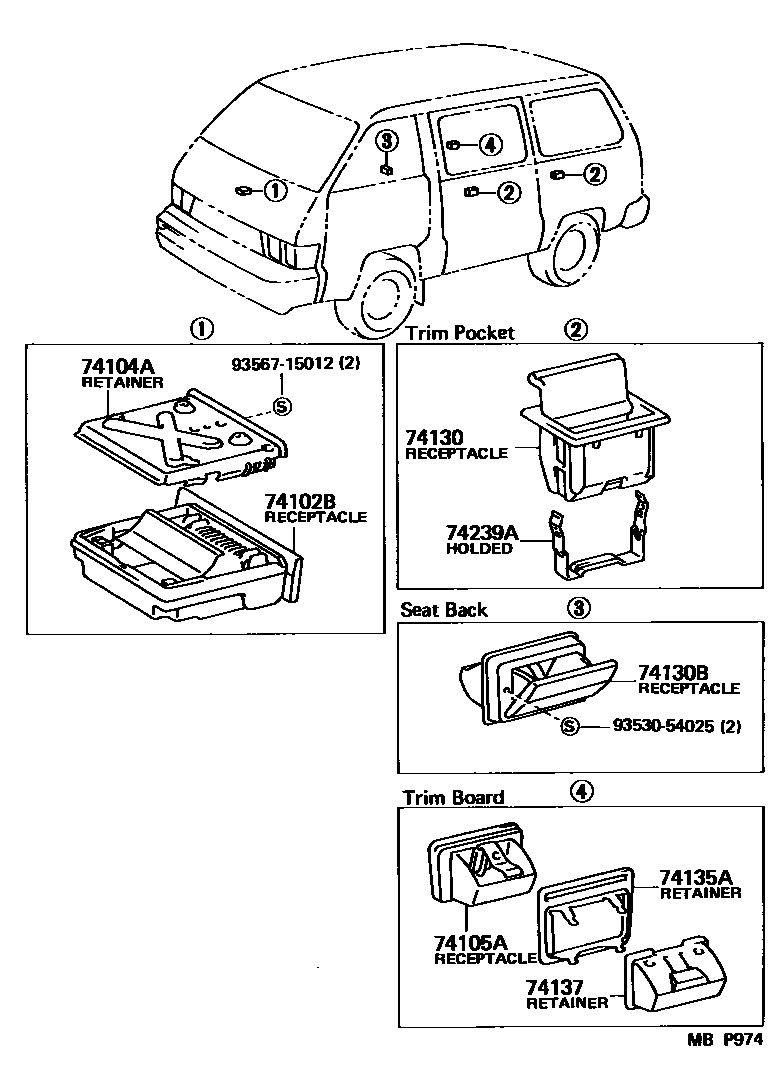

ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-87001-01iYR2#,3#198808-199001

BLACK,TRIM1#,4#,8#

sub74102-87001

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-28010iYR22,31198808-199001

W(CIGARETTE LIGHTER & LIGHTING)

main74104-87008iYR29,32198808-199001

74105ARECEPTACLE SUB-ASSY, REAR ASH

main74105-10010-13iYR22,31198808-199001

GRAY,TRIM1#

sub74105-10010

main74105-10010-30iYR22,31198808-199001

BROWN,TRIM4#

sub74105-10010

main74105-10010-34iYR22,31198808-199001

BLUE,TRIM8#

sub74105-10010

74130RECEPTACLE ASSY, REAR ASH

main74130-16020-23iYR22,31198808-199001

GRAY,TRIM1#

sub74130-16020

main74130-16020-24iYR22,31198808-199001

BLUE,TRIM8#

sub74130-16020

main74130-16020-46iYR22,31198808-199001

BROWN,TRIM4#

sub74130-16020

74130BRECEPTACLE ASSY, REAR ASH

main74130-14020-23iYR22,31198808-199001

GRAY,TRIM1#

sub74130-14020

sub74130-95401

main74130-14020-54iYR22,31198808-199001

BLUE,TRIM8#

sub74130-14020

sub74130-95401

main74130-14020-58iYR22,31198808-199001

BROWN,TRIM4#

sub74130-14020

sub74130-95401

74135ARETAINER, REAR ASH RECEPTACLE, NO.1

main74135-10030iYR22,31198808-199001

74137RETAINER, REAR ASH RECEPTACLE, INNER RH

main74137-10030iYR22,31198808-199001

74239AHOLDER, REAR ASH RECEPTACLE

main74239-22020iYR22,31198808-199001

9353054025

main93530-54025

9356715012

main93567-15012

10 parts on this diagram · 1 diagram in section
