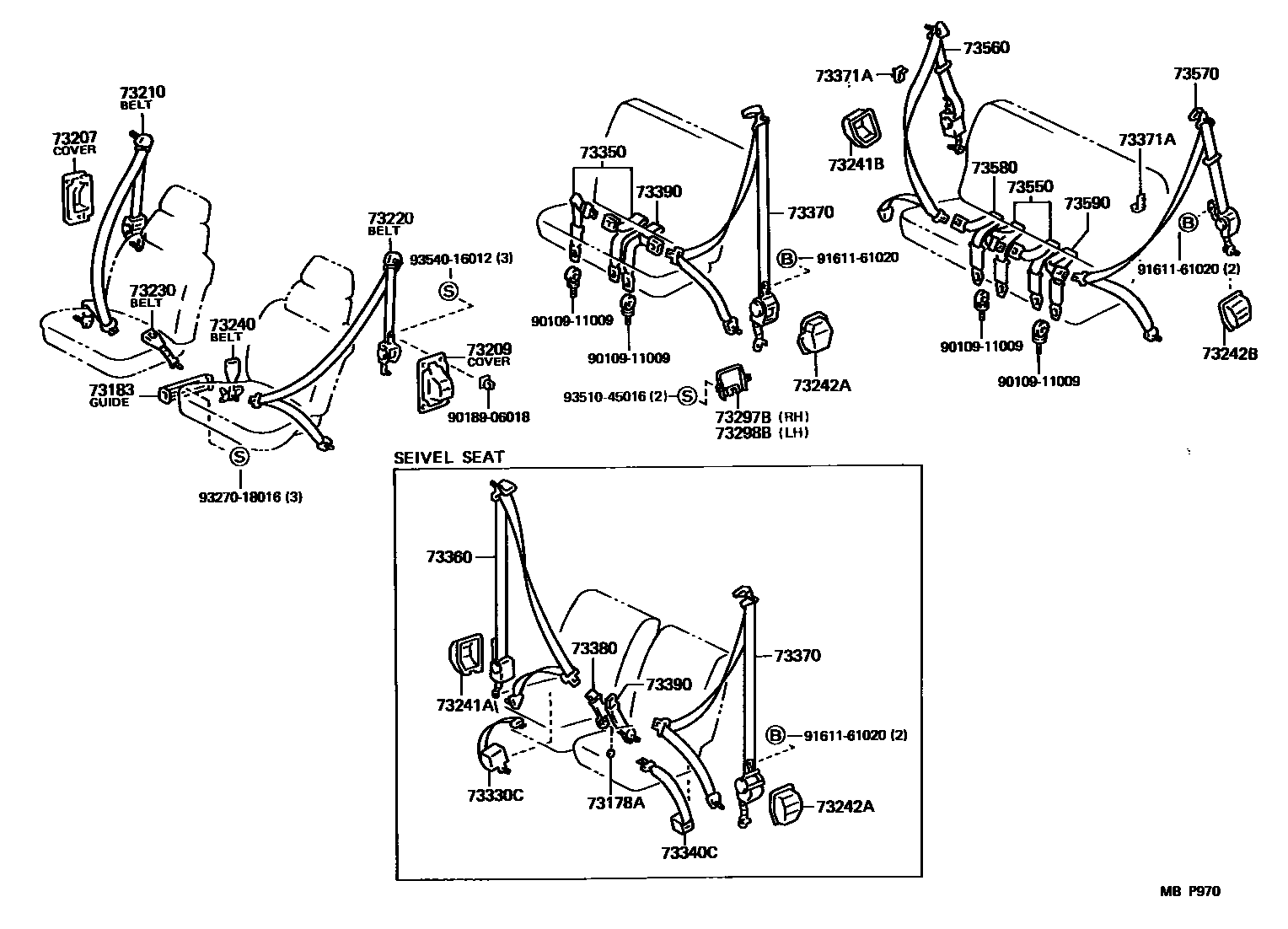

SEAT BELT
73178ACAP, SEAT BELT ANCHOR COVER
73183GUIDE, FRONT SEAT LAP BELT, INNER
73207COVER SUB-ASSY, SEAT BELT RETRACTOR, RH
sub73207-87004
73209COVER SUB-ASSY, SEAT BELT RETRACTOR, LH
73210BELT ASSY, FRONT SEAT OUTER, RH
73220BELT ASSY, FRONT SEAT OUTER, LH
73230BELT ASSY, FRONT SEAT INNER, RH
73240BELT ASSY, FRONT SEAT INNER, LH
73241ACASE, SEAT BELT RETRACTOR, RH
73241BCASE, SEAT BELT RETRACTOR, RH(FOR NO.2 SEAT)
73242ACASE, SEAT BELT RETRACTOR, LH
73242BCASE, SEAT BELT RETRACTOR, LH(FOR NO.2 SEAT)
73297BCOVER, QUARTER TRIM BELT HOLE, RH
73298BCOVER, QUARTER TRIM BELT HOLE, LH
73330CBELT ASSY, REAR SEAT LAP TYPE, CENTER RH
73340CBELT ASSY, REAR SEAT LAP TYPE, CENTER LH
SHADOW GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73371AHANGER REAR SEAT SHOULDER BELT
73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
SHADOW GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
W(CAPTAIN SEAT = BELT DOWN TYPE),SABLE,TRIM4#
73550BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER
73560BELT ASSY, REAR NO.2 SEAT, OUTER RH
73570BELT ASSY, REAR NO.2 SEAT, OUTER LH
73580BELT ASSY, REAR NO.2 SEAT, INNER RH
73590BELT ASSY, REAR NO.2 SEAT, INNER LH
9010911009
main90109-11009
9018906018
main90189-06018
9161161020
main91611-61020
9327018016
main93270-18016
9351045016
main93510-45016
9354016012
main93540-16012
33 parts on this diagram · 1 diagram in section
