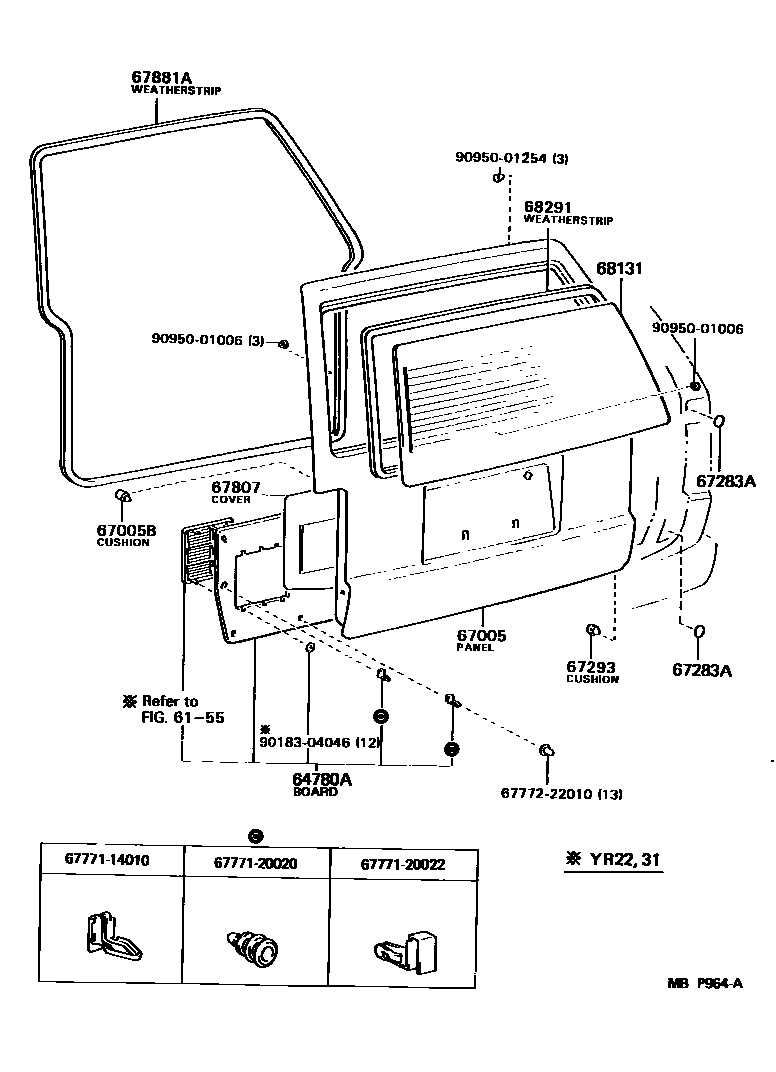

BACK DOOR PANEL & GLASS

6155

64780APANEL ASSY, BACK DOOR TRIM

main64780-28010iYR29,32..CND198808-199001

main64780-28020iYR29,32..USA198808-199001

main64780-87001-03iYR22,31..DLX198808-199001

GRAY,TRIM1#

sub64780-87001

main64780-87001-04iYR22,31..DLX198808-199001

LIGHT BLUE,TRIM8#

sub64780-87001

main64780-87001-06iYR22,31..DLX198808-199001

LIGHT SABLE,TRIM4#

sub64780-87001

main64780-87002-03iYR22,31..LE198808-199001

GRAY,TRIM1#

sub64780-87002

main64780-87002-04iYR22,31..LE198808-199001

LIGHT BLUE,TRIM8#

sub64780-87002

main64780-87002-06iYR22,31..LE198808-199001

LIGHT SABLE,TRIM4#

sub64780-87002

67005PANEL SUB-ASSY, BACK DOOR

main67005-28050iYR29,32..USA198808-199001

W(REAR WINDOW WIPER)

main67005-28060iYR29,32..USA198808-199001

main67005-28070iYR29,32..CND198808-199001

main67005-28080iYR29,32..CND198808-199001

W(REAR WINDOW WIPER)

main67005-28090iYR22,31..DLX198808-199001

main67005-28100iYR22,31..DLX198808-199001

W(REAR WINDOW WIPER)

main67005-28110iYR22,31..LE198808-199001

main67005-28120iYR22,31..LE198808-199001

W(REAR WINDOW WIPER)

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09029iYR2#,3#198808-199001

67283ACOVER, BACK DOOR STOPPER CUSHION, NO.1

main67283-87001iYR2#,3#198809-199001

67293CUSHION, BACK DOOR LOWER STOPPER

main90541-09031iYR2#,3#198808-199001

67807COVER SUB-ASSY, BACK DOOR SERVICE HOLE

main67807-87003iYR2#,3#198808-199001

67881AWEATHERSTRIP, BACK DOOR

main67881-87006iYR2#,3#..CND198808-199001

sub67881-87010

68131GLASS, BACK DOOR

main68105-28010iYR29,32..VSP..USA198808-199001

*EHT,T=4.0,GRAY

main68105-87012iYR29,32..VSP..USA198808-199001

*EHT,T=4.0

sub68105-87013

main68105-87013iYR29,32..CND198808-199001

*EHTT,T=4.0

main68105-87014iYR22,31..DLX198808-199001

*EHTT,T=4.0,BRONZE

main68131-28020iYR29,32198808-199001

*TEM,T=4.0,GRAY

main68131-87006iYR2#,3#..DLX,STD198808-199001

*TEM,T=4.0

sub68105-87012

main68131-87007iYR22,31..DLX198808-199001

*TT,T=4.0

sub68105-87013

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-87004iYR2#,3#198808-199001

6777114010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14010

6777120020WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20020

6777120022WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20022

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9018304046

main90183-04046

9095001006

main90950-01006

9095001254

main90950-01254

17 parts on this diagram · 1 diagram in section
