SLIDE ROLLER & RAIL

68303BRAIL SUB-ASSY, SLIDE DOOR, CENTER RH

main68303-87001iYR2#,3#198808-199001

sub68303-87002

68308RAIL SUB-ASSY, SLIDE DOOR, UPPER RH

main68308-87001iYR2#,3#198808-199001

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-87001iYR2#,3#198808-199001

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68350-87001iYR2#,3#198808-199001

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68330-87002iYR2#,3#198808-199001

68331BPAD, SLIDE DOOR CENTER RAIL

main68367-87002iYR2#,3#198808-199001

68335PAD, SLIDE DOOR UPPER RAIL

main69243-87002iYR2#,3#198808-199001

68370ROLLER ASSY, SLIDE DOOR, LOWER SUB

main68350-87002iYR2#,3#198808-199001

68373MOULDING, SLIDE RAIL END, RH

main68373-87001iYR2#,3#198808-199001

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-87001iYR2#,3#198808-199001

69413STOP, SLIDE DOOR DOWN MALE

main69416-87002iYR22,31..LE198808-199001

W(POWER DOOR LOCK)

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-87003iYR22,31..LE198808-199001

W(POWER DOOR LOCK)

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iYR2#,3#198808-199001

69418CSTOPPER, BACK DOOR MALE, LOWER

main69418-87003iYR2#,3#198808-199001

9011906334

main90119-06334

9015960289

main90159-60289

9018904014

main90189-04014

9161560616

main91615-60616

9161660616

main91616-60616

9165140612

main91651-40612

9165140614

main91651-40614

9166160816

main91661-60816

9166160820

main91661-60820

9354064010

main93540-64010

9418040600

main94180-40600

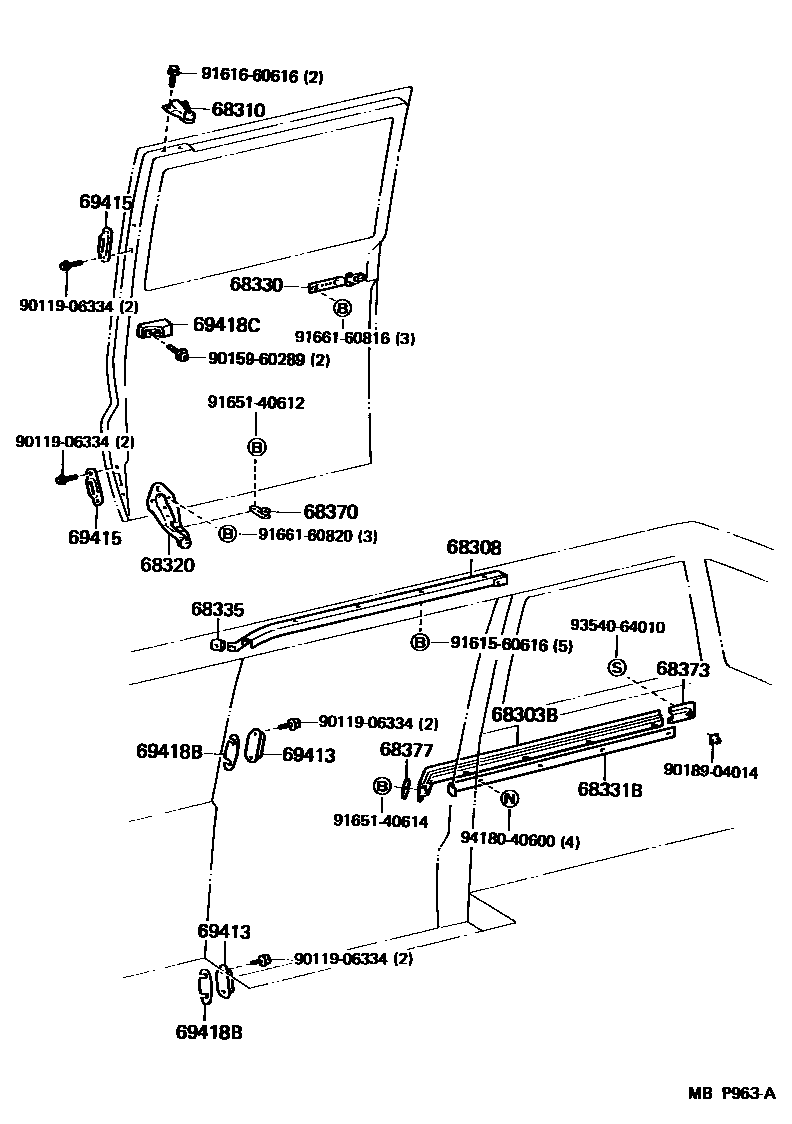

25 parts on this diagram · 1 diagram in section
