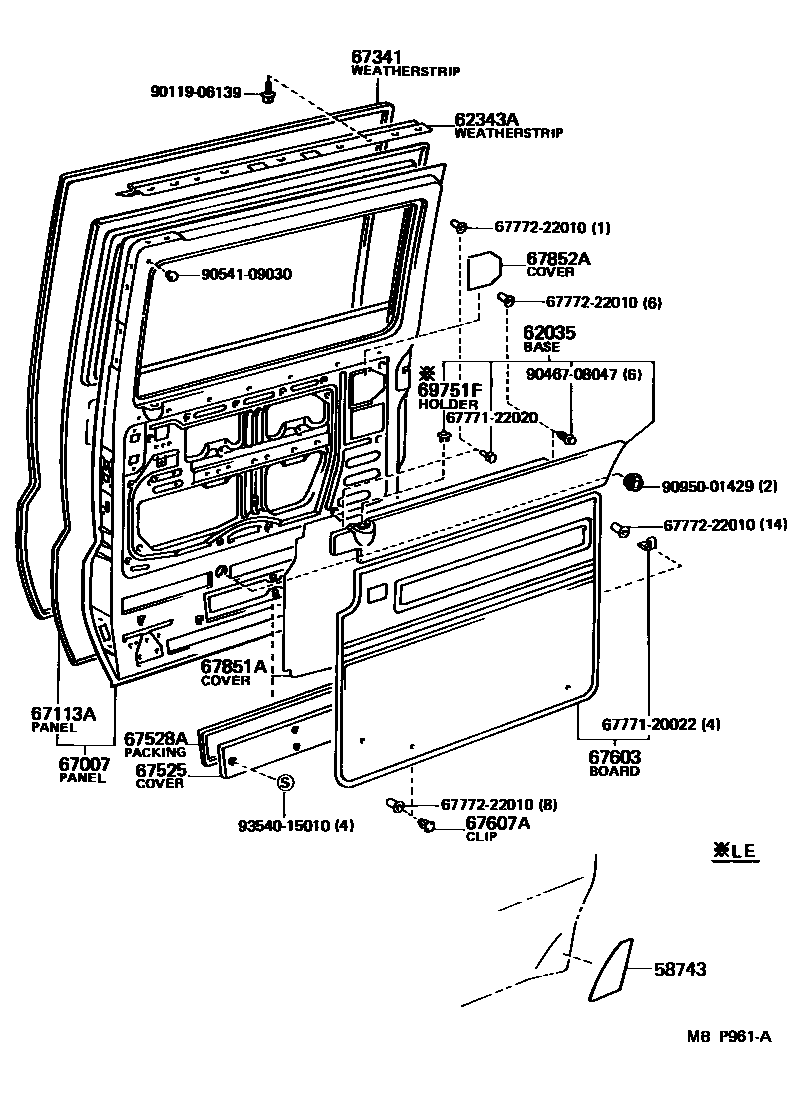

REAR DOOR PANEL & GLASS
58743PROTECTER, SLIDE DOOR PANEL, RH
62035TRIM SUB-ASSY, REAR DOOR TRIM, UPPER RH
BLUE,TRIM8#
SABLE,TRIM4#
SHADOW GRAY,TRIM1#
62343AWEATHERSTRIP, SLIDE DOOR, NO.2
sub67887-28010
67007PANEL SUB-ASSY, SLIDE DOOR, RH
W(POWER DOOR LOCK)
W(POWER WINDOW & POWER DOOR LOCK)
W(POWER DOOR LOCK)
67113APANEL, SLIDE DOOR, OUTER RH
67341WEATHERSTRIP, SLIDE DOOR, RH
67525COVER, SLIDE DOOR PANEL, LOWER
67528APACKING, SLIDE DOOR LOWER COVER
67603BOARD SUB-ASSY, REAR DOOR TRIM, RH
BLUE,TRIM8#
SHADOW GRAY,TRIM1#
BLUE,TRIM8#
SABLE,TRIM4#
SHADOW GRAY,TRIM1#
W(CAPTAIN SEAT = BELT DOWN TYPE),BLUE,TRIM8#
sub67630-28070
W(CAPTAIN SEAT = BELT DOWN TYPE),SHADOW GRAY,TRIM1#
sub67630-28070
67607ACLIP(FOR SLIDE DOOR TRIM BOARD)
67851ACOVER, SLIDE DOOR SERVICE HOLE, NO.1
67852ACOVER, SLIDE DOOR SERVICE HOLE, NO.2
69751FHOLDER, REAR DOOR LOCK CONTROL KNOB
6777120022WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-20022
6777122020WEATHERSTRIP, BACK DOOR TRIM, RH
main67771-22020
6777222010WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-22010
9011906139
main90119-06139
9046708047
main90467-08047
9054109030
main90541-09030
9095001429
main90950-01429
9354015010
main93540-15010
21 parts on this diagram · 1 diagram in section
