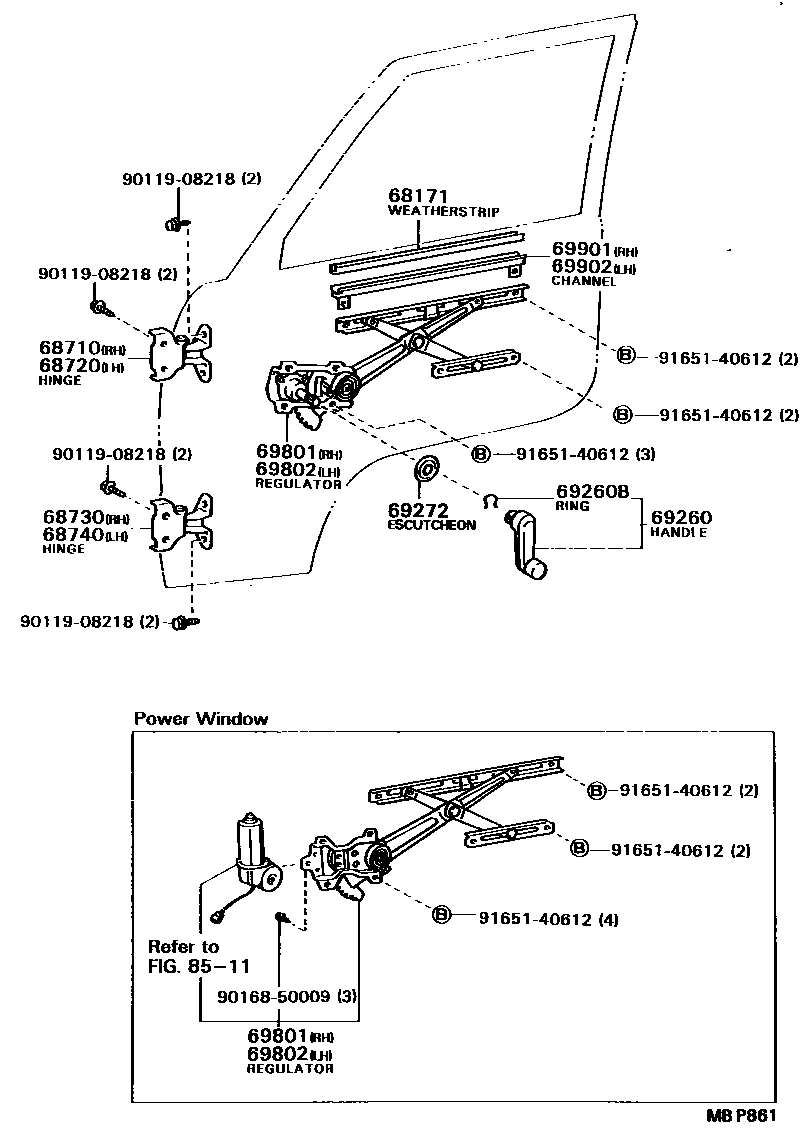

FRONT DOOR WINDOW REGULATOR & HINGE

68171WEATHERSTRIP, FRONT DOOR GLASS CHANNEL

main68171-22020iYR2#,3#198808-199001

sub69971-22010

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-87002iYR2#,3#198808-199001

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-87001iYR2#,3#198808-199001

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68720-87001iYR2#,3#198808-199001

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-87002iYR2#,3#198808-199001

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-10040-43iYR2#,3#198808-199001

GRAY,TRIM1#

sub69260-10040

sub69260-16010

main69260-10040-49iYR2#,3#198808-199001

BROWN,TRIM4#

sub69260-10040

sub69260-16010

main69260-10040-50iYR2#,3#198808-199001

BLUE,TRIM8#

sub69260-10040

sub69260-16010

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iYR2#,3#198808-199001

sub90520-01274

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iYR2#,3#198808-199001

NATURAL WHITE,TRIM1#,8#

sub69285-22010

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69810-87002iYR2#,3#198808-199001

main69810-87004iYR22,31..LE198808-199001

W(POWER WINDOW)

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69820-87002iYR2#,3#198808-199001

main69820-87004iYR22,31..LE198808-199001

W(POWER WINDOW)

69901CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH

main69901-87002iYR2#,3#198808-199001

69902CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH

main69901-87002iYR2#,3#198808-199001

8511

9011908218

main90119-08218

9016850009

main90168-50009

9165140612

main91651-40612

16 parts on this diagram · 1 diagram in section
