SIDE WINDOW
62113BGLASS, SIDE FRONT WINDOW, REAR RH
*TT,T=4.0
*TT,T=4.0,BRONZE
*TT,T=4.0,GRAY
62119PACKING, SIDE FRONT WINDOW, RH
62121GLASS, FRONT SIDE WINDOW, FRONT LH
*TT,T=4.0
*TT,T=4.0,BRONZE
*TT,T=4.0,GRAY
62128PACKING, SIDE FRONT WINDOW, LH
62229PACKING, SIDE WINDOW
62249PLATE, SIDE WINDOW, RH
62253WEATHERSTRIP, SIDE WINDOW, CENTER
62269FILM, SIDE WINDOW FRAME, RH
62282MOULDING, SIDE FRONT WINDOW
62707AFRAME SUB-ASSY, SIDE FRONT WINDOW, RH
62708FFRAME SUB-ASSY, SIDE FRONT WINDOW, LH
62712EGLASS, SIDE FRONT WINDOW, LH
62713KGLASS, SIDE WINDOW, REAR RH
*TT,T=3.5
*LAM,T=4.7,BLUE
*LAM,T=4.7,BRONZE
*TT,T=4.0,BRONZE
62714BGLASS, SIDE WINDOW, REAR LH
*LAM,T=4.7,BLUE
*LAM,T=4.7,BRONZE
*TT,T=3.5
*TT,T=4.0,BRONZE
62729BPAD, WINDOW CENTER SASH
62741CWEATHERSTRIP, SIDE FRONT WINDOW, LH
62754BWEATHERSTRIP, SIDE FRONT WINDOW, CENTER NO.2
62792APACKING, SIDE WINDOW LOCK, RH
62792BRETAINER, SIDE WINDOW LOCK
62910ELOCK ASSY, SIDE WINDOW
62918ASPACER, SIDE WINDOW FRAME
SIDE
LOWER
67436AFRAME, SIDE FRONT WINDOW, CENTER
67883DWEATHERSTRIP, QUARTER WINDOW, REAR
W(PRIVATE GLASS)
W(FIXED WINDOW)
67884DWEATHERSTIP, SIDE WINDOW, REAR LH
W(PRIVATE GLASS)
W(TINTED TEMPERED GLASS)
W(FIXED WINDOW)
W(FIXED WINDOW)
68113EGLASS, REAR DOOR, RH
*TEM,T=3.5
68141DRUN, SIDE FRONT WINDOW, RH
68142DRUN, SIDE FRONT WINDOW, LH
68163EWEATHERSTRIP, REAR DOOR GLASS
9015930005
main90159-30005
9016440050
main90164-40050
9046804064
main90468-04064

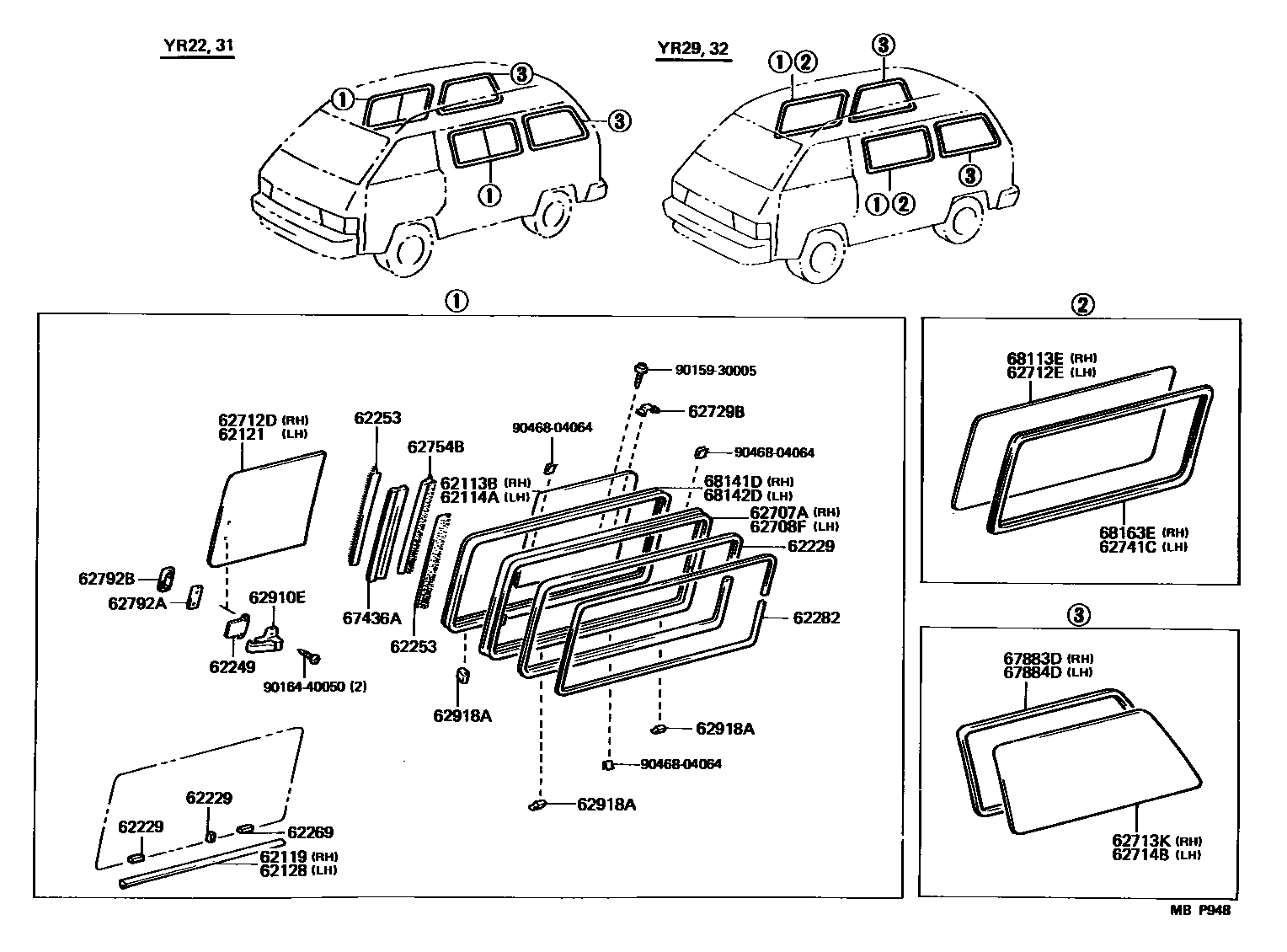

33 parts on this diagram · 1 diagram in section
