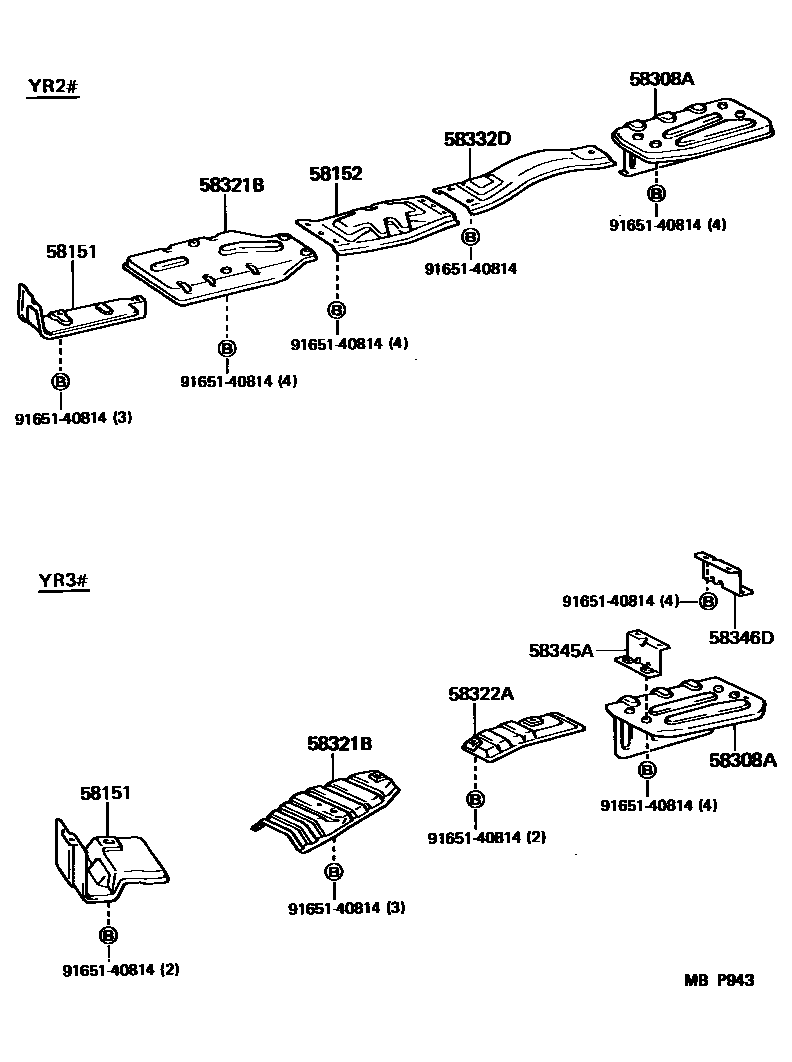

FLOOR INSULATOR
58151INSULATOR, FRONT FLOOR HEAT, NO.1
58152INSULATOR SUB-ASSY, CENTER FLOOR HEAT, NO.2
58308APANEL SUB-ASSY, HEAT PROOF
58321BINSULATOR, REAR FLOOR HEAT, NO.1
58322AINSULATOR, REAR FLOOR HEAT, REAR
58332DINSULATOR, REAR FLOOR HEAT, NO.3
58345ABRACKET, REAR FLOOR HEAT INSULATOR, NO.1
58346DBRACKET, REAR FLOOR HEAT INSULATOR, NO.2
9165140814
9 parts on this diagram · 1 diagram in section
