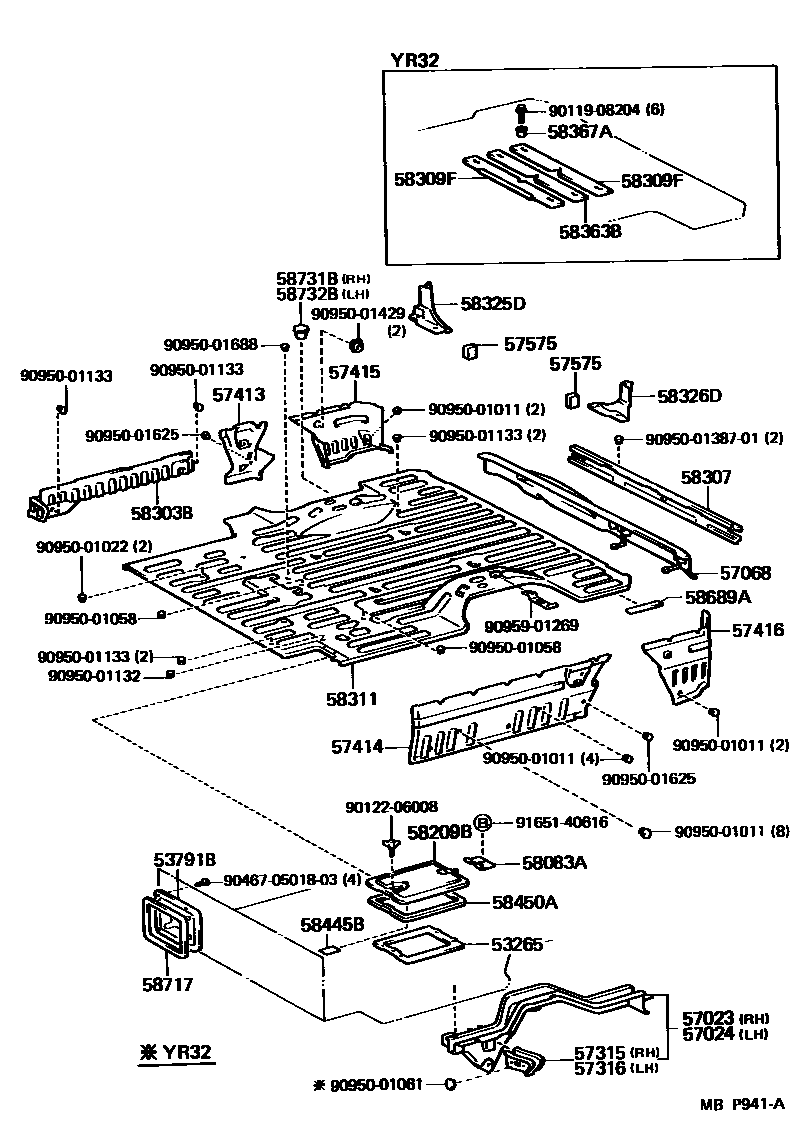

REAR FLOOR PANEL & REAR FLOOR MEMBER

0001 1 0002 1

53265PLATE, BATTERY CARRIER MOUNTING, NO.2

main53266-28020iYR2#198808-199001

53791BCOVER, COOL AIR INTAKE HOLE

main53791-87003iYR29,32;YR22,31..USA198808-199001

57023MEMBER SUB-ASSY, REAR SIDE, RH

main57023-28909iYR29198808-199001

main57023-28915iYR22198808-199001

main57023-28923iYR31198808-199001

main57023-28924iYR32198808-199001

57024MEMBER SUB-ASSY, REAR SIDE, LH

main57024-28909iYR29198808-199001

main57024-28914iYR22198808-199001

main57024-28920iYR31198808-199001

main57024-28921iYR32198808-199001

57068MEMBER SUB-ASSY, REAR FLOOR REAR CROSS, INNER

main57068-28031iYR29198808-199001

main57068-87007iYR22198808-199001

main57068-95D00iYR3#198808-199001

57315OUTRIGGER, NO.3 RH

main57315-28010iYR22,31198808-199001

main57315-28040iYR29,32198808-199001

sub57315-28080

57316OUTRIGGER, NO.3 LH

main57315-87004iYR2#,3#198808-199001

57413RAIL, FLOOR SIDE, CENTER RH

main57405-28011iYR22,31..LE198808-199001

main57413-28011iYR2#,3#..DLX,STD198808-199001

sub57405-28060

57414RAIL, FLOOR SIDE, CENTER LH

main57406-28031iYR29;YR32..CND198808-199001

main57406-28041iYR22;YR31..5F198808-199001

main57406-95D01iYR31..4FC198808-199001

main57406-95D02iYR32..USA198808-199001

57415RAIL, FLOOR SIDE, REAR RH

main57047-28030iYR29,32198808-199001

main57047-87007iYR22,31198808-199001

57416RAIL, FLOOR SIDE, REAR LH

main57048-28030iYR29,32198808-199001

main57048-87009iYR22,31198808-199001

57575PAD, DUSTPROOF FLOOR, REAR

main57575-87002iYR2#,3#198808-199001

58083AHINGE SUB-ASSY, BATTERY SERVICE COVER, MALE

main58083-87002iYR2#,3#198808-199001

58209BCOVER SUB-ASSY, BATTERY SERVICE HOLE

main58209-87001iYR2#,3#198808-199001

58303BSTEP SUB-ASSY, REAR FLOOR, RH

main58303-87001iYR2#,3#198808-199001

58307PANEL SUB-ASSY, BODY LOWER BACK

main58307-87004iYR2#198808-199001

main58307-95D00iYR3#198808-199001

58309FBALANCER SUB-ASSY, REAR FLOOR

main58309-28010iYR32198808-199001

RR

main58309-28020iYR32198808-199001

FR

58311PAN, REAR FLOOR

main58311-28041iYR22,31198808-199001

main58311-28060iYR29198808-199001

main58311-28071iYR22,31..LE198808-199001

W(CAPTAIN SEAT = BELT DOWN TYPE)

main58311-95D03iYR32198808-199001

58325DBRACE, REAR FLOOR PANEL, RH

main58325-87001iYR2#,3#198808-199001

58326DBRACE, REAR FLOOR PANEL, LH

main58326-87001iYR2#,3#198808-199001

58363BBALANCER, REAR FLOOR, NO.1

main58363-28020iYR32198808-199001

58367ABRACKET, REAR FLOOR BALANCER

main58367-28010iYR32198808-199001

58445BPAD, BATTERY SERVICE HOLE COVER

main58445-95J00iYR2#,3#198808-199001

sub82817-95707

58450APACKING, BATTERY SERVICE HOLE COVER

main58449-87002iYR2#,3#198808-199001

58689AWEIGHT, REAR FLOOR

main58689-95J00iYR31..5F;YR32..USA198808-199001

58717PACKING, COOLER AIR INLET COVER

main58717-87004iYR29,32;YR22,31..USA198808-199001

58731BCAP, REAR ABSORBER, RH

main58731-87002iYR22,3#198808-199001

58732BCAP, REAR ABSORBER, LH

main58732-87002iYR22,3#198808-199001

9011908204

main90119-08204

9012206008

main90122-06008

904670501803

main90467-0501803

9095001011

main90950-01011

9095001022

main90950-01022

9095001058

main90950-01058

9095001061

main90950-01061

9095001132

main90950-01132

9095001133

main90950-01133

909500138701

main90950-0138701

9095001429

main90950-01429

9095001625

main90950-01625

9095001688

main90950-01688

9095901269

main90959-01269

9165140616

main91651-40616

43 parts on this diagram · 2 diagrams in section
