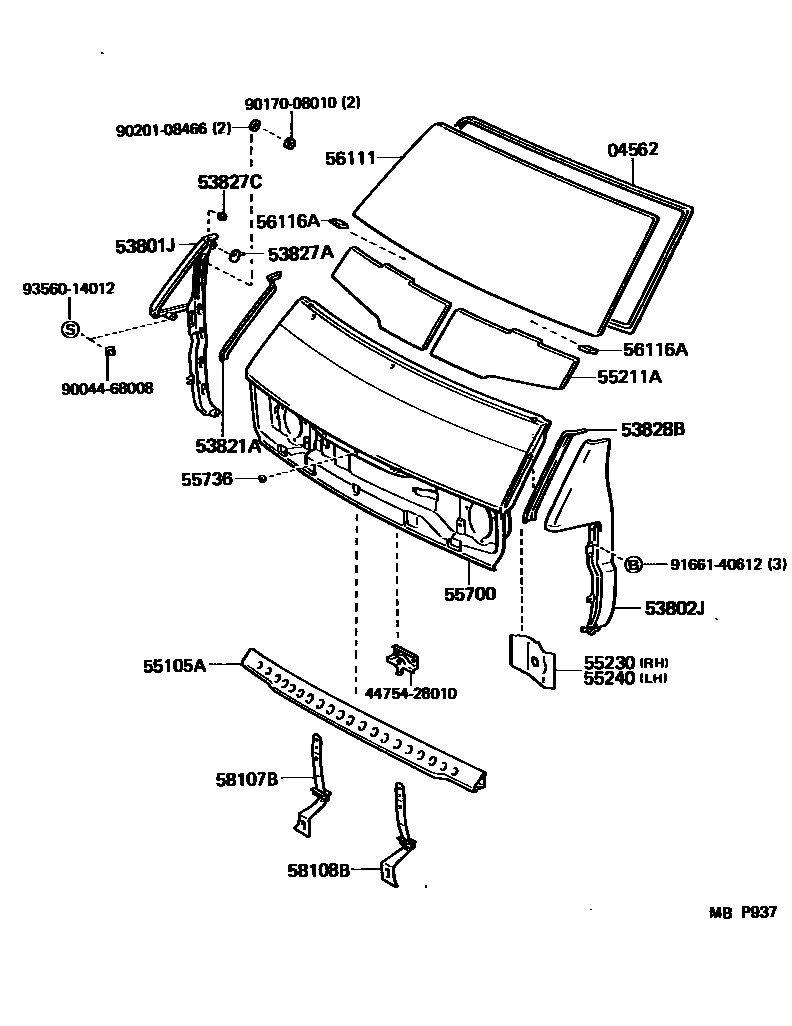

FRONT PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iYR2#,3#198808-199001

53801JPANEL SUB-ASSY, FRONT SIDE, RH

main53801-87005iYR2#,3#198808-199001

53802JPANEL SUB-ASSY, FRONT SIDE, LH

main53802-87005iYR2#,3#198808-199001

53821APROTECTOR, FRONT SIDE PANEL, NO.1 RH

main53821-87003iYR2#,3#198808-199001

53827ARETAINER, FRONT SIDE PANEL SET

main53827-95700iYR2#,3#198808-199001

53827CPROTECTOR, FRONT SIDE PANEL, NO.4

main53827-87001iYR2#,3#198808-199001

53828BPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-87004iYR2#,3#198808-199001

55105AMEMBER SUB-ASSY, FRONT PANEL

main55105-28020iYR2#,3#198808-199001

55211ASILENCER, FRONT PANEL, UPPER

main55211-28010iYR2#,3#198808-199001

LH

main55241-28010iYR2#,3#198808-199001

RH

55230SILENCER ASSY, HEADLAMP COVER, RH

main55230-28020iYR31;YR2#,32..CND;YR22..LE..USA198808-199001

55240SILENCER ASSY, HEADLAMP COVER, LH

main55240-28020iYR31;YR2#,32..CND;YR22..LE..USA198808-199001

55700PANEL ASSY, FRONT

main55701-28050iYR31;YR2#,32..CND;YR22..LE..USA198808-199001

COLD SPEC & W(FRONT HEATER-CORE SIZE 49MM)

main55701-28060iYR2#,32..(DLX,STD)..USA198808-199001

sub55701-28050

55736SEAL, WATER GUARD PLATE

main55736-28010iYR2#,3#198808-199001

56111GLASS, WINDSHIELD

main56111-28010iYR2#,3#..DLX,STD198808-199001

*LAM,T=5.3

main56111-28030iYR22,31..DLX198808-199001

*LAM,T=5.3,BRONZE

main56111-28040iYR22,31..LE198808-199001

*TL,T=5.3

sub56111-28030

56116ASPACER, WINDSHIELD GLASS

main56116-28010iYR2#,3#198808-199001

58107BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, RH

main58107-28020iYR2#,3#198808-199001

58108BREINFORCEMENT SUB-ASSY, FRONT CROSS TO FRONT PANEL, LH

main58108-28020iYR2#,3#198808-199001

4475428010BRACKET, AIR TUBE

main44754-28010

9004468008

main90044-68008

9017008010

main90170-08010

9020108466

main90201-08466

9166140612

main91661-40612

9356014012

main93560-14012

23 parts on this diagram · 1 diagram in section
