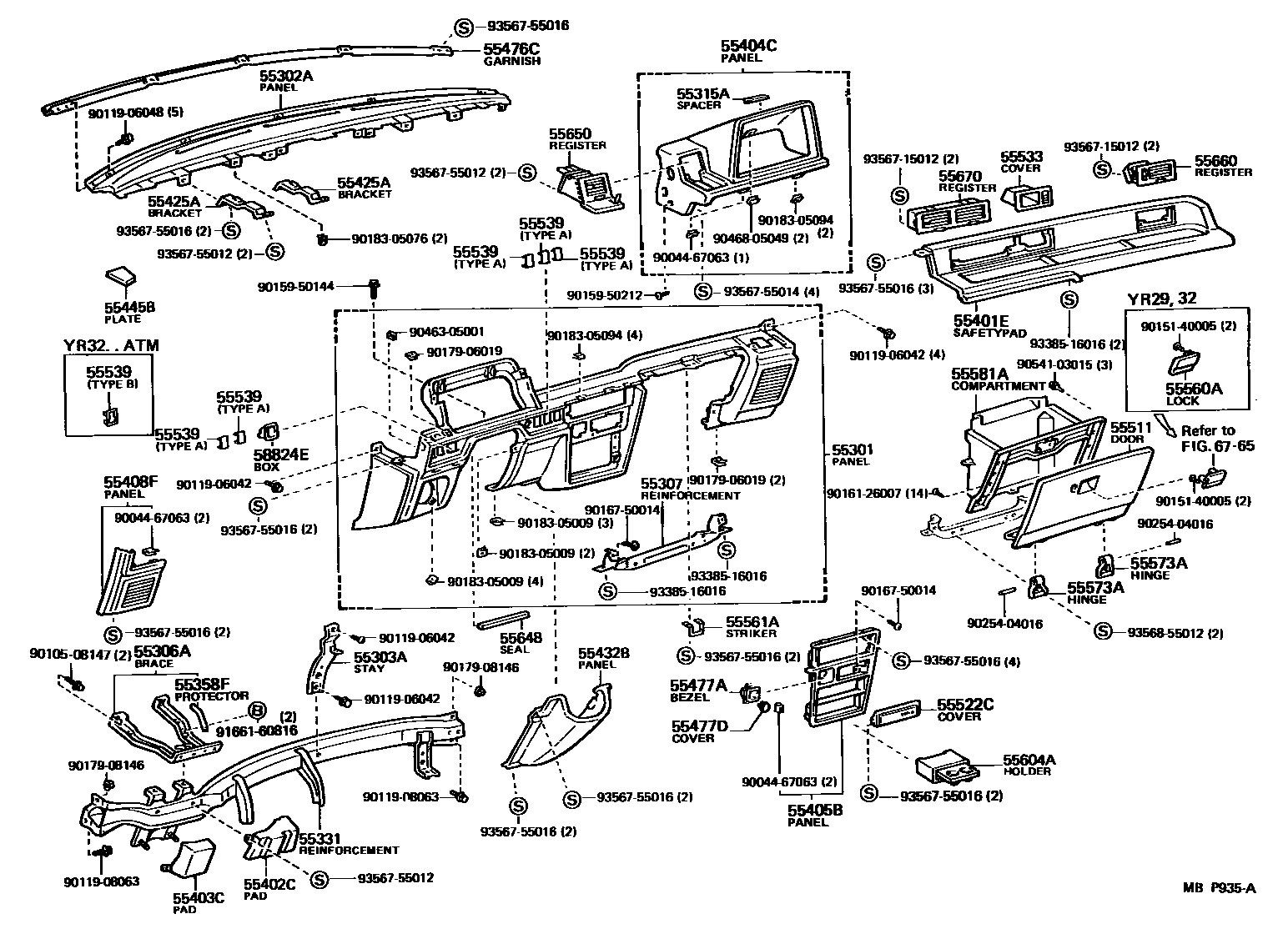

INSTRUMENT PANEL & GLOVE COMPARTMENT

55301PANEL SUB-ASSY, INSTRUMENT

main55301-28020-04iYR2#,3#198808-199001

BLUE,TRIM8#

sub55301-28020¥47,100

main55301-28020-13iYR2#,3#198808-199001

SHADOW GRAY,TRIM1#

sub55301-28020¥47,100

main55301-28020-16iYR2#,3#198808-199001

SABLE,TRIM4#

sub55301-28020¥47,100

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-28040iYR2#,3#¥13,600198808-199001

55303ASTAY SUB-ASSY, INSTRUMENT PANEL

main55303-28010iYR2#,3#¥620198808-199001

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-28010iYR2#,3#¥3,280198808-199001

55307REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER

main55307-87001iYR2#,3#¥4,940198808-199001

55315ASPACER, INSTRUMENT PANEL, NO.1

main55316-87001iYR2#,3#¥260198808-199001

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-28030iYR2#,3#¥16,800198808-199001

55358FPROTECTOR, EDGE

main55358-28010iYR2#,3#¥300198808-199001

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55401-28030-03iYR2#,3#198808-199001

SHADOW GRAY,TRIM1#

main55401-28030-04iYR2#,3#198808-199001

BLUE,TRIM8#

main55401-28030-16iYR2#,3#198808-199001

SABLE,TRIM4#

55402CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER RH

main55402-28010iYR2#,3#198808-199001

55403CPAD SUB-ASSY, INSTRUMENT PANEL, LOWER LH

main55403-28020iYR2#,3#¥2,300198808-199001

55404CPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2

main55404-28010-03iYR2#,3#198808-199001

SHADOW GRAY,TRIM1#

sub55404-28010¥23,000

main55404-28010-14iYR2#,3#198808-199001

BLUE,TRIM8#

sub55404-28010¥23,000

main55404-28010-16iYR2#,3#198808-199001

SABLE,TRIM4#

sub55404-28010¥23,000

55405BPANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER

main55405-28020iYR2#,3#¥4,150198808-199001

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55408-28020-04iYR2#,3#198808-199001

BLUE,TRIM8#

sub55408-28020¥4,230

main55408-28020-13iYR2#,3#198808-199001

SHADOW GRAY,TRIM1#

sub55408-28020¥4,230

main55408-28020-16iYR2#,3#198808-199001

SABLE,TRIM4#

sub55408-28020¥4,230

55425ABRACKET, METER HOOD SET

main55425-87001iYR2#,3#¥650198808-199001

55432BPANEL, INSTRUMENT PANEL FINISH, LOWER

main55432-87005-04iYR22,31..LE198808-199001

BLUE,TRIM8#

sub55432-87005¥3,140

main55432-87005-04iYR22,31..LE198808-199001

W(TILT STEERING),BLUE,TRIM8#

sub55432-87005¥3,140

main55432-87005-13iYR22,31..LE198808-199001

SHADOW GRAY,TRIM1#

sub55432-87005¥3,140

main55432-87005-13iYR22,31..LE198808-199001

W(TILT STEERING),SHADOW GRAY,TRIM1#

sub55432-87005¥3,140

main55432-87005-16iYR22,31..LE198808-199001

SABLE,TRIM4#

sub55432-87005¥3,140

main55432-87005-16iYR22,31..LE198808-199001

W(TILT STEERING),SABLE,TRIM4#

sub55432-87005¥3,140

main55432-87006-03iYR2#,3#..DLX,STD198808-199001

SHADOW GRAY,TRIM1#

sub55432-87006¥3,000

main55432-87006-04iYR2#,3#..DLX,STD198808-199001

BLUE,TRIM8#

sub55432-87006¥3,000

main55432-87006-16iYR2#,3#..DLX,STD198808-199001

SABLE,TRIM4#

sub55432-87006¥3,000

55445BPLATE, INSTRUMENT PANEL FINISH

main55445-87001iYR2#,3#¥170198808-199001

55476CGARNISH, INSTRUMENT PANEL FINISH PLATE

main55476-28010iYR2#,3#¥1,830198808-199001

55477ABEZEL, CIGARETTE LIGHTER HOLE

main55477-87001iYR29,32¥1,200198808-199001

55477DCOVER, CIGARETTE LIGHTER HOLE

main55477-10010-01iYR29,32198808-199001

BLACK,TRIM1#,4#,8#

sub55477-10010¥370

55511DOOR, GLOVE COMPARTMENT

main55511-28010-13iYR22,31198808-199001

SHADOW GRAY,TRIM1#

sub55511-28010¥8,700

main55511-28010-13iYR22,31198808-199001

W(GLOVE CONPERTMENT LOCK),SHADOW GRAY,TRIM1#

sub55511-28010¥8,700

main55511-28010-14iYR22,31198808-199001

BLUE,TRIM8#

sub55511-28010¥8,700

main55511-28010-14iYR22,31198808-199001

W(GLOVE CONPERTMENT LOCK),BLUE,TRIM8#

sub55511-28010¥8,700

main55511-28010-16iYR22,31198808-199001

SABLE,TRIM4#

sub55511-28010¥8,700

main55511-28010-16iYR22,31198808-199001

W(GLOVE CONPERTMENT LOCK),SABLE,TRIM4#

sub55511-28010¥8,700

main55511-28020-03iYR29,32198808-199001

SHADOW GRAY,TRIM1#

main55511-28020-04iYR29,32198808-199001

BLUE,TRIM8#

main55511-28020-16iYR29,32198808-199001

SABLE,TRIM4#

55522CCOVER, RADIO RECEIVER OPENING

main55522-32010iYR2#,3#..DLX,STD¥1,620198808-199001

sub55522-20070¥1,690

55533COVER, AUTO CLOCK HOLE

main55423-28020-03iYR22,31..LE198808-199001

SHADOW GRAY,TRIM1#

sub55423-28020¥1,570

main55423-28020-03iYR22,31..LE198808-199001

W(DIGITAL CLOCK),SHADOW GRAY,TRIM1#

sub55423-28020¥1,570

main55423-28020-04iYR22,31..LE198808-199001

BLUE,TRIM8#

sub55423-28020¥1,570

main55423-28020-04iYR22,31..LE198808-199001

W(DIGITAL CLOCK),BLUE,TRIM8#

sub55423-28020¥1,570

main55423-28020-16iYR22,31..LE198808-199001

SABLE,TRIM4#

sub55423-28020¥1,570

main55423-28020-16iYR22,31..LE198808-199001

W(DIGITAL CLOCK),SABLE,TRIM4#

sub55423-28020¥1,570

main55533-28020-03iYR2#,3#..DLX,STD198808-199001

SHADOW GRAY,TRIM1#

sub55533-28020¥1,290

main55533-28020-04iYR2#,3#..DLX,STD198808-199001

BLUE,TRIM8#

sub55533-28020¥1,290

main55533-28020-16iYR2#,3#..DLX,STD198808-199001

SABLE,TRIM4#

sub55533-28020¥1,290

55539COVER, SPARE SWITCH HOLE

main55539-32010-11iYR2#,3#198808-199001

BLACK,TRIM1#,4#,8#

sub55539-32010¥460

sub55539-32030¥470

main55539-87005iYR32..USA¥640198808-199001

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-16010-13iYR29,32198808-199001

GRAY,TRIM1#

sub55560-16010¥3,450

main55560-16010-24iYR29,32198808-199001

BLUE,TRIM8#

sub55560-16010¥3,450

main55560-16010-26iYR29,32198808-199001

BROWN,TRIM4#

sub55560-16010¥3,450

55561ASTRIKER, GLOVE COMPARTMENT DOOR LOCK

main55561-32010iYR2#,3#¥680198808-199001

55573AHINGE, GLOVE COMPARTMENT DOOR

main55573-32010iYR2#,3#¥360198808-199001

LH

main55573-87001iYR2#,3#¥340198808-199001

RH

55581ACOMPARTMENT, GLOVE

main55581-87002iYR2#,3#¥9,500198808-199001

55604AHOLDER SUB-ASSY, INSTRUMENT PANEL CUP

main55604-28010iYR2#,3#¥7,100198808-199001

55648SEAL, INSTRUMENT PANEL UNDER COVER, NO.1

main55648-87001iYR22,31..LE¥190198808-199001

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-28020-03iYR2#,3#198808-199001

SHADOW GRAY,TRIM1#

sub55650-28020¥14,300

main55650-28020-04iYR2#,3#198808-199001

BLUE,TRIM8#

sub55650-28020¥14,300

main55650-28020-16iYR2#,3#198808-199001

SABLE,TRIM4#

sub55650-28020¥14,300

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-28020-03iYR2#,3#198808-199001

SHADOW GRAY,TRIM1#

sub55660-28020¥5,800

main55660-28020-04iYR2#,3#198808-199001

BLUE,TRIM8#

sub55660-28020¥5,800

main55660-28020-16iYR2#,3#198808-199001

SABLE,TRIM4#

sub55660-28020¥5,800

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-28010-03iYR2#,3#198808-199001

SHADOW GRAY,TRIM1#

sub55670-28010¥6,300

main55670-28010-04iYR2#,3#198808-199001

BLUE,TRIM8#

sub55670-28010¥6,300

main55670-28010-16iYR2#,3#198808-199001

SABLE,TRIM4#

sub55670-28010¥6,300

58824EBOX, INSTRUMENT PANEL COIN

main58824-87002iYR2#;YR3#..5F¥650198808-199001

6765

9004467063

main90044-67063¥650

9010508147

main90105-08147

9011906042

main90119-06042¥130

9011906048

main90119-06048¥90

9011908063

main90119-08063¥120

9015140005

main90151-40005¥90

9015950144

main90159-50144¥70

9015950212

main90159-50212¥130

9016126007

main90161-26007¥120

9016750014

main90167-50014¥110

9017906019

main90179-06019¥180

9017908146

main90179-08146¥180

9018305009

main90183-05009¥90

9018305076

main90183-05076¥250

9018305094

main90183-05094¥90

9025404016

main90254-04016¥160

9046305001

main90463-05001¥120

9046805049

main90468-05049¥240

9054103015

main90541-03015¥110

9166160816

main91661-60816¥130

9338516016

main93385-16016¥80

9356715012

main93567-15012¥120

9356755012

main93567-55012¥120

9356755014

main93567-55014¥110

9356755016

main93567-55016¥110

9356855012

main93568-55012¥60

61 parts on this diagram · 1 diagram in section
