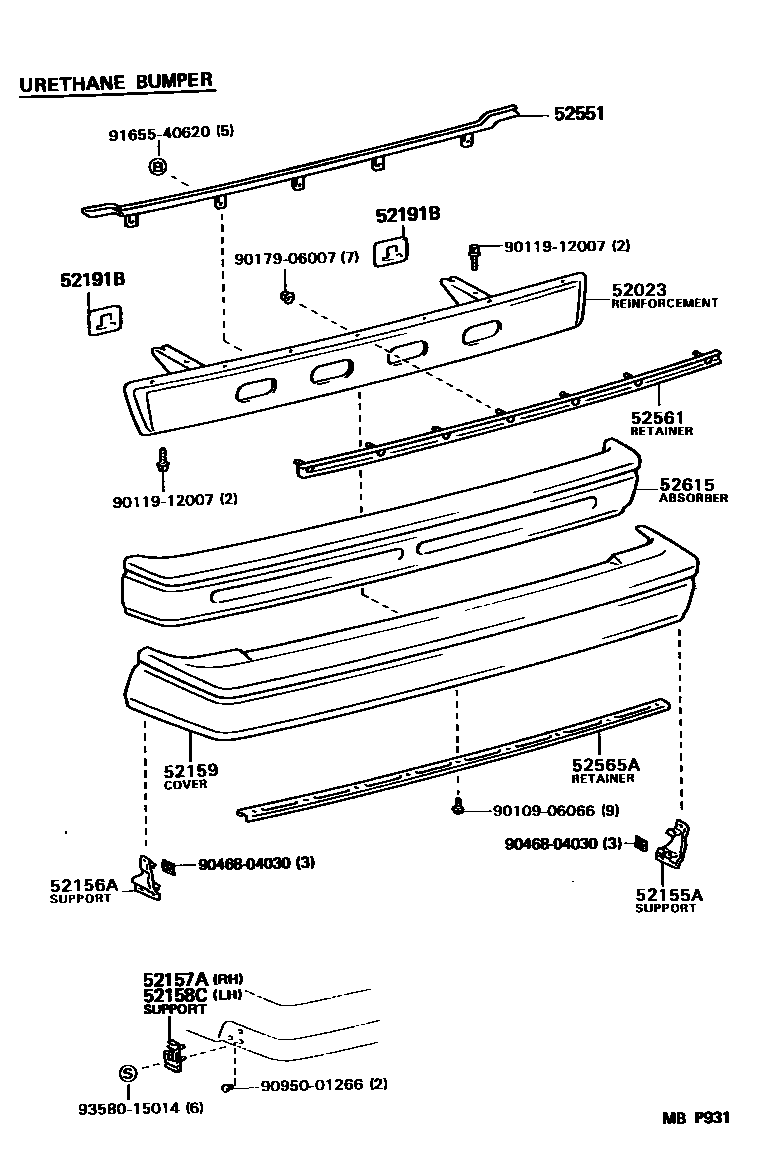

REAR BUMPER & BUMPER STAY

0001 1 0002 1

52023REINFORCEMENT SUB-ASSY, REAR BUMPER

main52023-28030iYR22,31¥35,900198808-199001

W(URETHANE BUMPER)

main52023-87001iYR32¥26,900198808-199001

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-28020iYR22,31¥1,160198808-199001

W(URETHANE BUMPER)

main52155-87001iYR29,32¥600198808-199001

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-87001iYR29,32¥600198808-199001

main52156-28010iYR22,31¥1,160198808-199001

W(URETHANE BUMPER)

52157ASUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-28030iYR29,32¥800198808-199001

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-28020iYR29,32¥1,030198808-199001

52159COVER, REAR BUMPER

main52159-28010iYR22,31..DLX¥32,700198808-199001

W(URETHANE BUMPER)

main52159-28900iYR22,31..LE¥32,700198808-199001

main52159-87001iYR29,32¥21,200198808-199001

52191BGROMMET, REAR BUMPER STAY

main52191-28010iYR22,31¥1,610198808-199001

W(URETHANE BUMPER)

main52191-87002iYR29,32¥1,780198808-199001

52551FILLER, REAR BUMPER

main52551-28010iYR29,32¥5,700198808-199001

52561RETAINER, REAR BUMPER, UPPER CENTER

main52305-28010iYR29,32¥2,200198808-199001

52565ARETAINER, REAR BUMPER, LOWER

main52565-28010iYR29,32¥2,580198808-199001

52615ABSORBER, REAR BUMPER ENERGY

main52615-28010iYR29,32¥14,500198808-199001

9010906066

main90109-06066¥250

9011912007

main90119-12007¥260

9017906007

main90179-06007¥80

9046804030

main90468-04030¥140

9095001266

main90950-01266¥220

9165540620

main91655-40620¥120

9358015014

main93580-15014¥190

18 parts on this diagram · 2 diagrams in section
