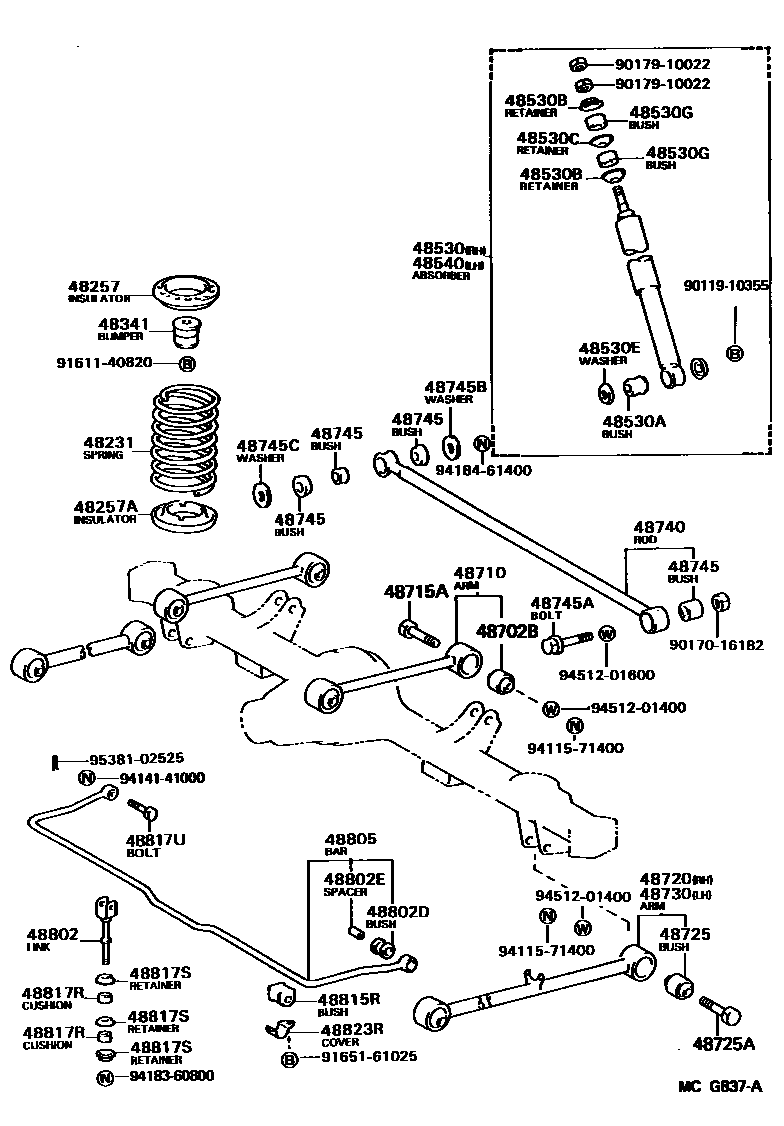

REAR SPRING & SHOCK ABSORBER
48257INSULATOR, REAR COIL SPRING
48257AINSULATOR, REAR COIL SPRING, LOWER
48530ABUSH(FOR REAR SHOCK ABSORBER)
48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1
LWR
UPR
48530CWASHER, REAR SHOCK ABSORBER CUSHION, NO.2
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48530GCUSHION, REAR SHOCK ABSORBER, NO.1
LWR
UPR
48702BBUSH SUB-ASSY, TRAILING ARM, NO.1
sub48702-14020
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
48725BUSH, LOWER CONTROL ARM
48725ABOLT(FOR LOWER CONTROL ARM)
48745BUSH, LATERAL CONTROL ROD
ROD X BODY
ROD X HOUSING,L=15
ROD X HOUSING,L=12
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48745BWASHER, LATERAL CONTROL ROD CUSHION
48745CWASHER, LATERAL CONTROL ROD CUSHION
48802DBUSH, STABILIZER LINK
48802ESPACER(FOR REAR STABILIZER BAR)
48805BAR SUB-ASSY, REAR STABILIZER
48817RCUSHION, STABILIZER(FOR REAR)
48817SRETAINER, CUSHION, NO.1(FOR STABILIZER REAR BAR)
T=1.2
T=1.0
48817UBOLT(FOR REAR STABILIZER)
48823RCOVER, STABILIZER LINK(FOR REAR)
9011910355
main90119-10355
9017016182
main90170-16182
9017910022
main90179-10022
9161140820
main91611-40820
9165161025
main91651-61025
9411571400
main94115-71400
9414141000
main94141-41000
9418360800
main94183-60800
9418461400
main94184-61400
9451201400
main94512-01400
9451201600
main94512-01600
9538102525
main95381-02525
44 parts on this diagram · 4 diagrams in section
