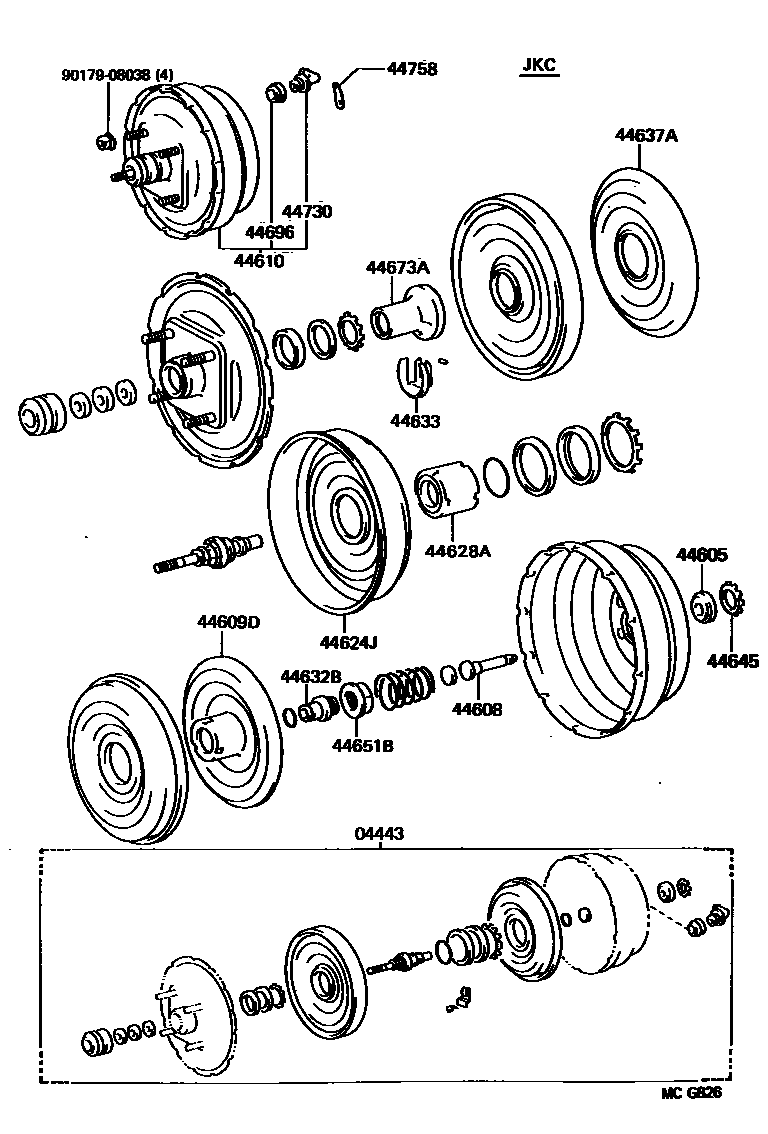

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

04443BOOSTER KIT, BRAKE

main04443-28200iYR2#,3#198808-199001

JKC

44605PLATE & SEAL SUB-ASSY, BOOSTER

main44605-30350iYR2#,3#198808-199001

sub44605-10080

44608PUSH ROD SUB-ASSY, BOOSTER

main44608-17090iYR2#,3#198808-199001

44609DPLATE & RETAINER SUB-ASSY, BOOSTER

main44609-26380iYR2#,3#198808-199001

44610BOOSTER ASSY, BRAKE

main44610-28300iYR2#,3#198808-199001

44624JPLATE, BOOSTER CENTER

main44624-28300iYR2#,3#198808-199001

44628ABODY, BOOSTER CENTER

main44628-20810iYR2#,3#198808-199001

44632BHUB, BOOSTER REACTION DISK

main44632-28300iYR2#,3#198808-199001

44633KEY, BOOSTER VALVE PLUNGER

main44633-20811iYR2#,3#198808-199001

44637APLATE, BOOSTER DIAPHRAGM

main44637-28300iYR2#,3#198808-199001

44645RETAINER, BOOSTER PUSH ROD SEAL

main44645-10080iYR2#,3#198808-199001

44651BNUT, BOOSTER

main44651-20810iYR2#,3#198808-199001

44673ABODY, BOOSTER VALVE

main44673-20810iYR2#,3#198808-199001

44696GROMMET, CHECK VALVE

main90480-24015iYR2#,3#198808-199001

JKC

main90480-24439iYR2#,3#198808-199001

AISIN

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-28010iYR2#,3#198808-199001

JKC

44758BRACKET, VACUUM CHECK VALVE

main44758-28070iYR2#,3#198808-199001

9017908038

main90179-08038

17 parts on this diagram · 3 diagrams in section
