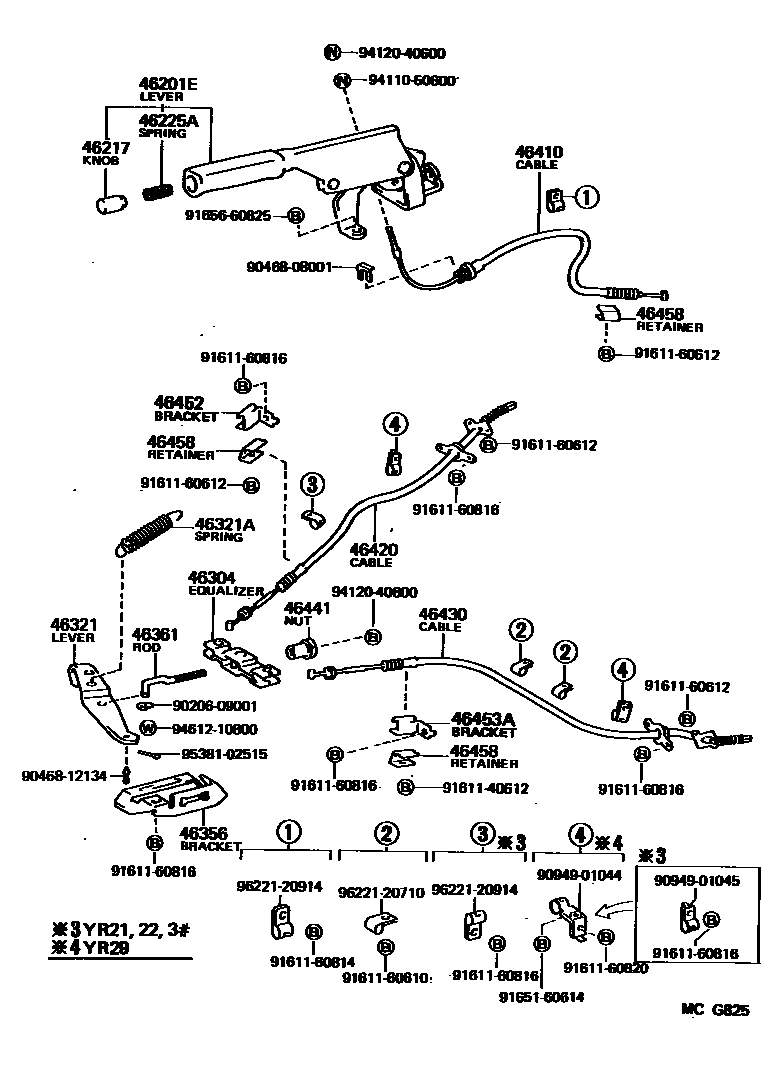

PARKING BRAKE & CABLE

46201ELEVER SUB-ASSY, PARKING BRAKE

main46201-28022-03iYR29,32198808-199001

SHADOW GRAY,TRIM1#

sub46201-28022

main46201-28022-04iYR29,32198808-199001

BLUE,TRIM8#

sub46201-28022

main46201-28022-06iYR29,32198808-199001

BROWN,TRIM4#

sub46201-28022

main46201-28042-03iYR22,31198808-199001

SHADOW GRAY,TRIM1#

sub46201-28042

main46201-28042-03iYR22,31198808-199001

W(SOFT VINYL SHIFT LEVER KNOB),SHADOW GRAY,TRIM1#

sub46201-28042

main46201-28042-03iYR22,31198808-199001

W(URETHAN SHIFT LEVER KNOB),SHADOW GRAY,TRIM1#

sub46201-28042

main46201-28042-04iYR22,31198808-199001

BLUE,TRIM8#

sub46201-28042

main46201-28042-04iYR22,31198808-199001

W(SOFT VINYL SHIFT LEVER KNOB),BLUE,TRIM8#

sub46201-28042

main46201-28042-04iYR22,31198808-199001

W(URETHAN SHIFT LEVER KNOB),BLUE,TRIM8#

sub46201-28042

main46201-28042-06iYR22,31198808-199001

BROWN,TRIM4#

sub46201-28042

main46201-28042-06iYR22,31198808-199001

W(SOFT VINYL SHIFT LEVER KNOB),BROWN,TRIM4#

sub46201-28042

main46201-28042-06iYR22,31198808-199001

W(URETHAN SHIFT LEVER KNOB),BROWN,TRIM4#

sub46201-28042

46217KNOB, PARKING BRAKE RELEASE ROD

main46217-12020-03iYR2#,3#198808-199001

SHADOW GRAY,TRIM1#

sub46217-12020

sub46217-16030

main46217-12020-04iYR2#,3#198808-199001

DEEP BLUE,TRIM8#

sub46217-12020

sub46217-16030

main46217-12020-06iYR2#,3#198808-199001

BROWN,TRIM4#

sub46217-12020

sub46217-16030

46225ASPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)

main90501-10069iYR2#,3#198808-198810

main90501-10132iYR2#,3#198810-199001

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46304-22020iYR2#,3#198808-199001

46321LEVER, PARKING BRAKE INTERMEDIATE

main46321-28042iYR2#,3#198808-199001

46321ASPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER)

main90506-11006iYR2#,3#198808-199001

46356BRACKET, EQUALIZER SUPPORT

main46356-28030iYR2#,3#198808-199001

46361ROD, PARKING BRAKE PULL

main46361-28031iYR2#,3#198808-199001

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-28073iYR2#,3#198808-199001

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-28111iYR22198808-199001

main46420-28120iYR29198808-199001

main46420-28130iYR3#198808-199001

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-28113iYR22198808-199001

main46430-28121iYR29198808-199001

main46430-28132iYR3#198808-199001

46441NUT, WIRE ADJUSTING, NO.1

main46441-35010iYR2#,3#198808-199001

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46452-28060iYR2#,3#198808-199001

46453ABRACKET, CABLE SUPPORT, NO.3

main46453-28010iYR2#,3#198808-199001

46458RETAINER, CABLE

main46458-28010iYR2#,3#198808-199001

FR CABLE

main46458-28010iYR2#,3#198808-199001

RR CABLE

9020609001

main90206-09001

9046808001

main90468-08001

9046812134

main90468-12134

9094901044

main90949-01044

9094901045

main90949-01045

9161140612

main91611-40612

9161160610

main91611-60610

9161160612

main91611-60612

9161160814

main91611-60814

9161160816

main91611-60816

9161160820

main91611-60820

9165160614

main91651-60614

9165660825

main91656-60825

9411050600

main94110-50600

9412040600

main94120-40600

9412040800

main94120-40800

9461210800

main94612-10800

9538102515

main95381-02515

9622120710

main96221-20710

9622120914

main96221-20914

35 parts on this diagram · 1 diagram in section
