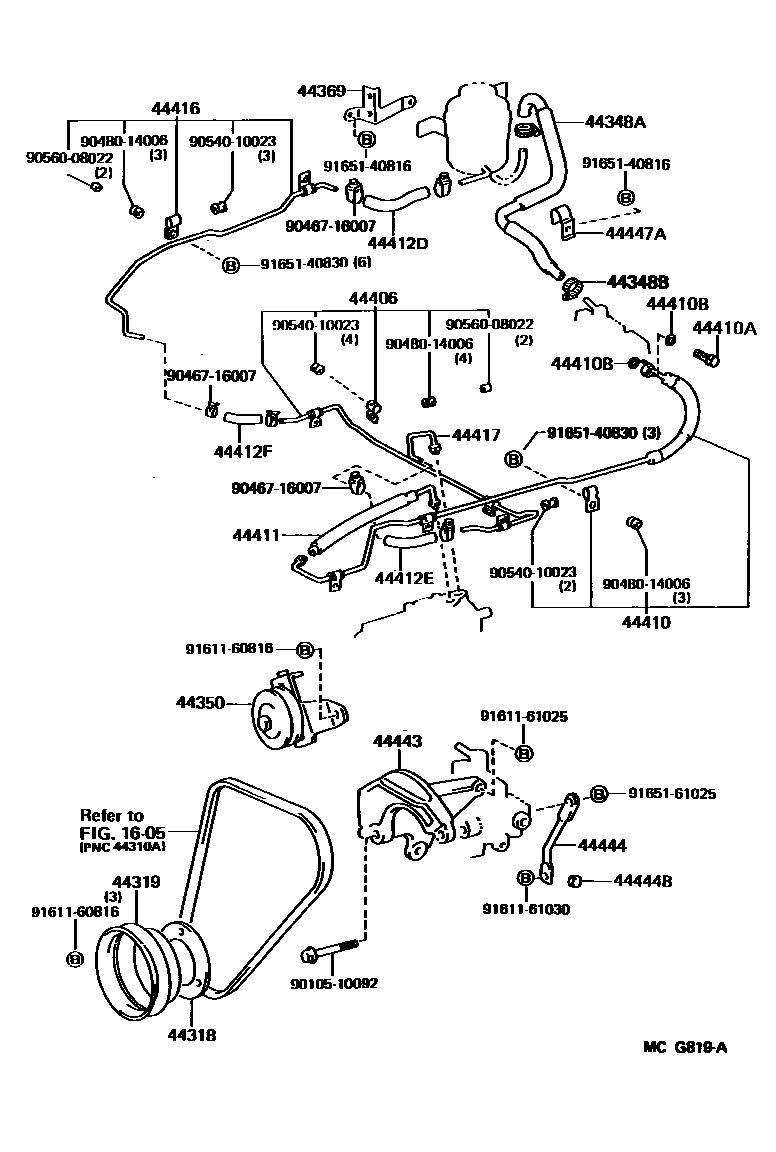

POWER STEERING TUBE
1605
44318SPACER, VANE PUMP DRIVE PULLEY
44319PULLEY, VANE PUMP DRIVE
44348AHOSE, OIL RESERVOIR TO PUMP, NO.1
44348BCLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
sub90467-21010
44350PULLEY ASSY, POWER STEERING IDLE
44369BRACKET, OIL RESERVOIR, NO.1
44406TUBE SUB-ASSY, RETURN
44410ABOLT, UNION(FOR PRESSURE FEED TUBE)
44410BGASKET(FOR PRESSURE FEED TUBE)
44412DHOSE, RETURN, NO.1
44412FHOSE, RETURN, NO.3
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
W(POWER STEERING)
44443BRACKET, PUMP
44444STAY, PUMP, REAR
44444BCOLLAR (FOR PUMP REAR STAY)
44447ABRACKET, HOSE SUPPORT, NO.1
9010510092
main90105-10092
9046716007
main90467-16007
9048014006
main90480-14006
9054010023
main90540-10023
9056008022
main90560-08022
9161160816
main91611-60816
9161161025
main91611-61025
9161161030
main91611-61030
9165140816
main91651-40816
9165140830
main91651-40830
9165161025
main91651-61025
32 parts on this diagram · 2 diagrams in section
