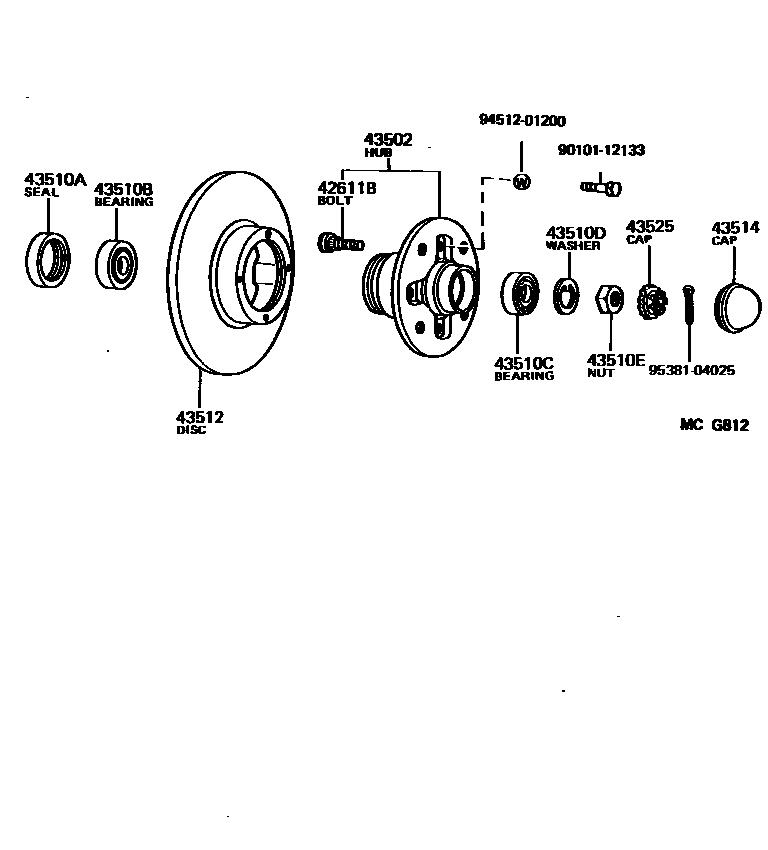

FRONT AXLE HUB

0001 1 0002 1 0003 1

42611BBOLT, HUB (FOR FRONT AXLE)

main90942-02047iYR3#198808-199001

main90942-02048iYR2#198808-199001

43502HUB SUB-ASSY, FRONT AXLE

main43502-28020iYR3#198808-199001

main43502-28030iYR2#198808-199001

43510ASEAL, OIL (FOR FRONT AXLE HUB)

main90311-48001iYR2#198808-199001

main90311-66002iYR3#198808-199001

43510BBEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)

main90366-50011iYR3#198808-199001

main90368-31067iYR2#198808-199001

43510CBEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)

main90368-19037iYR2#198808-199001

main90368-45087iYR3#198808-199001

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90214-20005iYR2#198808-199001

main90214-42030iYR32198808-199001

43510ENUT (FOR STEERING KNUCKLE)

main90170-19185iYR2#198808-199001

43512DISC, FRONT

main43512-28040iYR3#198808-199001

sub43512-28140

main43512-28050iYR2#198808-198811

sub43512-28051

main43512-28051iYR2#198811-199001

43514CAP, FRONT HUB GREASE

main43514-27010iYR2#198808-199001

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-22010iYR2#198808-199001

9010112133

main90101-12133

9451201200

main94512-01200

9538104025

main95381-04025

13 parts on this diagram · 3 diagrams in section
