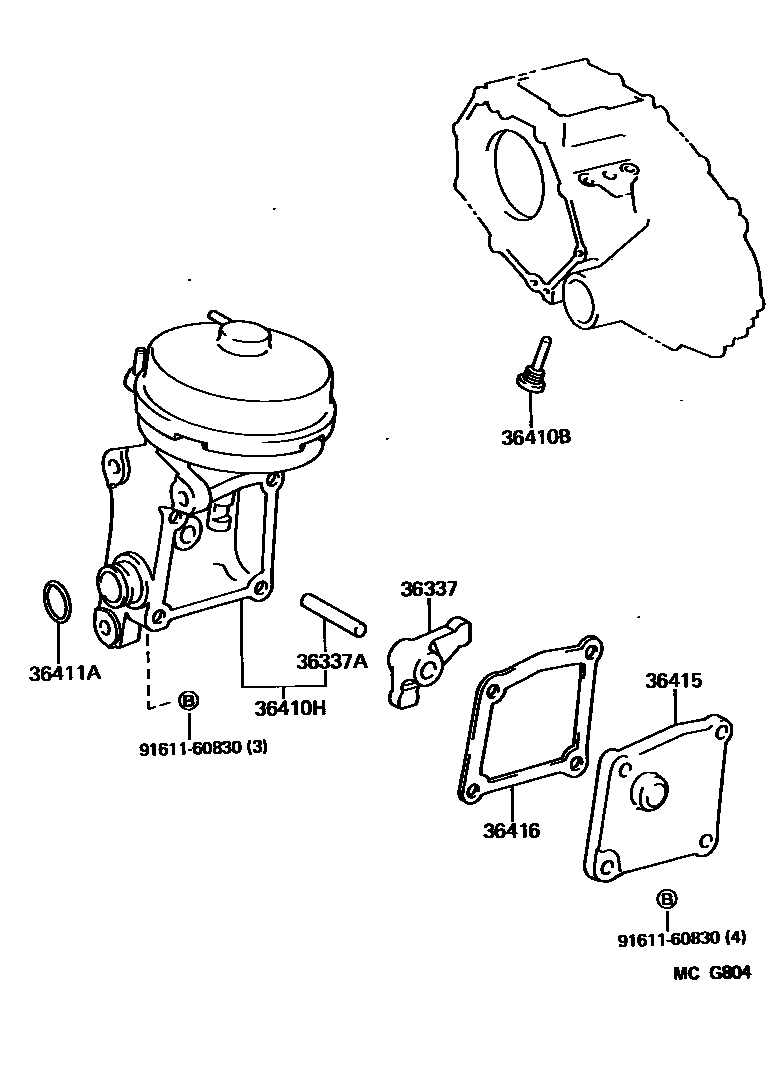

DIAPHRAGM CYLINDER & TRANSFER VACUUM ACTUATOR

36337LEVER, FRONT DRIVE SHIFT LINK

main36337-28010iYR3#..4FC198808-199001

36337APIN, STRAIGHT (FOR FRONT DRIVE SHIFT LINK LEVER)

main90250-10018iYR3#..4FC198808-199001

36410BPLUG, W/HEAD STRAIGHT SCREW

main90341-12021iYR3#..4FC198808-199001

36410HACTUATOR ASSY, TRANSFER VACUUM

main36410-28010iYR3#..4FC198808-199001

sub36410-28011

36411ARING, O (FOR DIAPHRAGM CYLINDER)

main96721-24022iYR3#..4FC198808-199001

36415COVER, DIAPHRAGM CYLINDER

main36415-28010iYR3#..4FC198808-199001

36416GASKET, DIAPHRAGM CYLINDER

main36416-28010iYR3#..4FC198808-199001

9161160830

main91611-60830

8 parts on this diagram · 1 diagram in section
