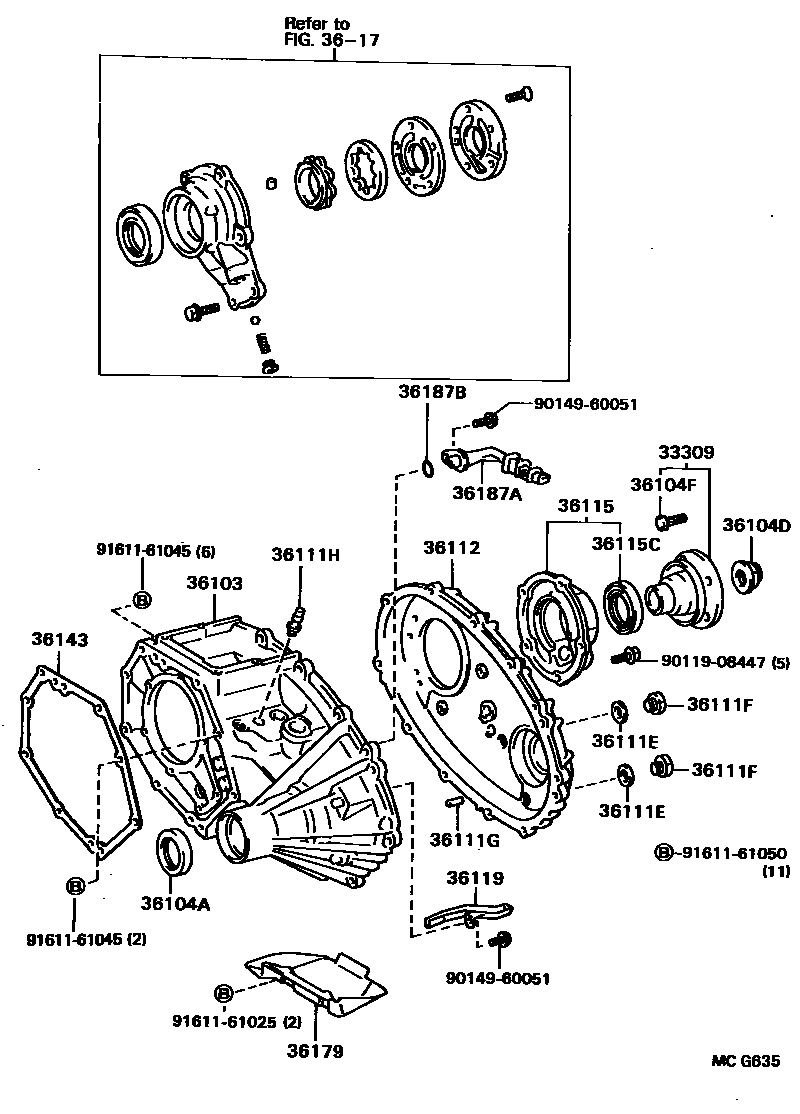

TRANSFER CASE & EXTENSION HOUSING
36103CASE SUB-ASSY, TRANSFER
sub36103-28020
sub36103-26020
sub36184-28030
sub36187-25010
sub90149-60051
sub90341-12014
sub90341-14008
sub96411-12800
sub96721-24017
36104DNUT (FOR TRANSFER OUTPUT SHAFT)
36104FBOLT (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE)
36111EGASKET (FOR TRANSFER CASE)
36111FPLUG (FOR TRANSFER CASE)
FILLER
DRAIN
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
L=14,OD=10
36111HPLUG, BREATHER (FOR TRANSFER CASE)
36112CASE, TRANSFER, REAR
W(FREE WHEEL HUB)
36115HOUSING, TRANSFER EXTENSION
sub36105-28020
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
sub90311-52021
36119RECEIVER, TRANSFER OIL, NO.1
36143GASKET, TRANSFER CASE, FRONT
3617
36187ASTRAINR, TRANSFER OIL, NO.1
36187BRING, O (FOR TRANSFER OIL STRAINER)
9011908447
main90119-08447
9014960051
main90149-60051
9161161025
main91611-61025
9161161045
main91611-61045
9161161050
main91611-61050
23 parts on this diagram · 1 diagram in section
