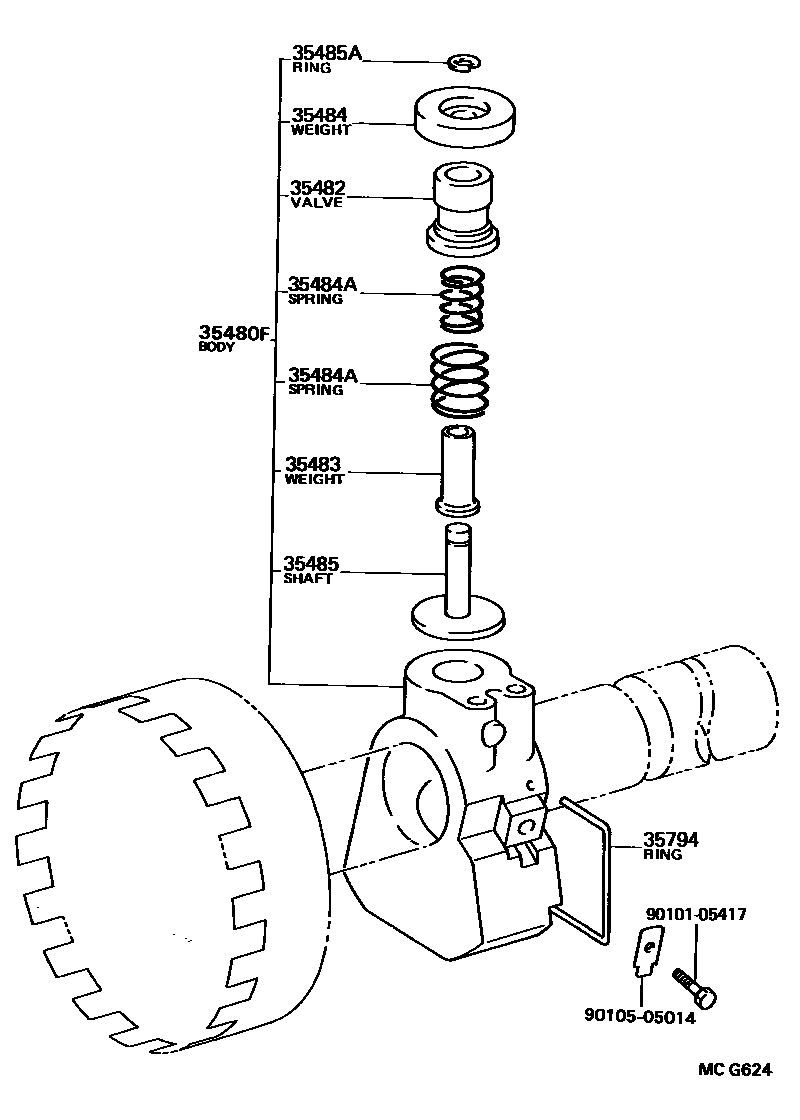

REAR OIL PUMP & GOVERNOR (ATM)

35480FBODY ASSY, GOVERNOR

main35480-28020iYR2#,3#..4FC198808-199001

35482VALVE, GOVERNOR

main35482-28020iYR2#,3#..4FC198808-199001

35483WEIGHT, GOVERNOR, INNER

main35483-14010iYR2#,3#..4FC198808-199001

35484WEIGHT, GOVERNOR, OUTER

main35484-22010iYR2#,3#..4FC198808-199001

35484ASPRING, COMPRESSION (FOR GOVERNOR WEIGHT)

main90501-09049iYR2#,3#..4FC198808-199001

INNER

main90501-09069iYR2#,3#..4FC198808-199001

OUTER

35485SHAFT, GOVERNOR VALVE

main35485-14010iYR2#,3#..4FC198808-199001

35485ARING, E (FOR GOVERNOR VALVE SHAFT)

main90523-05020iYR2#,3#..4FC198808-199001

35794RING, GOVERNOR RETAINING

main35794-22010iYR2#,3#..4FC198808-199001

9010105417

main90101-05417

9010505014

main90105-05014

10 parts on this diagram · 1 diagram in section
