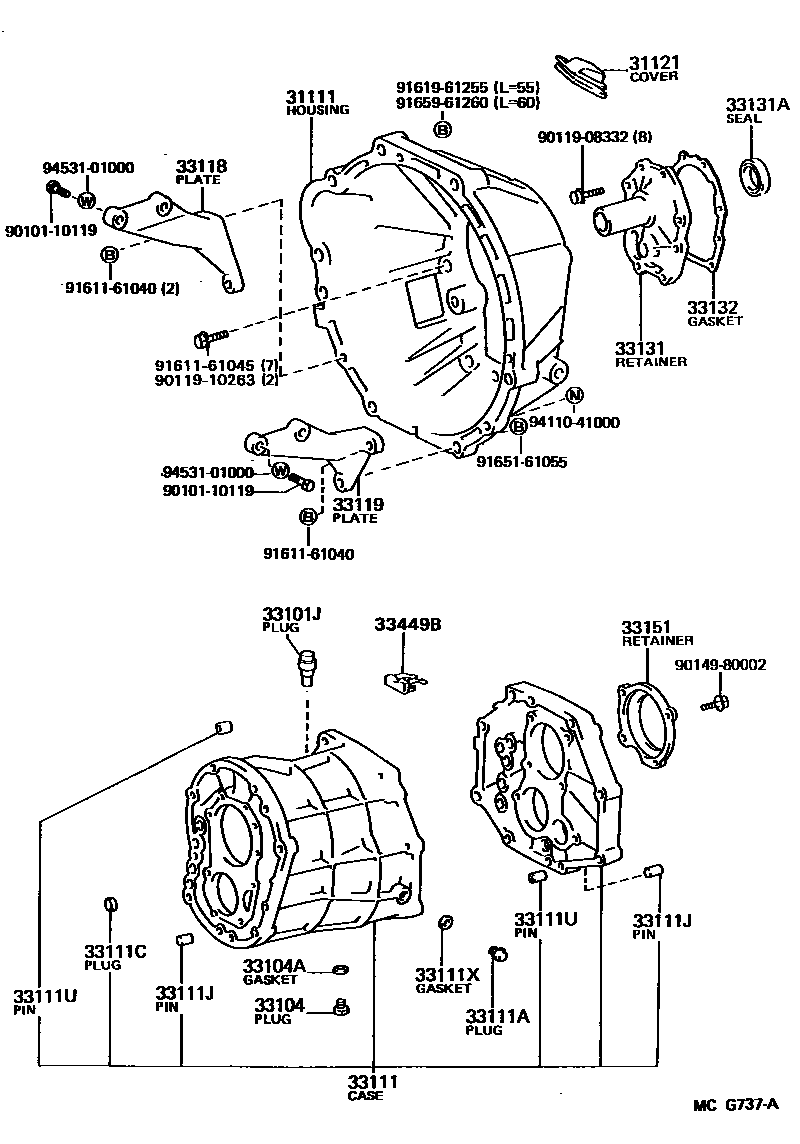

CLUTCH HOUSING & TRANSMISSION CASE (MTM)
31121COVER, CLUTCH HOUSING, NO.1
sub31121-35020
33101JPLUG, BREATHER
33104PLUG SUB-ASSY, DRAIN(MTM)
33104AGASKET, DRAIN PLUG(MTM)
33111CASE, MANUAL TRANSMISSION
33111APLUG, MANUAL TRANSMISSION CASE
33111CPLUG(FOR TRANSMISSION CASE)
OD=14
33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
L=16,OD=12
33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)
L=11,OD=11
L=14,OD=15
33111XGASKET, TRANSMISSION CASE PLUG
33118PLATE, STIFFENER, RH(MTM)
33119PLATE, STIFFENER, LH(MTM)
33131RETAINER, BEARING, FRONT(MTM)
33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)
sub90311-30014
33132GASKET, FRONT BEARING RETAINER(MTM)
33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)
33449BMAGNET, TRANSMISSION
9010110119
main90101-10119
9011908332
main90119-08332
9011910263
main90119-10263
9014980002
main90149-80002
9161161040
main91611-61040
9161161045
main91611-61045
9161961255
main91619-61255
9165161055
main91651-61055
9165961260
main91659-61260
9411041000
main94110-41000
9453101000
main94531-01000
29 parts on this diagram · 1 diagram in section
