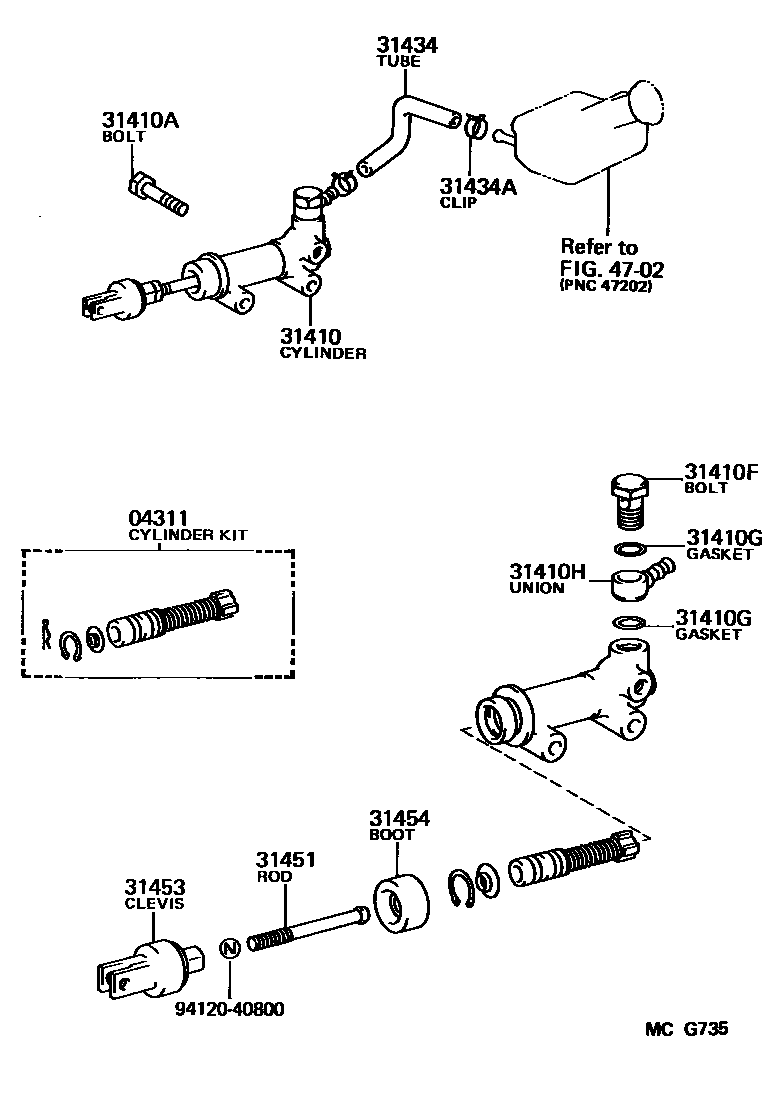

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-28010iYR2#,3#..5F198808-199001

sub04311-60080

31410CYLINDER ASSY, CLUTCH MASTER

main31420-28072iYR2#,3#..5F198808-199001

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main91611-60865iYR2#,3#..5F198808-199001

31410FBOLT, UNION(FOR CLUTCH MASTER CYLINDER)

main90401-16002iYR2#,3#..5F198808-199001

31410GGASKET(FOR CLUTCH MASTER CYLINDER UNION)

main90430-16242iYR2#,3#..5F198808-199001

31410HUNION(FOR CLUTCH MASTER CYLINDER)

main90405-10003iYR2#,3#..5F198808-199001

31434TUBE, CLUTCH RESERVOIR

main31434-28030iYR2#,3#..5F198808-199001

31434ACLIP(FOR CLUTCH RESERVOIR TUBE)

main96132-30800iYR2#,3#..5F198808-199001

sub96132-51300

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-22070iYR2#,3#..5F198808-199001

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iYR2#,3#..5F198808-198809

sub31404-28012

main31404-28012iYR2#,3#..5F198809-199001

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iYR2#,3#..5F198808-199001

4702

9412040800

main94120-40800

13 parts on this diagram · 1 diagram in section
