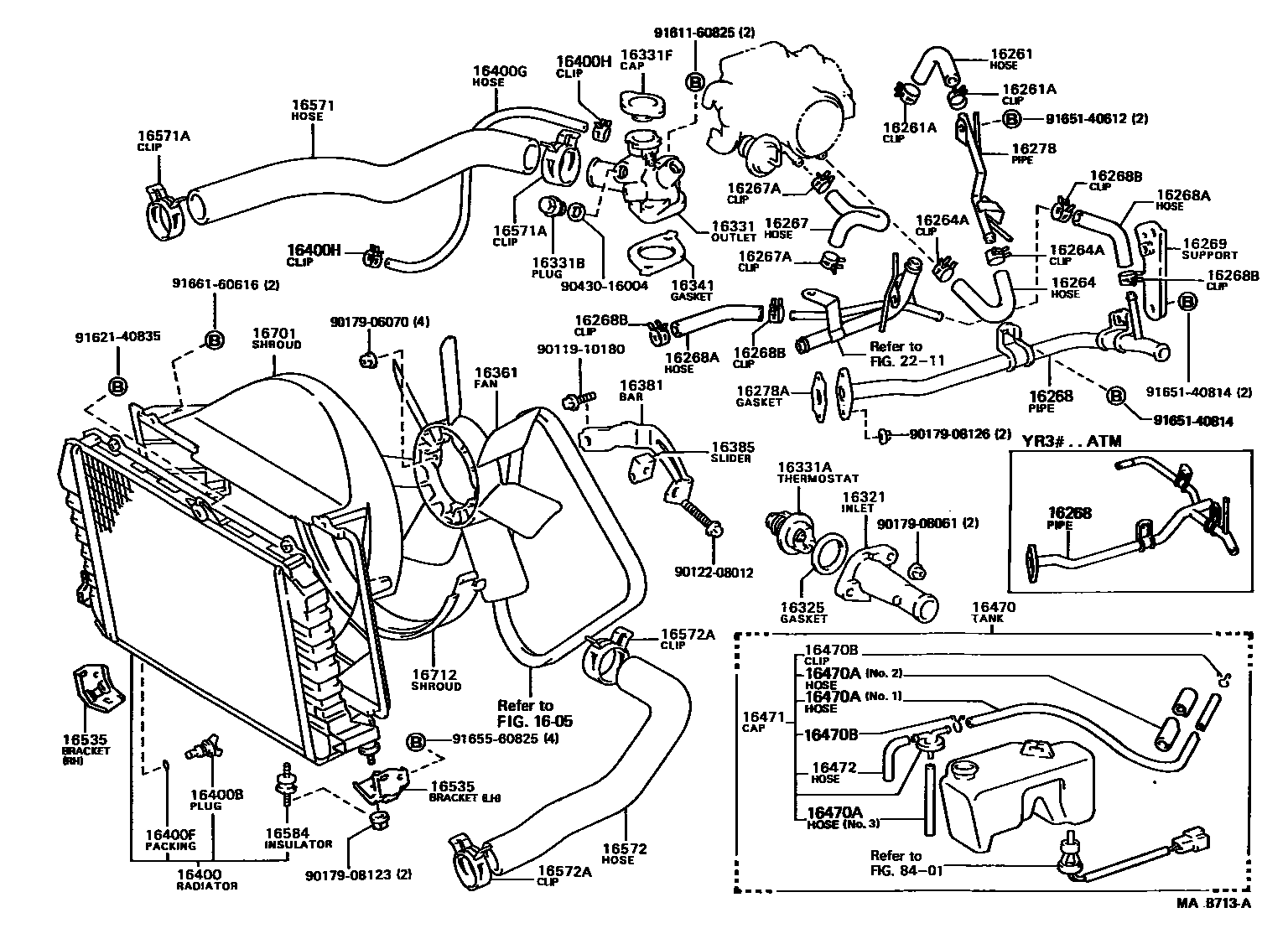

RADIATOR & WATER OUTLET
1605
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
sub96135-51300
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
sub96135-51300
16267HOSE, WATER BY-PASS, NO.3
16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
sub96135-51300
16268PIPE, WATER BY-PASS, NO.1
16268AHOSE(FOR WATER BY-PASS PIPE)
16268BCLAMP OR CLIP, HOSE(FOR WATER BY-PASS PIPE)
sub96135-51300
16269SUPPORT, WATER BY-PASS PIPE
sub16269-73020
16278PIPE, WATER BY-PASS, NO.2
16278AGASKET, WATER BY-PASS
16321INLET, WATER
16325GASKET, WATER INLET HOUSING, NO.1
sub16325-63011
16331OUTLET, WATER
16331ATHERMOSTAT
16331BPLUG(FOR WATER OUTLET)
16331FCAP SUB-ASSY(FOR WATER OUTLET)
TOYO
DENSO
16361FAN
16381BAR, FAN BELT ADJUSTING
16385SLIDER, FAN BELT ADJUSTING
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16400GHOSE(FOR RADIATOR BREATHER)
L=500
16400HCLAMP OR CLIP(FOR RADIATOR BREATHER HOSE)
sub96135-51300
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
NO.1
L=400,NO.2
L=600(*H,L=105),NO.3
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16535SUPPORT, RADIATOR, LOWER
RH
LH
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
sub90467-37003
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
sub90467-37003
16584INSULATOR, RADIATOR MOUNTING
16701SHROUD SUB-ASSY, FAN
16712SHROUD, FAN, NO.2
2211
8401
9011910180
main90119-10180
9012208012
main90122-08012
9017906070
main90179-06070
9017908061
main90179-08061
9017908123
main90179-08123
9017908126
main90179-08126
9043016004
main90430-16004
9161160825
main91611-60825
9162140835
main91621-40835
9165140612
main91651-40612
9165140814
main91651-40814
9165560825
main91655-60825
9166160616
main91661-60616
56 parts on this diagram · 1 diagram in section
