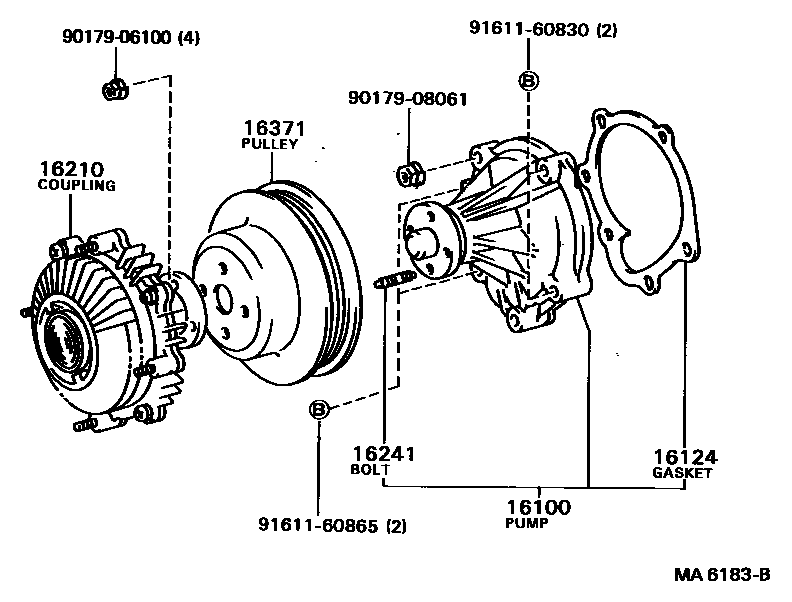

WATER PUMP

16100PUMP ASSY, ENGINE WATER

main16100-79036i4YEC..YR2#,3#198808-199001

sub16100-79037

16124GASKET, WATER PUMP COVER

main16124-71010i4YEC..YR2#,3#198808

sub16124-71011

16210COUPLING ASSY, FLUID

main16210-73010i4YEC..YR2#;4YEC..YR3#..5F198808-199001

main16210-73020i4YEC..YR3#..4FC198808-199001

sub16210-73041

16241BOLT, STUD(FOR WATER PUMP COUPLING)

main16193-71010i4YEC..YR2#,3#198808-199001

16371PULLEY, FAN

main16371-73011i4YEC..YR2#,3#198808-199001

9017906100

main90179-06100

9017908061

main90179-08061

9161160830

main91611-60830

9161160865

main91611-60865

9 parts on this diagram · 1 diagram in section
