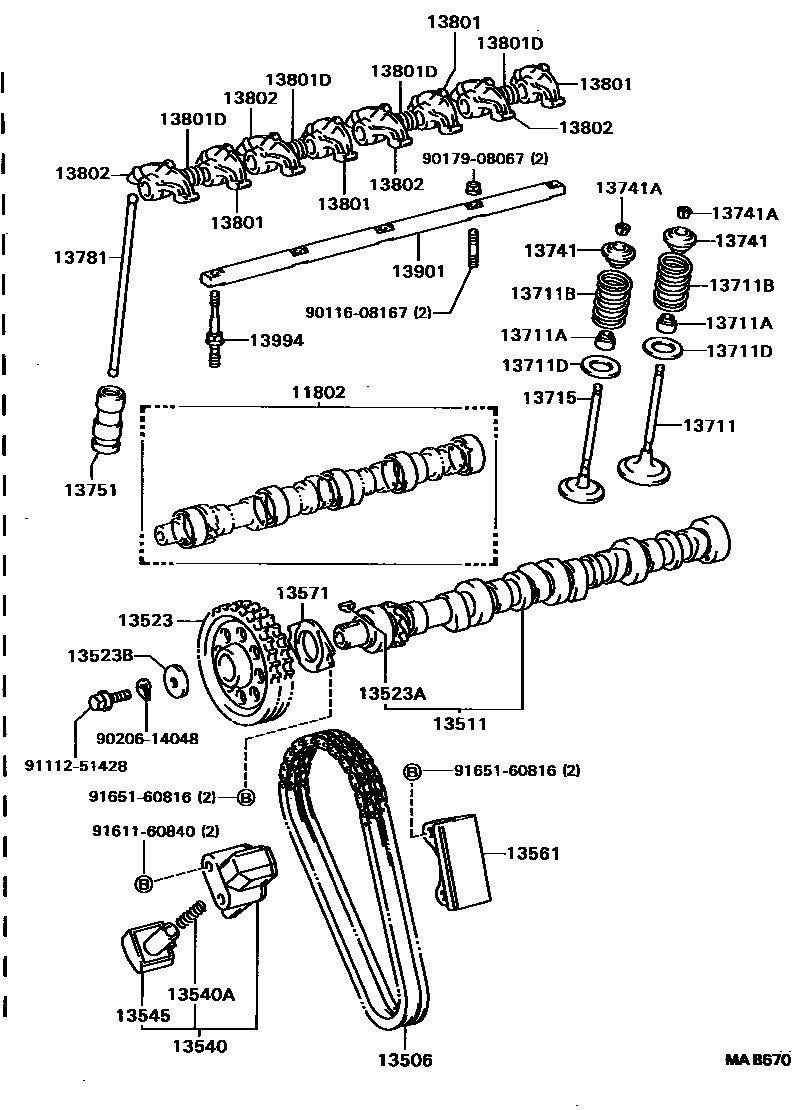

CAMSHAFT & VALVE

11802BEARING SET, CAMSHAFT

main11802-71010i4YEC..YR2#,3#198808-199001

STD

sub11802-73010

13506CHAIN SUB-ASSY

main13506-25010i4YEC..YR2#,3#198808-199001

sub13506-73010

13511CAMSHAFT

main13511-73902i4YEC..YR2#,3#198808-199001

13523GEAR OR SPROCKET, CAMSHAFT TIMING

main13522-33010i4YEC..YR2#,3#198808-199001

13523AKEY, WOODRUFF(FOR TIMING GEAR)

main90280-05010i4YEC..YR2#,3#198808-199001

13523BWASHER, PLATE(FOR TIMING GEAR)

main90201-14293i4YEC..YR2#,3#198808-199001

13540TENSIONER ASSY, CHAIN, NO.1

main13540-25010i4YEC..YR2#,3#198808-199001

13540ASPRING, COMPRESSION(FOR CHAIN TENSIONER)

main90501-10595i4YEC..YR2#,3#198808-199001

13545PLUNGER, CHAIN TENSIONER

main13545-25010i4YEC..YR2#,3#198808-199001

13561DAMPER, CHAIN VIBRATION, NO.1

main13561-25010i4YEC..YR2#,3#198808-199001

13571PLATE, CAMSHAFT THRUST

main13571-71010i4YEC..YR2#,3#198808-199001

13711VALVE, INTAKE

main13711-71010i4YEC..YR2#,3#198808-199001

13711ASEAL OR RING, O(FOR VALVE STEM OIL)

main90913-02073i4YEC..YR2#,3#198808-198905

sub90913-02080

main90913-02080i4YEC..YR2#,3#198905-199001

sub90913-02098

13711BSPRING, COMPRESSION(FOR INNER)

main90501-47005i4YEC..YR2#,3#198808-199001

sub90501-46001

13711DWASHER, PLATE(FOR VALVE SPRING SEAT)

main90201-21002i4YEC..YR2#,3#198808-199001

13715VALVE, EXHAUST

main13715-71010i4YEC..YR2#,3#198808-199001

13741RETAINER, VALVE SPRING

main13741-63010i4YEC..YR2#,3#198808-199001

13741ALOCK, VALVE SPRING RETAINER

main90913-03014i4YEC..YR2#,3#198808-199001

13751LIFTER, VALVE

main13750-71010i4YEC..YR2#,3#198808-199001

sub13750-71020

13781ROD, VALVE PUSH

main13781-73010i4YEC..YR2#,3#198808-199001

13801ARM SUB-ASSY, VALVE ROCKER, NO.1

main13811-71010i4YEC..YR2#,3#198808-199001

13801DSPRING, COMPRESSION(FOR ROCKER ARM)

main90501-16068i4YEC..YR2#,3#198808-199001

13802ARM SUB-ASSY, VALVE ROCKER, NO.2

main13812-71010i4YEC..YR2#,3#198808-199001

13901SHAFT SUB-ASSY, VALVE ROCKER, NO.1

main13901-71010i4YEC..YR2#,3#198808-199001

13994BOLT, ROCKER SHAFT STUD

main13994-71010i4YEC..YR2#,3#198808-199001

9011608167

main90116-08167

9017908067

main90179-08067

9020614048

main90206-14048

9111251428

main91112-51428

9161160840

main91611-60840

9165160816

main91651-60816

31 parts on this diagram · 1 diagram in section
