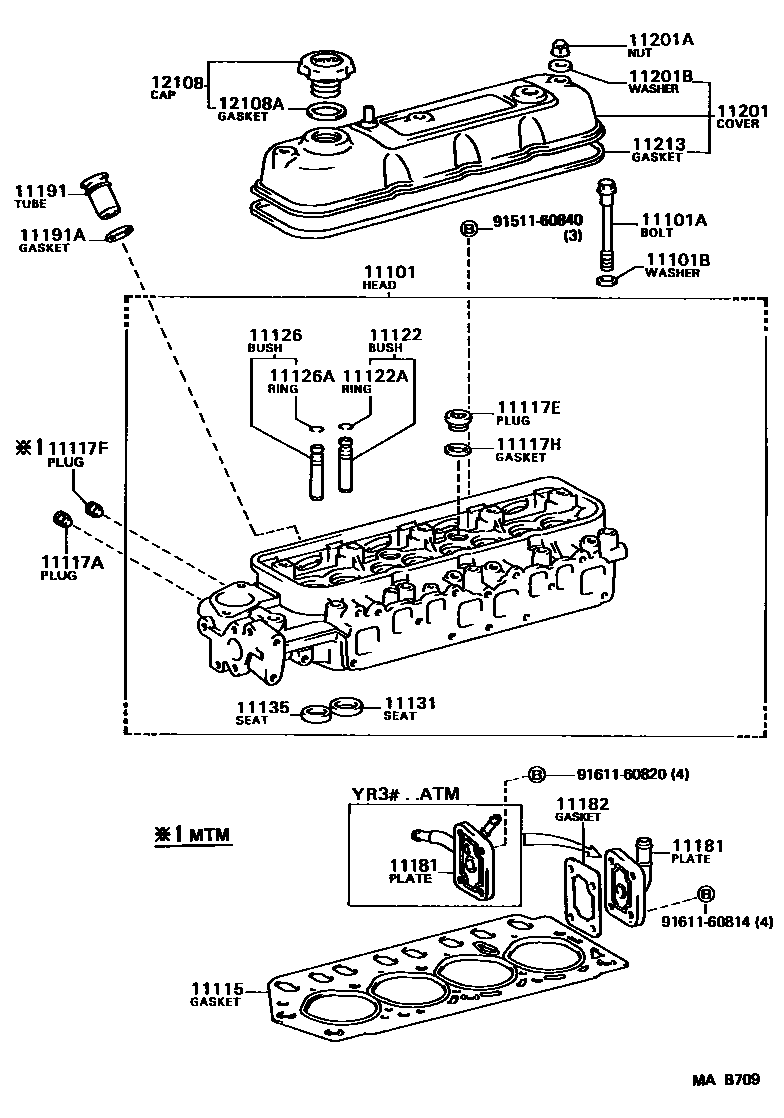

CYLINDER HEAD

11101HEAD SUB-ASSY, CYLINDER

main11101-73020i4YEC..YR2#,3#198808-199001

11101ABOLT(FOR CYLINDER HEAD SET)

main90105-12056i4YEC..YR2#,3#198808-199001

11101BWASHER, PLATE(FOR CYLINDER HEAD SET)

main90201-13021i4YEC..YR2#,3#198808-199001

11115GASKET, CYLINDER HEAD

main11115-73010i4YEC..YR2#,3#198808-199001

sub11115-73030

11117APLUG, W/HEAD TAPER SCREW, NO.1

main90344-53011i4YEC..YR2#,3#198808-199001

11117EPLUG, W/HEAD STRAIGHT SCREW, NO.1

main90341-20002i4YEC..YR2#,3#198808-199001

11117FPLUG, W/HEAD STRAIGHT SCREW, NO.2

main90340-16002i4YEC..YR2#,3#..5F198808-199001

11117HGASKET(FOR WATER HOLE)

main90430-20004i4YEC..YR2#,3#198808-199001

11122BUSH, INTAKE VALVE GUIDE

main11122-71020i4YEC..YR2#,3#198808-199001

STD

main11123-71020i4YEC..YR2#,3#198808-199001

O/S 0.05

11122ARING, SHAFT SNAP (FOR VALVE GUIDE BUSH)

main90520-12049i4YEC..YR2#,3#198808-199001

11126BUSH, EXHAUST VALVE GUIDE

main11126-71020i4YEC..YR2#,3#198808-199001

STD

main11127-71020i4YEC..YR2#,3#198808-199001

O/S 0.05

11126ARING, SHAFT SNAP(FOR VALVE GUIDE BUSH)

main90520-12049i4YEC..YR2#,3#198808-199001

11131SEAT, INTAKE VALVE

main11131-63010i4YEC..YR2#,3#198808-199001

STD

main11132-63010i4YEC..YR2#,3#198808-199001

O/S 0.03

11135SEAT, EXHAUST VALVE

main11135-71010i4YEC..YR2#,3#198808-199001

STD

main11136-71010i4YEC..YR2#,3#198808-199001

O/S 0.03

11181PLATE, CYLINDER HEAD, REAR

main11181-73010i4YEC..YR2#;4YEC..YR3#..5F198808-199001

main11181-73050i4YEC..YR3#..4FC198808-199001

11182GASKET, CYLINDER HEAD REAR PLATE

main11182-71010i4YEC..YR2#,3#198808-198912

sub11182-71011

main11182-71011i4YEC..YR2#,3#198912-199001

11191TUBE, SPARK PLUG

main11191-22010i4YEC..YR2#,3#198808-199001

11191AGASKET(FOR SPARK PLUG TUBE)

main90430-31141i4YEC..YR2#,3#198808-199001

sub90430-31003

11201COVER SUB-ASSY, CYLINDER HEAD

main11201-79035i4YEC..YR2#,3#198808-199001

sub11201-71011

sub11213-71020

sub90210-09001

11201ANUT, CAP(FOR CYLINDER HEAD COVER)

main90176-08007i4YEC..YR2#,3#198808-199001

11201BWASHER, SEAL(FOR CYLINDER HEAD COVER)

main90210-09001i4YEC..YR2#,3#198808-199001

sub90210-09019

11213GASKET, CYLINDER HEAD COVER

main11213-71020i4YEC..YR2#,3#198808-199001

12108CAP SUB-ASSY, OIL FILLER

main12180-61010i4YEC..YR2#,3#198808-199001

sub12180-70020

12108AGASKET(FOR OIL FILLER CAP)

main12195-71020i4YEC..YR2#,3#198808-199001

9151160840

main91511-60840

9161160814

main91611-60814

9161160820

main91611-60820

27 parts on this diagram · 1 diagram in section
