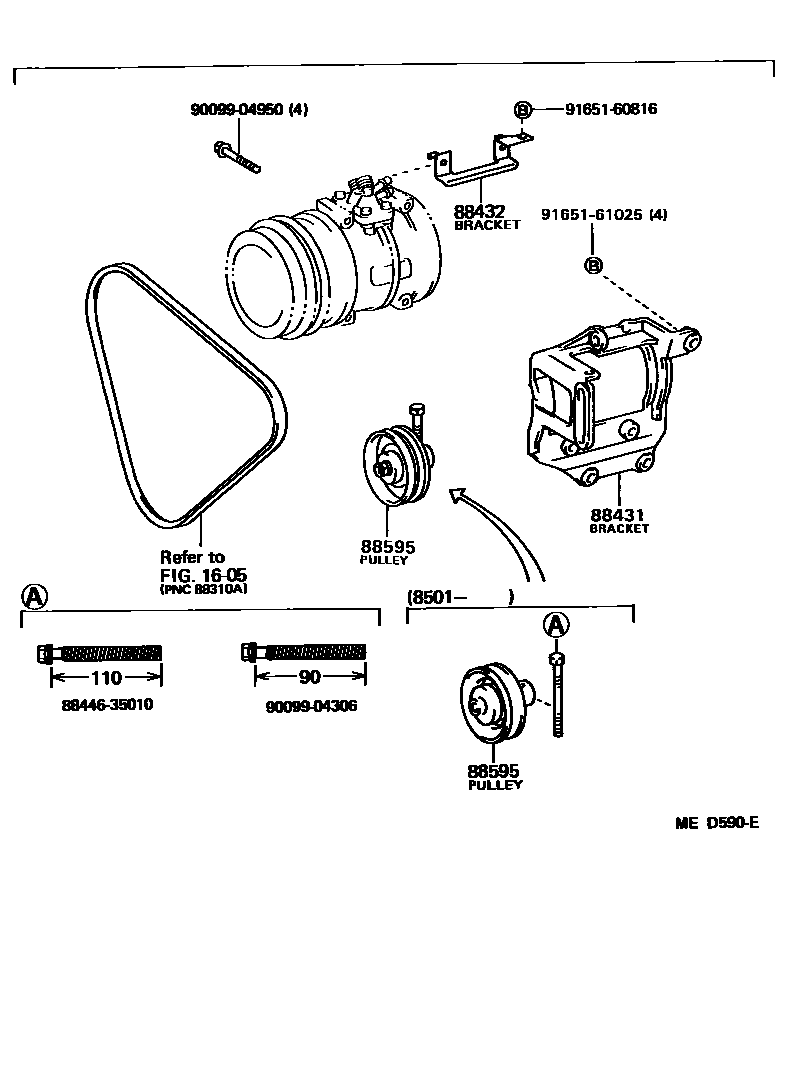

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main88431-28050iYR21;YR27..USA198308-198508

sub88431-22200

main88431-28070iYR2#,3#198508-198808

88432BRACKET, COMPRESSOR MOUNTING, NO.2

main88434-28010iYR21..5F198408-198508

88595PULLEY, COOLER COMPRESSOR IDLE

main88440-28050iYR21;YR27..USA198308-198501

main88440-35020iYR27..CND198501-198808

8844635010BOLT, IDLE PULLEY

main88446-35010

9009904306

main90099-04306

9009904950

main90099-04950

9165160816

main91651-60816

9165161025

main91651-61025

9 parts on this diagram · 3 diagrams in section
