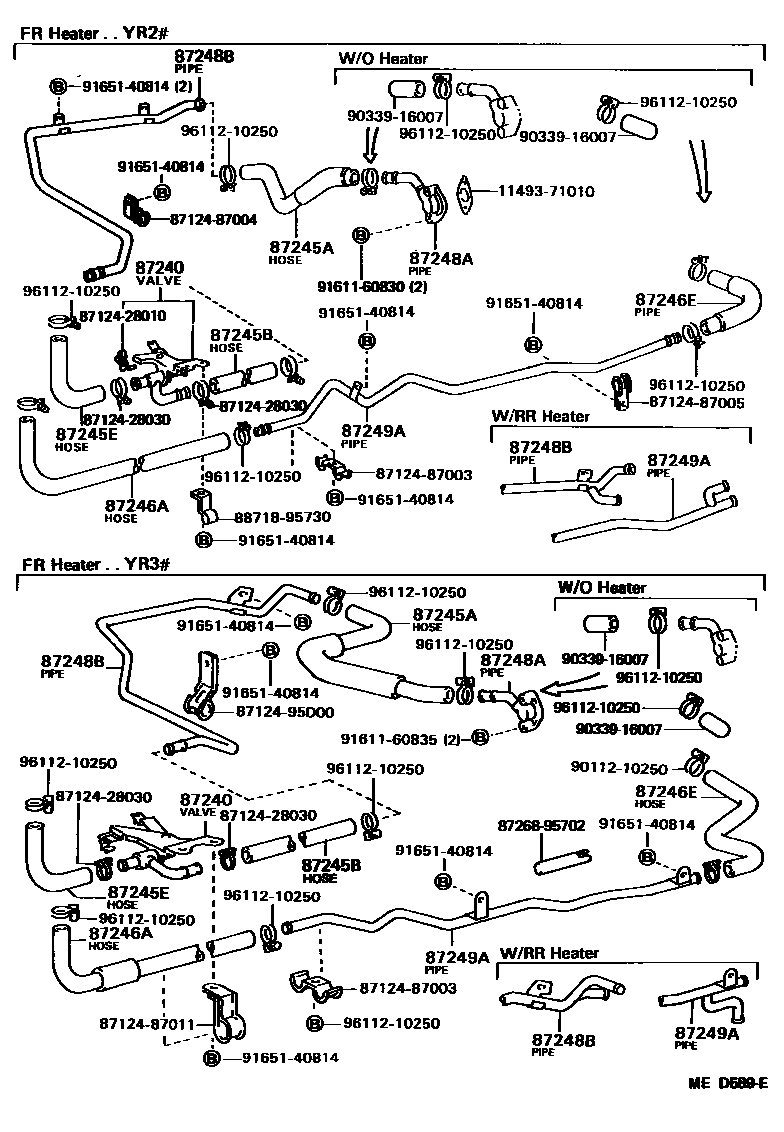

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

87240VALVE ASSY, HEATER WATER

main87240-28011iYR2#198308-198508

main87240-28020iYR2#,3#198508-198708

main87240-28030iYR2#,3#198708-198808

87245AHOSE, HEATER WATER, INLET A

main87245-87014iYR2#198308-198808

main87245-95D09iYR3#198608-198808

87245BHOSE, HEATER WATER, INLET B

main87245-28021iYR2#,3#198508-198708

main87245-28050iYR2#,3#198708-198808

main99556-30500iYR2#198308-198508

*H,L=400

87245EHOSE, HEATER WATER, INLET E

main87245-28010iYR2#198308-198508

sub87245-2B020

main87245-28030iYR2#,3#198508-198708

main99556-30500iYR2#,3#198708-198808

*H,L=390

87246AHOSE, HEATER WATER, OUTLET A

main99556-30980iYR2#198308-198808

*H,L=820

sub99556-31000

main99556-30980iYR2#198508-198808

*H,L=840

sub99556-31000

87246EHOSE, HEATER WATER, OUTLET E

main87245-87016iYR2#198308-198808

main87245-95D08iYR3#198608-198808

87248APIPE, HEATER WATER INLET, A

main87208-28010iYR2#,3#198308-198808

87248BPIPE, HEATER WATER INLET, B

main87208-28070iYR2#198308-198410

W/RR HEATER

main87208-28071iYR2#198410-198708

W/RR HEATER

sub87208-28140

main87208-28080iYR21..USA198308-198410

main87208-28081iYR21,22..USA198410-198708

sub87208-28160

main87208-28140iYR2#198708-198808

W/RR HEATER

main87208-28160iYR22..USA198708-198808

main87208-95D08iYR31..USA198608-198708

sub87208-95D18

main87208-95D09iYR3#198608-198708

W/RR HEATER

sub87208-95D20

main87208-95D18iYR32198708-198808

main87208-95D20iYR3#198708-198808

W/RR HEATER

87249APIPE, HEATER WATER OUTLET, A

main87208-28050iYR2#198308-198708

W/RR HEATER

sub87208-28150

main87208-28060iYR21,22..USA198308-198708

sub87208-28170

main87208-28150iYR2#198708-198808

W/RR HEATER

main87208-28170iYR29198708-198808

main87208-95D12iYR32198608-198708

sub87208-95D19

main87208-95D13iYR3#198608-198708

W/RR HEATER

sub87208-95D21

main87208-95D19iYR32198708-198808

sub87208-95D25

main87208-95D21iYR3#198708-198808

W/RR HEATER

sub87208-95D26

1149371010GASKET, WATER SEAL PLATE

main11493-71010

8712428010CLAMP, HEATER

main87124-28010

8712428030CLAMP, HEATER

main87124-28030

8712487003CLAMP, HEATER

main87124-87003

8712487004CLAMP, HEATER

main87124-87004

8712487005CLAMP, HEATER

main87124-87005

8712487011CLAMP, HEATER

main87124-87011

8712495D00CLAMP, HEATER

main87124-95D00

8726895702COCK, WATER HOSE DRAIN(FOR REAR HEATER)

main87268-95702

8871895730PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-95730

9011210250

main90112-10250

9033916007

main90339-16007

9161160830

main91611-60830

9161160835

main91611-60835

9165140814

main91651-40814

9611210250

main96112-10250

25 parts on this diagram · 2 diagrams in section
