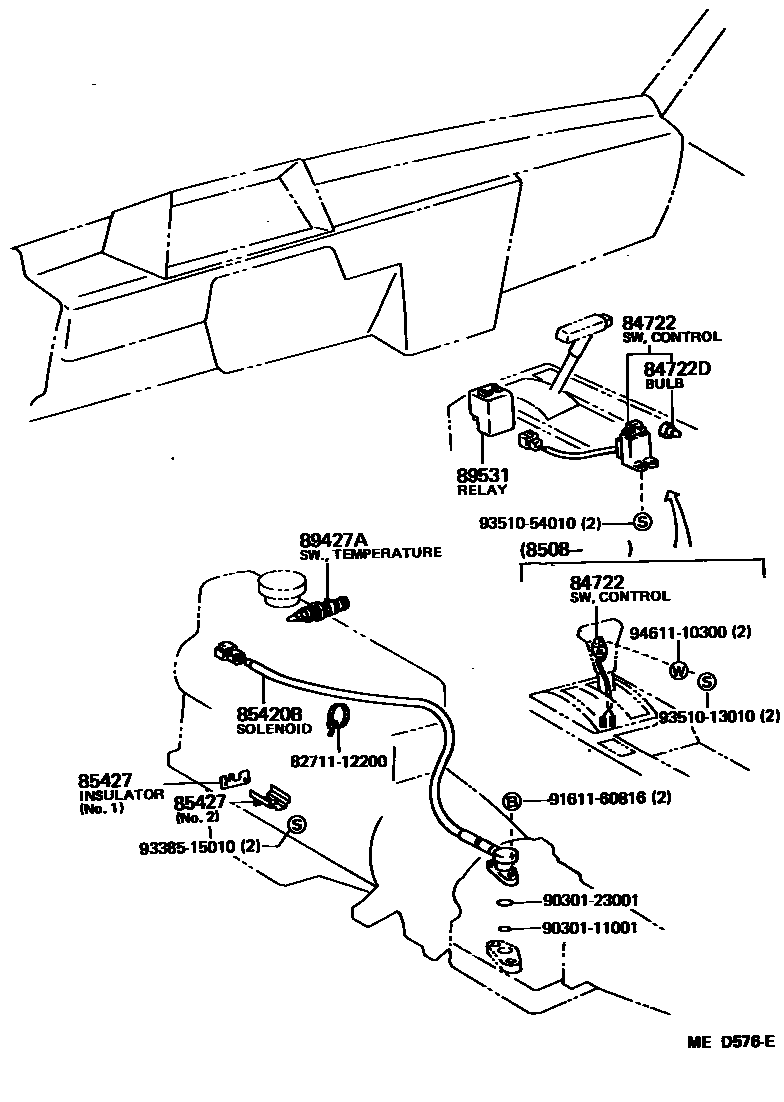

OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

84722SWITCH, TRANSMISSION CONTROL

main84722-20040-05iYR29..4FC..USA198508-198808

BROWN,BEIGE,TRIM4#

sub84722-20040

main84722-20040-05iYR29..4FC..USA198508-198808

SHIFT KNOB=URETHANE,BROWN,BEIGE,TRIM4#

sub84722-20040

main84722-20040-14iYR22,31..4FC198508-198808

SHIFT KNOB=URETHANE,BLUE,BLUE,TRIM1#,4#

sub84722-20040

main84722-20040-14iYR22,31..4FC198508-198808

BLUE,BLUE,TRIM1#,8#

sub84722-20040

main84722-28010iYR2#..4FC198308-198401

main84722-28020iYR2#..4FC198401-198508

main84722-32010iYR29..4FC..CND198508-198808

84722DBULB, TRANSMISSION CONTROL SWITCH

main90981-11024iYR2#..4FC198308-198508

12V 1.4W

85420BSOLENOID ASSY, TRANSMISSION

main85420-28020iYR2#,3#..4FC198308-198808

85427INSULATOR, OVERDRIVE SOLENOID

main85427-28020iYR2#..4FC198508-198808

NO.1

main85427-28030iYR2#..4FC198508-198808

NO.2

89427ASWITCH, TEMPERATURE

main89428-20050iYR2#,3#..4FC198308-198808

89531RELAY, TRANSMISSION CONTROL

main89531-28010iYR2#..4FC198308-198808

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200

9030111001

main90301-11001

9030123001

main90301-23001

9161160816

main91611-60816

9338515010

main93385-15010

9351013010

main93510-13010

9351054010

main93510-54010

9461110300

main94611-10300

14 parts on this diagram · 1 diagram in section
