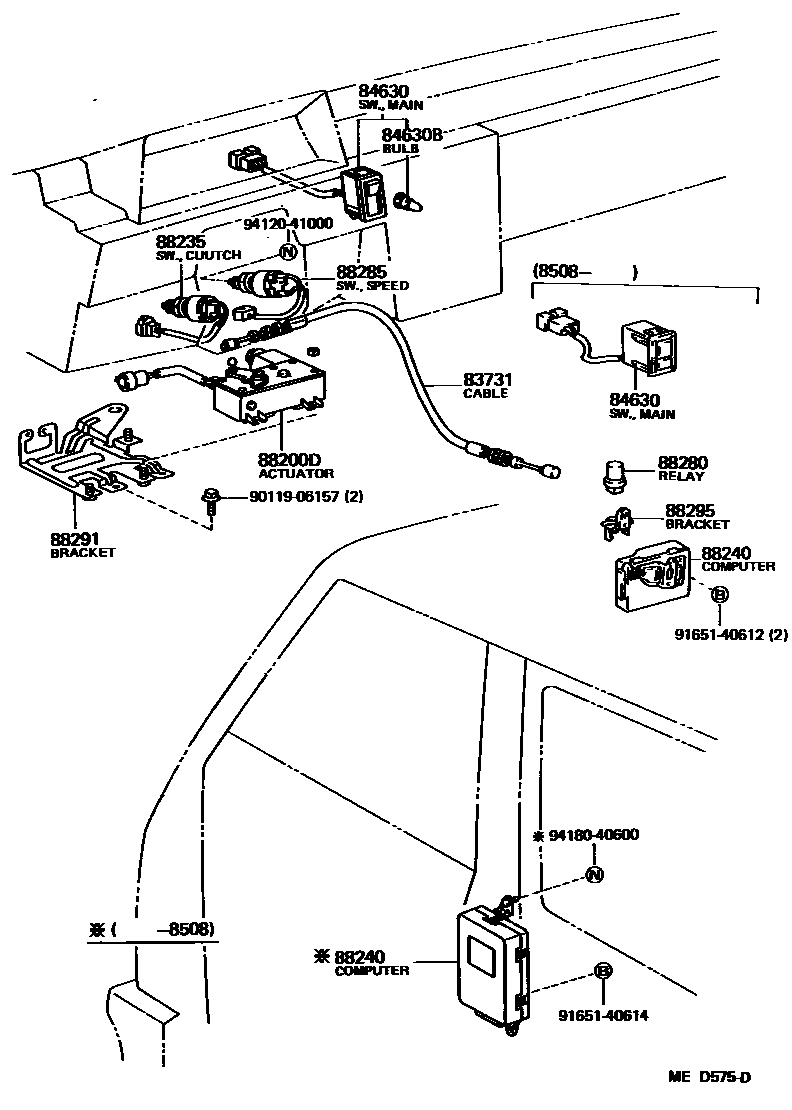

CRUISE CONTROL (AUTO DRIVE)

83731CABLE, CRUISE CONTROL

main83731-28010iYR2#,3#198508-198808

main83731-28020iYR2#198308-198508

84630SWITCH ASSY, CRUISE CONTROL MAIN

main84630-28010iYR2#,3#198508-198808

main84630-32020iYR21;YR27..USA198308-198508

84630BBULB(FOR CRUISE CONTROL SWITCH)

main84999-10110iYR2#198408-198508

12V 1.12W

88200DACTUATOR ASSY, CRUISE CONTROL

main88200-28010iYR2#,3#198508-198702

main88200-28011iYR2#,3#..4FC198702-198808

sub88200-28010

main88200-28030iYR2#,3#..5F198702-198808

sub88200-28010

main88200-28040iYR21;YR27..USA198308-198508

88235SWITCH ASSY, CRUISE CONTROL(AUTO DRIVE) RELEASE

main88280-14020iYR2#,3#..5F198308-198808

88240COMPUTER ASSY, CRUISE CONTROL

main88240-28030iYR21;YR27..USA198308-198508

main88240-28040iYR2#,3#198508-198702

sub88240-28041

main88240-28041iYR2#,3#..4FC198702-198708

sub88240-28070

main88240-28060iYR2#,3#..5F198702-198708

sub88240-28090

main88240-28070iYR2#,3#..4FC198708-198808

main88240-28090iYR2#,3#..5F198708-198808

sub88240-28070

88280RELAY ASSY, CRUISE CONTROL(AUTO DRIVE), B

main90987-02004iYR2#,3#198508-198808

88285SWITCH, CRUISE CONTROL

main88282-28010iYR21;YR27..USA198308-198808

sub84340-24010

88291BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1

main88291-28010iYR21;YR27..USA198308-198808

88295BRACKET, CRUISE CONTROL(AUTO DRIVE) RELAY

main85999-12050iYR2#,3#198508-198808

9011906157

main90119-06157

9165140612

main91651-40612

9165140614

main91651-40614

9412041000

main94120-41000

9418040600

main94180-40600

15 parts on this diagram · 1 diagram in section
