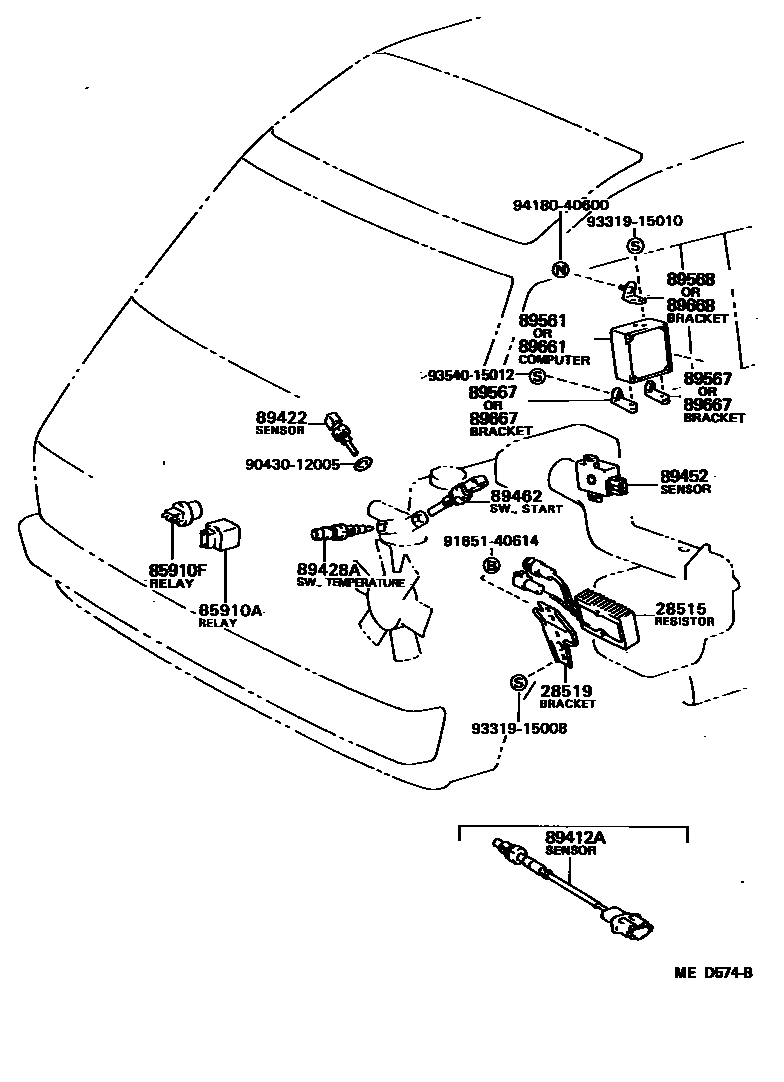

ELECTRONIC FUEL INJECTION SYSTEM

28515RESISTOR, SOLENOID

main28515-26020i3YEC,4YEC..YR2#,3#198308-198808

sub28515-35010

28519BRACKET, SOLENOID RESISTOR

main28519-28010i3YEC,4YEC..YR2#,3#198308-198808

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main85910-30050iYR2#,3#198308-198808

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iYR2#,3#198308-198808

89412ASENSOR, E.G.R GAS TEMPERATURE

main89412-12010iYR2#,3#..USA198708-198808

CALIFORNIA SPEC

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-30020iYR2#,3#198308-198808

sub89422-12010

89428ASWITCH, WATER TEMPERATURE (FOR E.F.I)

main89428-28030iYR21;YR27..USA198308-198808

W/COOLER

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-14020iYR2#,3#198308-198808

89462SWITCH, START INJECTOR TIME

main89462-30011iYR2#,3#198308-198808

89561COMPUTER, FUEL INJECTION

main89561-28010iYR2#198308-198508

89567BRACKET, FUEL INJECTION COMPUTER

main89567-28010iYR2#198308-198508

89568BRACKET, FUEL INJECTION COMPUTER

main89568-28010iYR2#198308-198508

89661COMPUTER, ENGINE CONTROL

main89661-28040iYR2#198508-198708

main89661-28060iYR3#198608-198708

main89661-28080iYR2#,3#198708-198804

sub89661-28081

main89661-28081iYR2#,3#198804-198808

main89661-28090iYR2#,3#..USA198708-198804

CALIFORNIA SPEC

sub89661-28091

main89661-28091iYR2#,3#..USA198804-198808

CALIFORNIA SPEC

89667BRACKET, ENGINE CONTROL COMPUTER

main89567-28010iYR2#,3#198508-198808

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89568-28010iYR2#,3#198508-198808

9043012005

main90430-12005

9165140614

main91651-40614

9331915008

main93319-15008

9331915010

main93319-15010

9354015012

main93540-15012

9418040600

main94180-40600

21 parts on this diagram · 1 diagram in section
