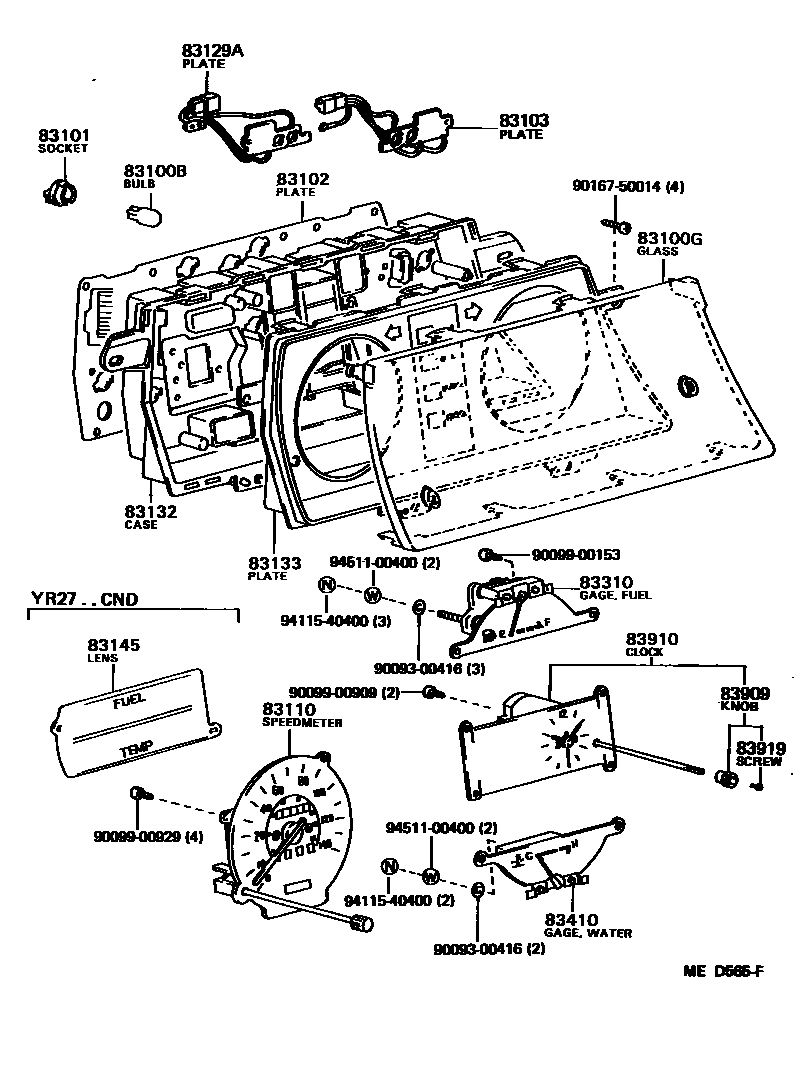

METER

0001 1 0002 1 0003 1

83100BBULB, COMBINATION METER, NO.1

main83109-10010iYR22,31..5F..LE198805-198808

12V 1.4W,ORANGE CAP,12V 1.4W,ORANGE

main83109-28010×4iYR2#,3#198308-198808

12V3.4W W(GREEN CAP),12V 3.4W,W/GREEN CAP

main90981-11018iYR21..LE..CND198408-198508

12V 1.2W W/O SOCKET,12V 1.4W

main99132-12034×11iYR2#,3#198308-198808

12V 3.4W,12V 3.4W

83100GGLASS, COMBINATION METER

main83138-87003iYR22..DLX..USA198608-198808

W/CLOCK

main83138-87005iYR27,29..CND198311-198808

main83138-87007iYR21,22,31..LE198308-198808

83101SOCKET SUB-ASSY, COMBINATION METER BULB

main83101-14030×14iYR2#,3#198308-198808

12V 3.4W

main83101-14040iYR21..LE..CND198408-198508

12V 1.4W

main83101-28010×4iYR21,27,3#198308-198808

12V 3.4W,W/GREEN CAP

83102PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1

main83247-28010iYR21..LE198308-198408

main83247-28130iYR2#..DLX,STD198308-198408

main83247-28310iYR2#..DLX,STD198408-198508

main83247-28410iYR21..LE198408-198508

main83247-28510iYR22..LE198508-198808

main83247-28610iYR29,32..CND198508-198808

main83247-28690iYR22..DLX..CND198608-198808

main83247-95D11iYR31..4FC198608-198808

main83247-95D17iYR31..4FC..DLX198708-198808

83103PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.2

main83247-28290iYR22,31..4FC;YR22,31..5F..DLX198805-198808

main83247-28790iYR22,31..5F..LE198805-198808

main83247-95D23iYR31..4FC..DLX198708-198808

83110SPEEDOMETER ASSY

main83110-28040iYR2#..(DLX,STD)..USA198308-198408

main83110-28041iYR2#,32..(DLX,STD)..USA198408-198808

main83110-28070iYR21..LE..USA198308-198408

main83110-28071iYR21,22,31..LE..USA198408-198808

main83110-28080iYR2#..(DLX,STD)..CND198308-198408

main83110-28081iYR2#,3#..(DLX,STD)..CND198408-198808

main83110-28120iYR21..LE..CND198308-198408

main83110-28121iYR21,22,31..LE..CND198408-198808

83129ABULB AND SOCKET

main83129-95D03iYR32..5F198608-198808

83132CASE, COMBINATION METER

main83132-28030iYR21..LE198308-198408

main83132-28070iYR21..DLX198308-198408

main83132-28110iYR27..CND198311-198408

main83132-28130iYR21,22,31..LE198408-198805

main83132-28190iYR27..USA198408-198508

main83132-28210iYR27..CND198408-198508

sub83132-87033

main83132-28250iYR22..DLX..CND198608-198808

main83132-28270iYR29..CND198508-198808

main83132-28370iYR22,31..5F..LE198805-198808

main83132-95D09iYR32..5F..USA198608-198808

main83132-95D11iYR32..4FC198608-198808

main83132-95D13iYR32..CND198608-198808

83133PLATE, COMBINATION METER, NO.1

main83133-28030iYR2#..(DLX,STD)..USA198308-198808

main83133-28070iYR2#..(DLX,STD)..CND198308-198508

main83133-28110iYR29..CND198508-198808

main83133-87019iYR21,22,31..LE198308-198808

main83133-95D03iYR32..5F..USA198608-198808

main83133-95D05iYR32..4FC198608-198808

main83133-95D07iYR32..CND198608-198808

main83133-95D09iYR31..4FC..DLX198708-198808

83145LENS, METER, NO.1

main83145-28010iYR27..CND198311-198408

main83145-28050iYR27..CND198408-198508

main83145-28070iYR29..CND198508-198808

main83145-28090iYR29..USA198508-198808

83310GAGE ASSY, FUEL RECEIVER

main83243-28010iYR21,22..LE..USA198308-198808

main83243-28030iYR21..LE..CND198308-198508

main83243-87001iYR22..CND198508-198808

main83243-87003iYR27,29,32..CND198311-198808

main83243-87005iYR27,29,32..USA198401-198808

main83243-95D01iYR31..5F..CND198608-198808

main83243-95D03iYR31..4FC..CND198608-198808

main83243-95D05iYR31..5F..USA198608-198808

main83243-95D07iYR31..4FC..USA198608-198808

83410GAGE ASSY, WATER TEMPERATURE RECEIVER

main83244-28030iYR2#,3#..(DLX,STD)..CND198308-198808

main83244-28110iYR21,22,31..LE..CND198308-198808

main83244-87003iYR2#..(DLX,STD)..USA198308-198808

main83244-87006iYR21,22,31..LE..USA198308-198808

83909KNOB, CLOCK

main83909-14012iYR21..DLX198308-198808

main83909-22180iYR21..LE198308-198808

83910CLOCK ASSY

main83910-28010iYR21..LE198308-198508

main83910-28011iYR22,31..LE198508-198808

main83910-28020iYR27..USA198401-198408

main83910-28030iYR27..USA198408-198508

main83910-28040iYR22..DLX..CND198608-198808

83919SCREW, CLOCK

main83919-12230iYR21..LE198308-198808

main83919-14012iYR21..DLX198308-198808

9009300416

main90093-00416

9009900153

main90099-00153

9009900909

main90099-00909

9009900929

main90099-00929

9016750014

main90167-50014

9411540400

main94115-40400

9451100400

main94511-00400

22 parts on this diagram · 3 diagrams in section
