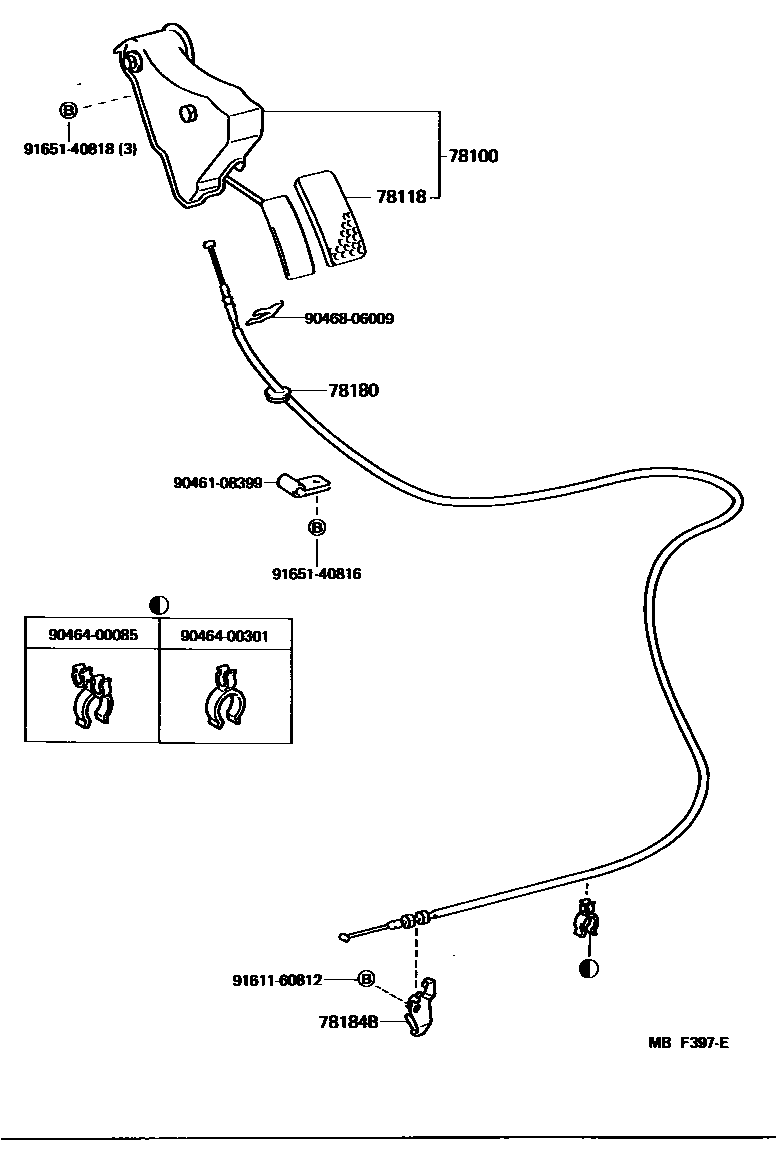

ACCELERATOR LINK

78100LINK ASSY, ACCELERATOR

main78105-28030iYR2#198308-198508

main78105-28040iYR2#,3#198508-198808

78118PAD, ACCELERATOR PEDAL

main78119-95700iYR2#,3#198308-198808

78180WIRE ASSY, ACCELERATOR

main78180-28030iYR2#,3#198308-198808

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-87005iYR2#,3#198308-198808

9046108399

main90461-08399

9046400085

main90464-00085

9046400301

main90464-00301

9046806009

main90468-06009

9161160812

main91611-60812

9165140816

main91651-40816

9165140818

main91651-40818

11 parts on this diagram · 1 diagram in section
