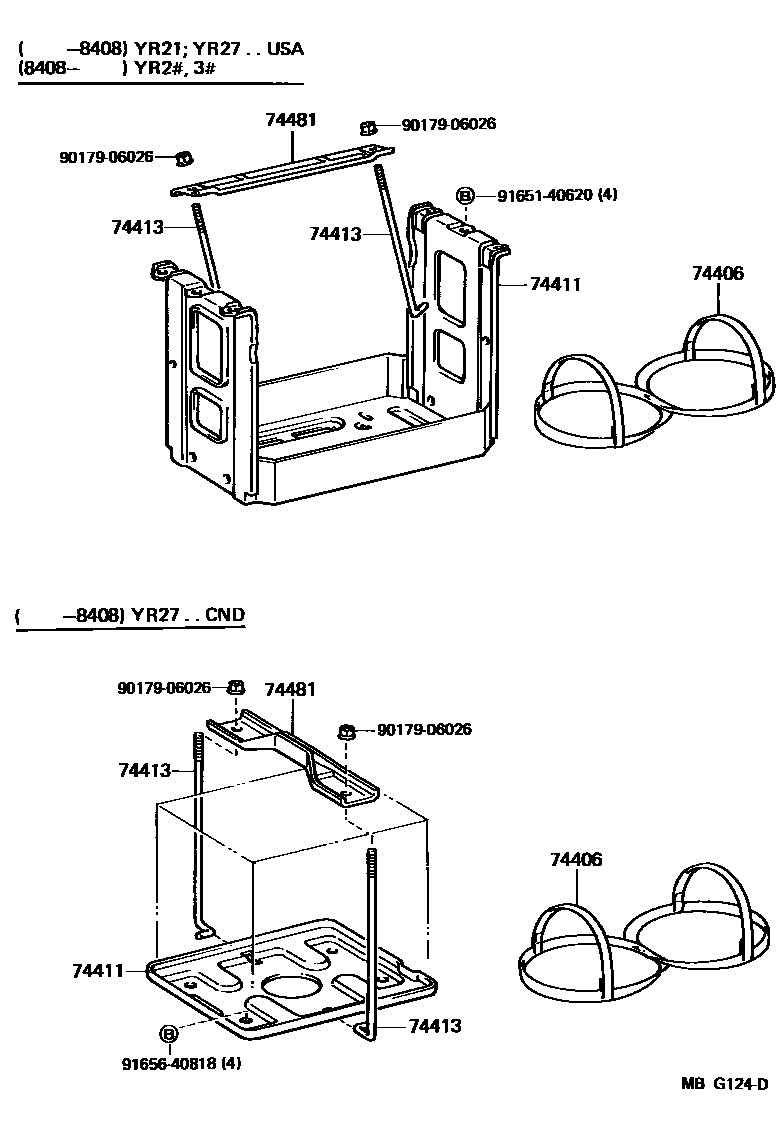

BATTERY CARRIER

74406BELT SUB-ASSY, BATTERY

main74446-95700iYR21198308-198508

main74446-95702iYR27..CND198311-198808

74411CARRIER, BATTERY

main74403-87003iYR27..USA198308-198501

sub74403-87004

main74403-87004iYR2#,3#198501-198808

sub74403-28010

main74411-87005iYR27..CND198311-198408

sub74411-28050

74413BOLT, BATTERY CLAMP

main74451-87002iYR21198308-198808

main74451-87003iYR27..CND198311-198408

74481CLAMP, BATTERY HOLD DOWN

main74481-87006iYR27..CND198311-198408

main74481-87007iYR21198308-198808

9017906026

main90179-06026

9165140620

main91651-40620

9165640818

main91656-40818

7 parts on this diagram · 1 diagram in section
