SEAT BELT

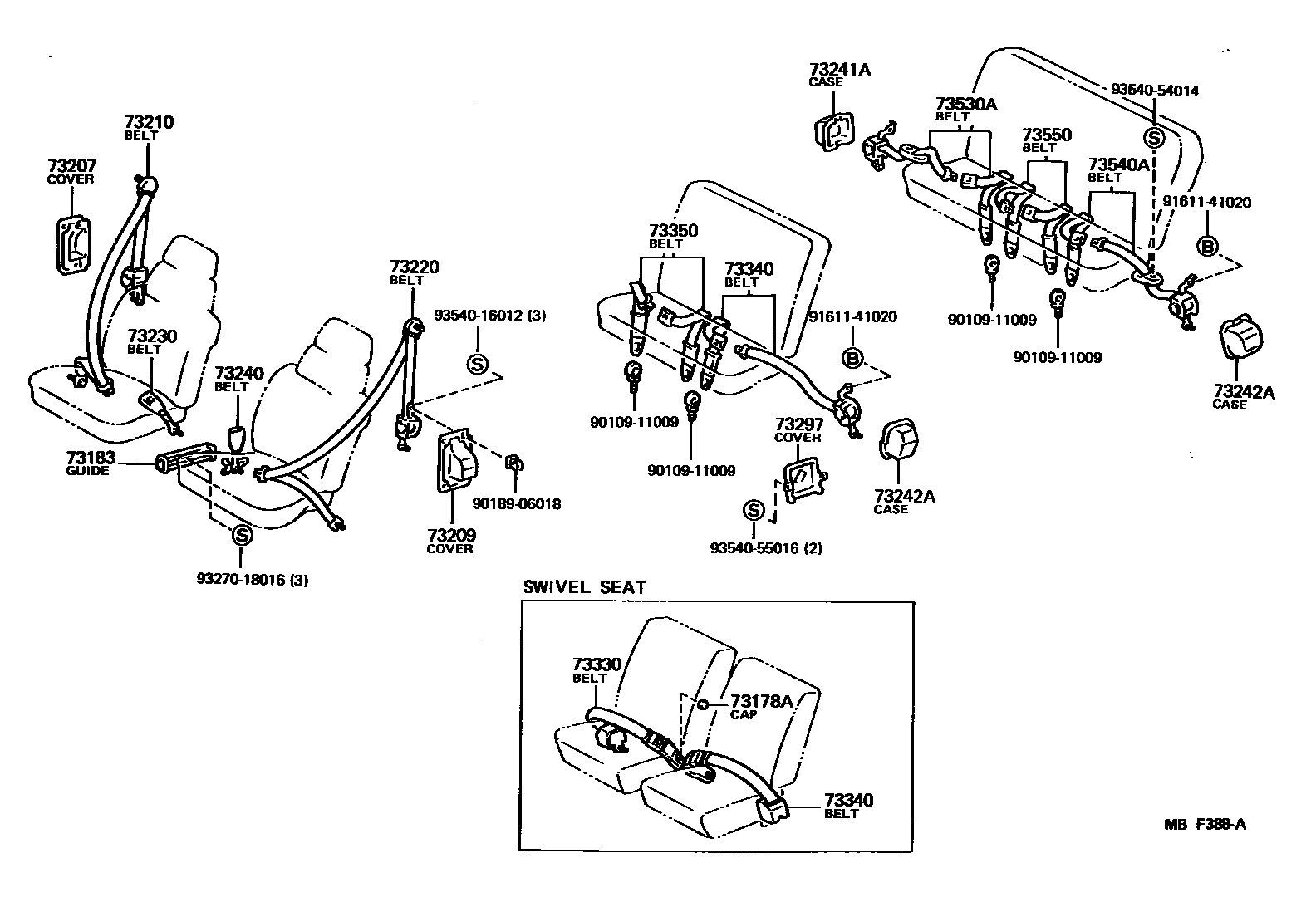

Parts diagram
73178ACAP, SEAT BELT ANCHOR COVER
main73178-16010-13i198608-198808
W/SWIVEL SEAT,GRAY,GRAY,TRIM1#
sub73178-16010
main73178-16010-36i198508-198808
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73178-16010
main73178-16010-44i198508-198608
W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73178-16010
73183GUIDE, FRONT SEAT LAP BELT, INNER
main73183-28010i198308-198808
73207COVER SUB-ASSY, SEAT BELT RETRACTOR, RH
main73207-87003i198308-198808
sub73207-87004
73209COVER SUB-ASSY, SEAT BELT RETRACTOR, LH
main73209-28010i198308-198808
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-28020-02i198311-198508
WINE,RED/MAROON,TRIM4#
sub73210-28020
main73210-28030-02i198308-198408
WINE,RED/MAROON,TRIM4#
sub73210-28031
main73210-28030-04i198308-198408
BLUE,BLUE,TRIM1#
sub73210-28031
main73210-28031-02i198408-198508
WINE,WINE,TRIM4#
sub73210-28032
main73210-28031-04i198408-198508
BLUE,BLUE,TRIM1#
sub73210-28032
main73210-28080-03i198603-198608
GRAY,SHADOW GRAY,TRIM4#,8#
sub73210-28210
main73210-28080-04i198603-198608
BLUE,BLUE,TRIM8#
sub73210-28210
main73210-28080-04i198508-198603
BLUE,BLUE,TRIM4#,8#
sub73210-28210
main73210-28080-06i198508-198608
BROWN,BROWN,TRIM4#
sub73210-28210
main73210-28081-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73210-28082
main73210-28081-06i198608-198808
BROWN,BROWN,TRIM4#
sub73210-28082
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-28020-02i198311-198508
WINE,RED/MAROON,TRIM4#
sub73220-28020
main73220-28030-02i198308-198408
WINE,RED/MAROON,TRIM4#
sub73220-28031
main73220-28030-04i198308-198408
BLUE,BLUE,TRIM1#
sub73220-28031
main73220-28031-02i198408-198508
WINE,WINE,TRIM4#
sub73220-28032
main73220-28031-04i198408-198508
BLUE,BLUE,TRIM1#
sub73220-28032
main73220-28090-03i198603-198608
GRAY,SHADOW GRAY,TRIM4#
sub73220-28230
main73220-28090-04i198508-198603
BLUE,BLUE,TRIM4#,8#
sub73220-28230
main73220-28090-04i198603-198608
BLUE,BLUE,TRIM8#
sub73220-28230
main73220-28090-06i198508-198608
BROWN,BROWN,TRIM4#
sub73220-28230
main73220-28091-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73220-28092
main73220-28091-06i198608-198808
BROWN,BROWN,TRIM4#
sub73220-28092
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-28020-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub73230-28020
main73230-28020-04i198308-198508
BLUE,BLUE,TRIM1#
sub73230-28020
main73230-28070-03i198603-198608
GRAY,SHADOW GRAY,TRIM4#
sub73230-28070
main73230-28070-04i198508-198603
BLUE,BLUE,TRIM4#,8#
sub73230-28070
main73230-28070-04i198603-198608
BLUE,BLUE,TRIM8#
sub73230-28070
main73230-28070-06i198508-198608
BROWN,BROWN,TRIM4#
sub73230-28070
main73230-28071-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73230-28071
main73230-28071-06i198608-198808
BROWN,BROWN,TRIM4#
sub73230-28071
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-28020-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub73240-28020
main73240-28020-04i198308-198508
BLUE,BLUE,TRIM1#
sub73240-28020
main73240-28021-03i198603-198608
GRAY,SHADOW GRAY,TRIM4#
sub73240-28021
main73240-28021-04i198603-198608
BLUE,BLUE,TRIM8#
sub73240-28021
main73240-28021-04i198508-198603
BLUE,BLUE,TRIM4#,8#
sub73240-28021
main73240-28021-06i198508-198608
BROWN,BROWN,TRIM4#
sub73240-28021
main73240-28022-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73240-28022
main73240-28022-06i198608-198808
BROWN,BROWN,TRIM4#
sub73240-28022
73241ACASE, SEAT BELT RETRACTOR, RH
main73241-28030i198308-198808
RR NO.2 SEAT
73242ACASE, SEAT BELT RETRACTOR, LH
main73242-28010i198308-198808
RR NO.1 SEAT
main73242-28030i198308-198808
RR NO.2 SEAT
73297COVER, QUARTER TRIM OR CENTER PILLAR BELT HOLE
main73298-28020-02i198408-198508
WINE,WINE,TRIM4#
sub73298-28020
main73298-28020-03i198308-198408
GRAY,GRAY,TRIM1#
sub73298-28020
main73298-28020-04i198408-198508
BLUE,BLUE,TRIM1#
sub73298-28020
main73298-28020-05i198308-198408
BEIGE,BEIGE,TRIM4#
sub73298-28020
main73298-28020-06i198508-198808
BROWN,BROWN,TRIM4#
sub73298-28020
main73298-28020-13i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73298-28020
main73298-28020-14i198508-198608
BLUE,BLUE,TRIM8#
sub73298-28020
73330BELT ASSY, REAR SEAT LAP TYPE, RH
main73330-28031-04i198508-198608
W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73330-28070
main73330-28031-06i198508-198608
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73330-28070
main73330-28032-03i198608-198711
W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
sub73330-28070
main73330-28032-06i198608-198711
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73330-28070
main73330-28070-03i198711-198808
W/SWIVEL SEAT,GRAY,GRAY,TRIM1#
sub73330-28070
main73330-28070-06i198711-198808
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73330-28070
73340BELT ASSY, REAR SEAT LAP TYPE, LH
main73330-28031-04i198508-198608
W/SWIVEL SEAT,BLUE,BLUE,TRIM8#
sub73330-28070
main73330-28031-06i198508-198608
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73330-28070
main73330-28032-03i198608-198711
W/SWIVEL SEAT,GRAY,SHADOW GRAY,TRIM1#
sub73330-28070
main73330-28070-03i198711-198808
W/SWIVEL SEAT,GRAY,GRAY,TRIM1#
sub73330-28070
main73330-28070-03i198711-198808
W/SWIVEL SEAT,GRAY,GRAY
sub73330-28070
main73330-28070-06i198711-198808
W/SWIVEL SEAT,BROWN,BROWN,TRIM4#
sub73330-28070
main73340-28020-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub73340-28020
main73340-28020-04i198308-198508
BLUE,BLUE,TRIM1#
sub73340-28020
main73340-28021-04i198508-198608
BLUE,BLUE,TRIM1#
sub73340-28021
main73340-28021-06i198508-198608
BROWN,BROWN,TRIM4#
sub73340-28021
main73340-28022-03i198708-198711
GRAY,SHADOW GRAY
sub73340-28022
main73340-28022-03i198608-198708
GRAY,SHADOW GRAY,TRIM1#
sub73340-28022
main73340-28022-06i198808-198711
BROWN,BROWN,TRIM4#
sub73340-28022
73350BELT ASSY, REAR SEAT LAP TYPE, CENTER
main73350-28040-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub73350-28040
sub73350-28041
main73350-28040-04i198308-198508
BLUE,BLUE,TRIM1#
sub73350-28040
sub73350-28041
main73350-28040-06i198508-198608
BROWN,BROWN,TRIM4#
sub73350-28040
sub73350-28041
main73350-28040-14i198508-198608
BLUE,BLUE,TRIM8#
sub73350-28040
sub73350-28041
main73350-28041-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73350-28041
main73350-28041-06i198608-198808
BROWN,BROWN,TRIM4#
sub73350-28041
73530ABELT ASSY, REAR NO.2 SEAT LAP TYPE, RH
main73530-28010-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub73530-28040
main73530-28010-04i198308-198508
BLUE,BLUE,TRIM1#
sub73530-28040
main73530-28011-04i198508-198608
BLUE,BLUE,TRIM8#
sub73530-28040
main73530-28011-06i198508-198608
BROWN,BROWN,TRIM4#
sub73530-28040
main73530-28012-03i198608-198711
GRAY,SHADOW GRAY,TRIM1#
sub73530-28040
main73530-28012-06i198608-198711
BROWN,BROWN,TRIM4#
sub73530-28040
main73530-28040-03i198711-198808
GRAY,GRAY,TRIM1#
sub73530-28040
main73530-28040-06i198711-198808
BROWN,BROWN,TRIM4#
sub73530-28040
73540ABELT ASSY, REAR NO.2 SEAT LAP TYPE, LH
main73540-28010-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub73540-28040
main73540-28010-04i198308-198508
BLUE,BLUE,TRIM1#
sub73540-28040
main73540-28011-04i198508-198608
BLUE,BLUE,TRIM8#
sub73540-28040
main73540-28011-06i198508-198608
BROWN,BROWN,TRIM4#
sub73540-28040
main73540-28012-03i198608-198711
GRAY,SHADOW GRAY,TRIM1#
sub73540-28040
main73540-28012-06i198608-198711
BROWN,BROWN,TRIM4#
sub73540-28040
main73540-28040-03i198711-198808
GRAY,GRAY,TRIM1#
sub73540-28040
main73540-28040-06i198711-198808
BROWN,BROWN,TRIM4#
sub73540-28040
73550BELT ASSY, REAR NO.2 SEAT LAP TYPE, CENTER
main73550-28030-02i198308-198508
WINE,RED/MAROON,TRIM4#
sub73550-28030
sub73550-28031
main73550-28030-04i198308-198508
BLUE,BLUE,TRIM1#
sub73550-28030
sub73550-28031
main73550-28030-06i198508-198608
BROWN,BROWN,TRIM4#
sub73550-28030
sub73550-28031
main73550-28030-14i198508-198608
BLUE,BLUE,TRIM8#
sub73550-28030
sub73550-28031
main73550-28031-03i198608-198808
GRAY,SHADOW GRAY,TRIM1#
sub73550-28031
main73550-28031-06i198608-198808
BROWN,BROWN,TRIM4#
sub73550-28031
9010911009
main90109-11009
9018906018
main90189-06018
9161141020
main91611-41020
9327018016
main93270-18016
9354016012
main93540-16012
9354054014
main93540-54014
9354055016
main93540-55016

24 parts on this diagram · 1 diagram in section
