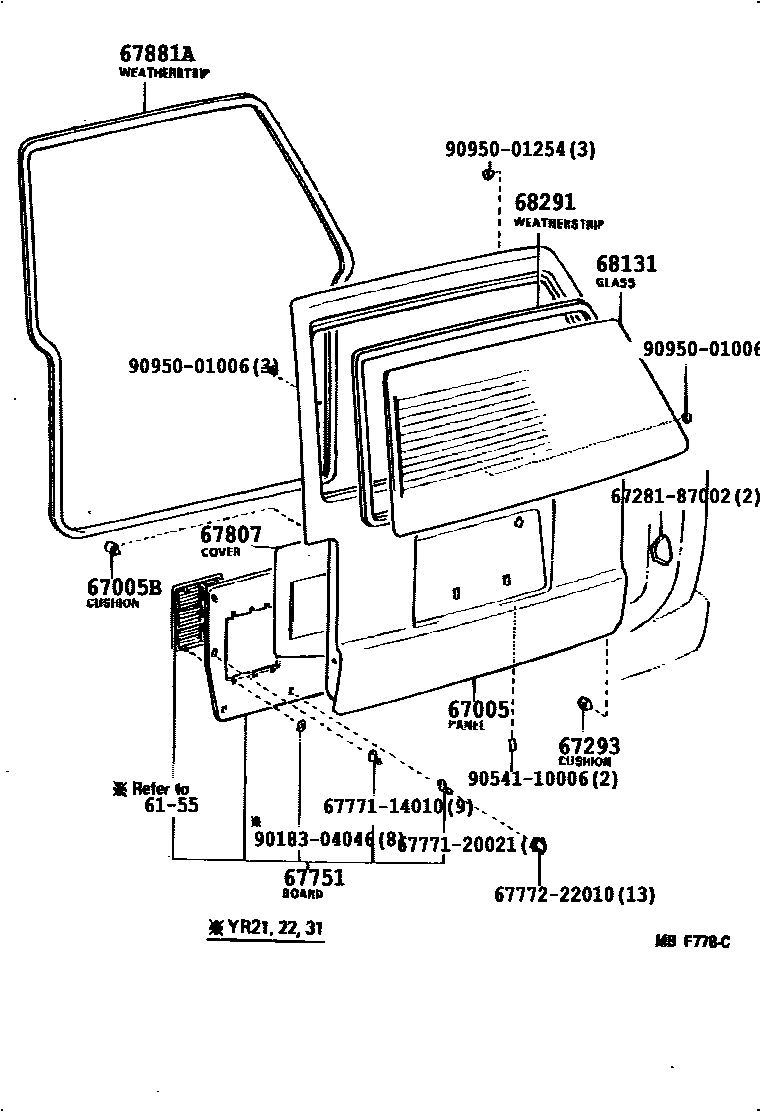

BACK DOOR PANEL & GLASS

6155

67005PANEL SUB-ASSY, BACK DOOR

main67005-28030iYR21..LE198308-198508

W/*RW

sub67005-28080

main67005-28040iYR21..LE198308-198508

sub67005-28070

main67005-28050iYR27,29,32..USA198308-198808

W/*RW

main67005-28060iYR27,29,32..USA198308-198808

main67005-28070iYR27,29,32..CND198311-198808

main67005-28080iYR27,29,32..CND198408-198808

W/*RW

main67005-28090iYR22,31..DLX198508-198808

main67005-28100iYR22,31..DLX198508-198808

W/*RW

main67005-28110iYR22,31..LE198508-198808

main67005-28120iYR22,31..LE198508-198808

W/*RW

67005BCUSHION(FOR BACK DOOR PANEL)

main90541-09029iYR2#,3#198308-198808

67293CUSHION, BACK DOOR LOWER STOPPER

main90541-09031iYR2#,3#198308-198808

67751BOARD, BACK DOOR TRIM

main64780-28010iYR27,29,32..CND198311-198808

main64780-28020iYR27,29,32..USA198402-198808

main64780-87001iYR21..DLX198308-198408

BEIGE

main64780-87001-03iYR22,31..DLX198708-198808

GRAY,GRAY,TRIM1#

sub64780-87001

main64780-87001-15iYR21..DLX198408-198508

BEIGE,BEIGE,TRIM4#

sub64780-87001

main64780-87001-25iYR22,31..DLX198508-198808

BEIGE,BEIGE,TRIM4#

sub64780-87001

main64780-87002-03iYR21,22,31..LE198308-198808

GRAY,GRAY,TRIM1#,8#

sub64780-87002

main64780-87002-05iYR21..LE198308-198408

BEIGE,BEIGE,TRIM4#

sub64780-87002

main64780-87002-15iYR21..LE198408-198508

BEIGE,BEIGE,TRIM4#

sub64780-87002

main64780-87002-35iYR22,31..LE198508-198808

BEIGE,BEIGE,TRIM4#

sub64780-87002

67807COVER SUB-ASSY, BACK DOOR SERVICE HOLE

main67807-87003iYR2#,3#198308-198808

67881AWEATHERSTRIP, BACK DOOR

main67881-87002iYR21,27198308-198511

main67881-87006iYR2#,3#198511-198808

sub67881-87010

68131GLASS, BACK DOOR

main68105-28010iYR2#,3#..LE,STD198508-198808

*EHT,T=4.0,GRAY,*EHT,T=4.0,GRAY

main68105-87004iYR27198308-198508

*EHTT,T=4.0,*EHTT,T=4.0

sub68105-87013

main68105-87006iYR27198308-198508

*EHT,T=4.0,*EHT,T=4.0

sub68105-87012

main68105-87010iYR21..LE198308-198508

*EHT,T=4.0,BRONZE,BRONZE,*EHT,T=4.0

sub68105-87014

main68105-87012iYR29,3#198508-198808

*EHT,T=4.0,*EHT,T=4.0

sub68105-87013

main68105-87013iYR22,31198508-198808

*EHTT,T=4.0,*EHTT,T=4.0

main68105-87014iYR29,32..USA198508-198808

*EHTT,T=4.0,BRONZE,BRONZE,*EHT,T=4.0

main68131-28020iYR29,32198508-198808

*TEM,T=4.0,GRAY,*TEM,T=4.0,GRAY

main68131-87006iYR27,29,32198311-198808

*TEM,T=4.0,*TEM,T=4.0

sub68105-87012

main68131-87007iYR27..USA198402-198808

*TT,T=4.0,*TT,T=4.0

sub68105-87013

main68131-87017iYR27..USA198408-198508

*TEM,T=4.0,BRONZE,BRONZE,*TEM,T=4.0

sub68105-87014

68291WEATHERSTRIP, BACK DOOR GLASS

main68291-87004iYR2#,3#198308-198808

6728187002PLATE, BACK DOOR STOPPER

main67281-87002

6777114010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-14010

6777120021WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-20021

6777222010WEATHERSTRIP, BACK DOOR TRIM, LH

main67772-22010

9018304046

main90183-04046

9054110006

main90541-10006

9095001006

main90950-01006

9095001254

main90950-01254

17 parts on this diagram · 1 diagram in section
