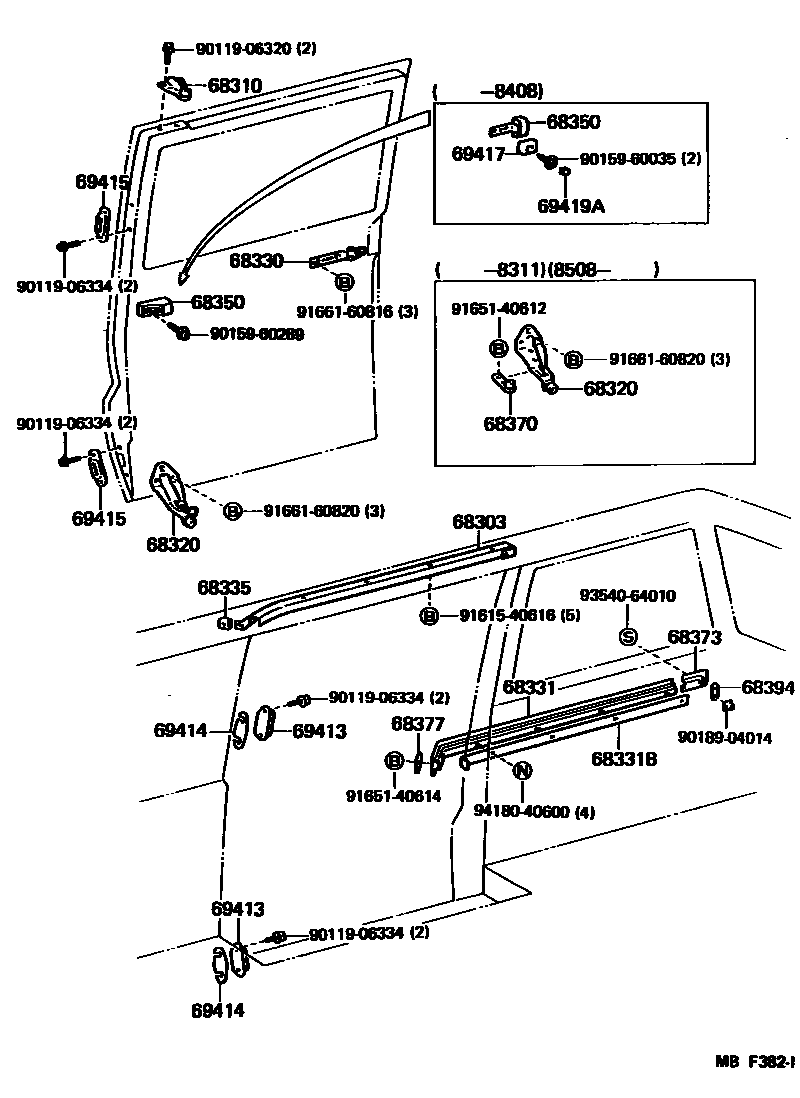

SLIDE ROLLER & RAIL

68303RAIL SUB-ASSY, SLIDE DOOR, UPPER

main68308-87001iYR2#,3#¥2,900198308-198808

68310ROLLER ASSY, SLIDE DOOR, UPPER

main68310-87001iYR2#,3#¥2,020198308-198808

68320ROLLER ASSY, SLIDE DOOR, LOWER

main68350-87001iYR2#,3#¥3,210198308-198808

main68350-87002iYR2#¥3,050198311-198508

68330ROLLER ASSY, SLIDE DOOR, CENTER

main68330-87001iYR2#¥5,700198308-198408

sub68330-87002¥5,800

main68330-87002iYR2#,3#¥5,800198408-198808

68331RAIL, SLIDE DOOR, CENTER

main68303-87001iYR2#,3#¥11,600198308-198808

sub68303-87002¥11,500

68331BPAD, SLIDE DOOR CENTER RAIL

main68367-87002iYR2#,3#¥270198308-198808

68335PAD, SLIDE DOOR UPPER RAIL

main69243-87002iYR2#,3#¥330198308-198808

68350STOPPER ASSY, SLIDE DOOR OPEN

main69418-87001iYR2#¥1,920198308-198408

main69418-87003iYR2#,3#¥2,500198408-198808

68370ROLLER ASSY, SLIDE DOOR, LOWER SUB

main68370-87001iYR21¥1,450198308-198808

sub68350-87002¥3,050

sub68360-87002¥3,050

68373MOULDING, SLIDE RAIL END, RH

main68373-87001iYR2#,3#¥1,200198308-198808

68377PAD, SLIDE DOOR CENTER RAIL, FRONT

main68377-87001iYR2#,3#¥170198308-198808

68394PROTECTOR, SLIDE RAIL END MOULDING

main68394-87002iYR21¥390198308-198309

69413STOP, SLIDE DOOR DOWN MALE

main69416-87001iYR2#,3#..DLX,STD¥1,350198308-198808

sub69416-87002¥1,460

main69416-87001iYR27,29,32..USA¥1,350198402-198808

W/*EL

sub69416-87002¥1,460

69414SHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iYR21,22,31..LE¥130198308-198808

main69418-95700iYR27,29,32..USA¥130198402-198808

W/*EL

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-87001iYR21,22,31..LE¥1,470198308-198808

main69415-87001iYR27,29,32..USA¥1,470198402-198808

W/*EL

69417COVER, SLIDE DOOR OPEN STOP

main69417-87001-03iYR21..LE198308-198408

GRAY,GRAY,TRIM1#

main69417-87001-05iYR2#198308-198408

BEIGE,BEIGE,TRIM4#

69419APLUG, SLIDE DOOR OPEN STOP COVER

main69419-87001-03iYR21..LE198308-198408

GRAY,GRAY,TRIM1#

main69419-87001-05iYR2#198308-198408

BEIGE,BEIGE,TRIM4#

9011906320

main90119-06320¥130

9011906334

main90119-06334¥120

9015960035

main90159-60035¥80

9015960289

main90159-60289¥70

9018904014

main90189-04014¥120

9161540616

main91615-40616¥140

9165140612

main91651-40612¥70

9165140614

main91651-40614¥160

9166160816

main91661-60816¥130

9166160820

main91661-60820¥130

9354064010

main93540-64010¥110

9418040600

main94180-40600¥90

29 parts on this diagram · 1 diagram in section
